4 - 69
REAR SHOCK ABSORBER

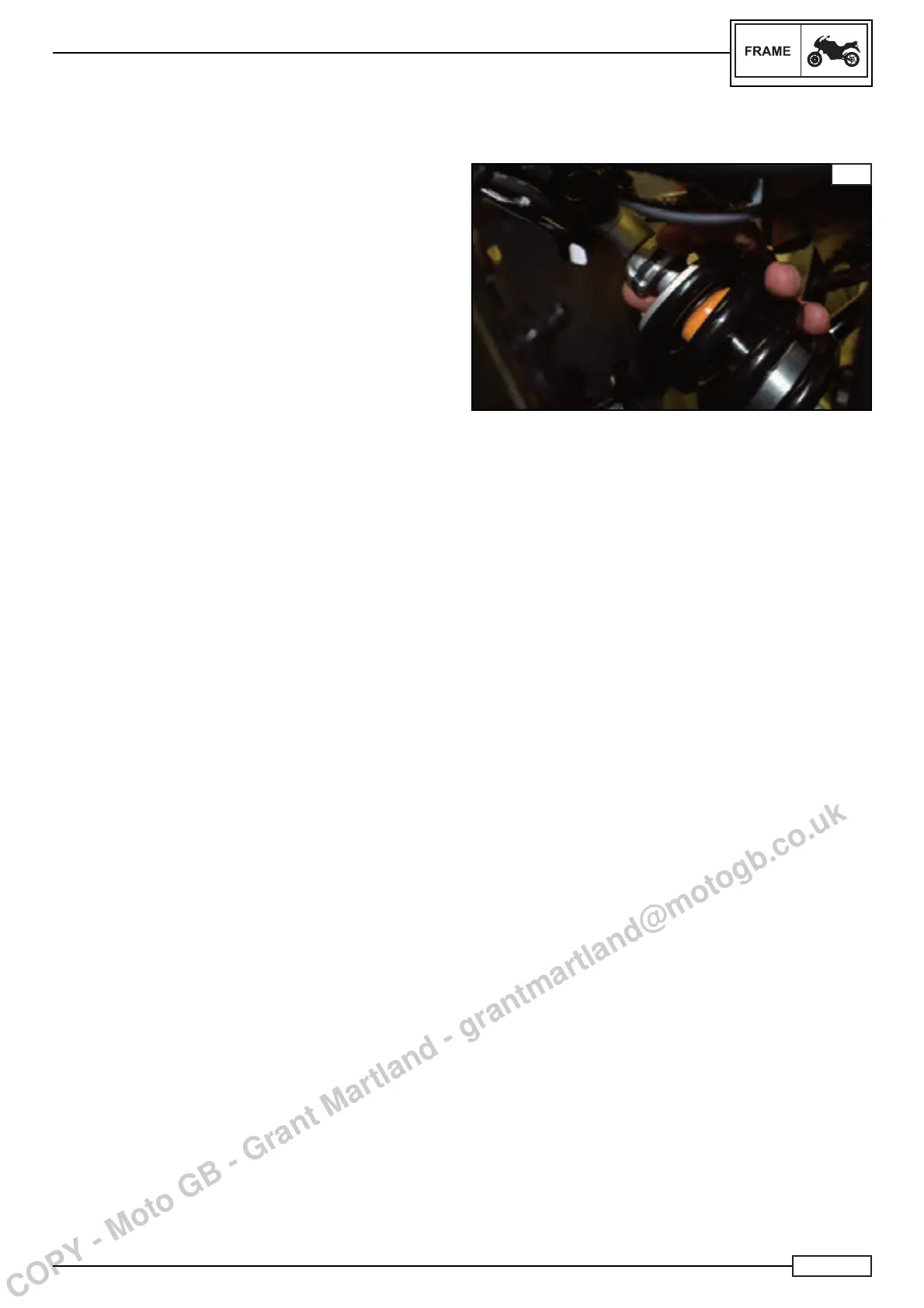

REAR SHOCK ABSORBER CHECK
Check:
• Rear shock absorber rod
]If there is any warping/damage, replace the rear shock absorber
assembly.
• Rear shock absorber
]If there is any gas/oil leak, replace the rear shock absorber as-
sembly.
• Spring
]If there is any damage/wear, replace the rear shock absorber
assembly.
• Bushing
If there is any damage or wear, replace.
• Dust seal
If there is any damage or wear, replace.
• Screws
If there is any warping/damage/signs of wear, replace.
