Benelli TRK 502 Service Station Manual

5 - 32

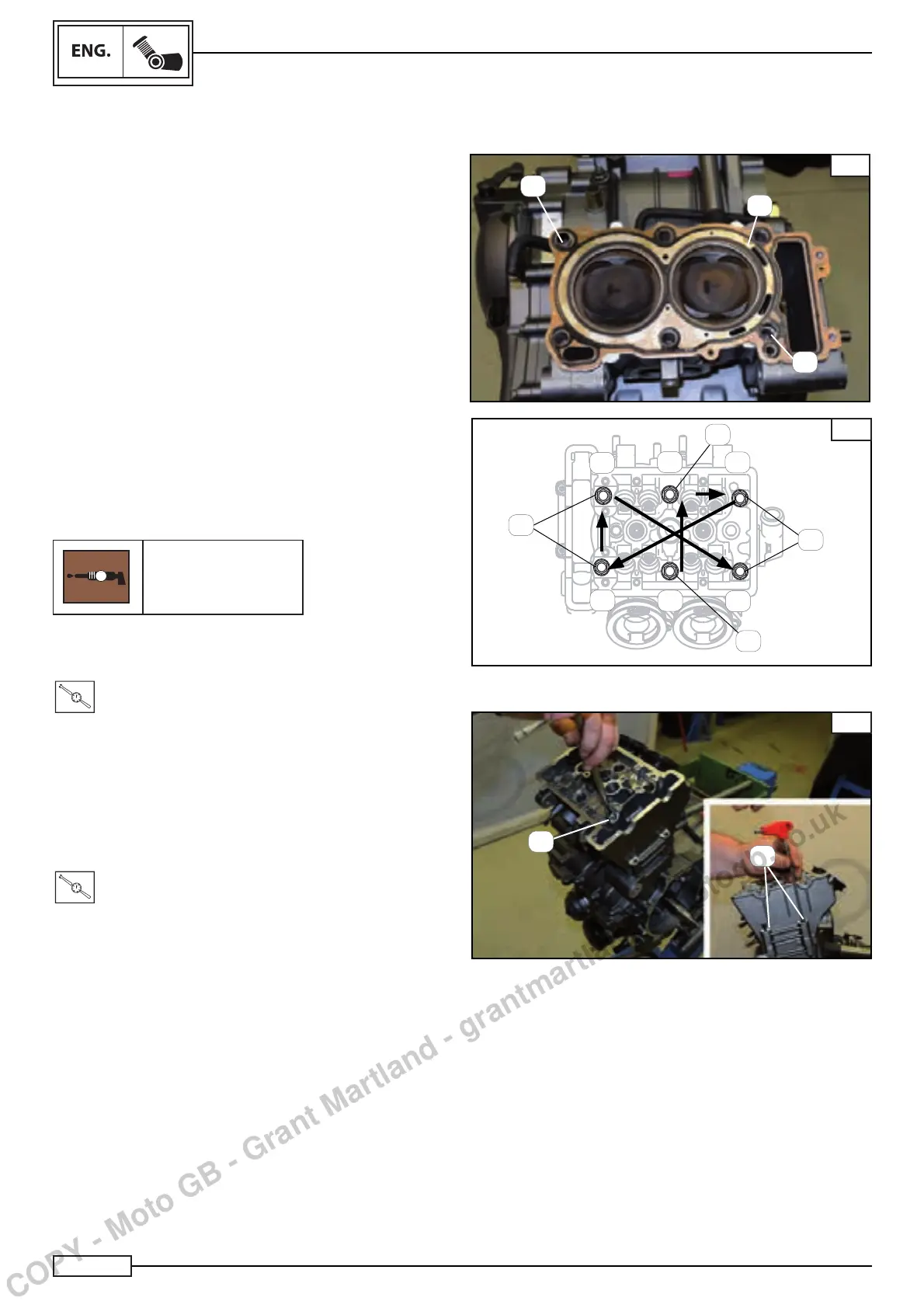

HEAD INSTALLATION
E
Before assembling the head, replace the seals (2).
Make sure that the alignment dowels (1) are in position Fig. C.
• Position the head and tighten the screws (3), following the
sequence stated in Fig. D.
• Then the screws (4) Fig.
NOTE:_________________________________
During assembly of the head. lubricate the head screws
with copper grease.
G
Copper grease
Tighten:
• the screws (8) Fig. D to torque in three steps:
T
.
R
.
Step one:
Torque 12.5 N*m
Step two:
Torque 25 N*m
Step three:
Torque 55 N*m
Tighten:
• the screws (4) Fig. E to torque.
T
.
R
.
Torque 12 N*m
To assemble the head, tighten the fastening screws (3) Fig. E,
after the screws (4) Fig.
NOTE:_________________________________
During assembly of the head. lubricate the head screws
with copper grease.
3
4
C
2
1
1
HEAD DISTRIBUTION
D
1
2
3
4
5
6
8
8
8
8
