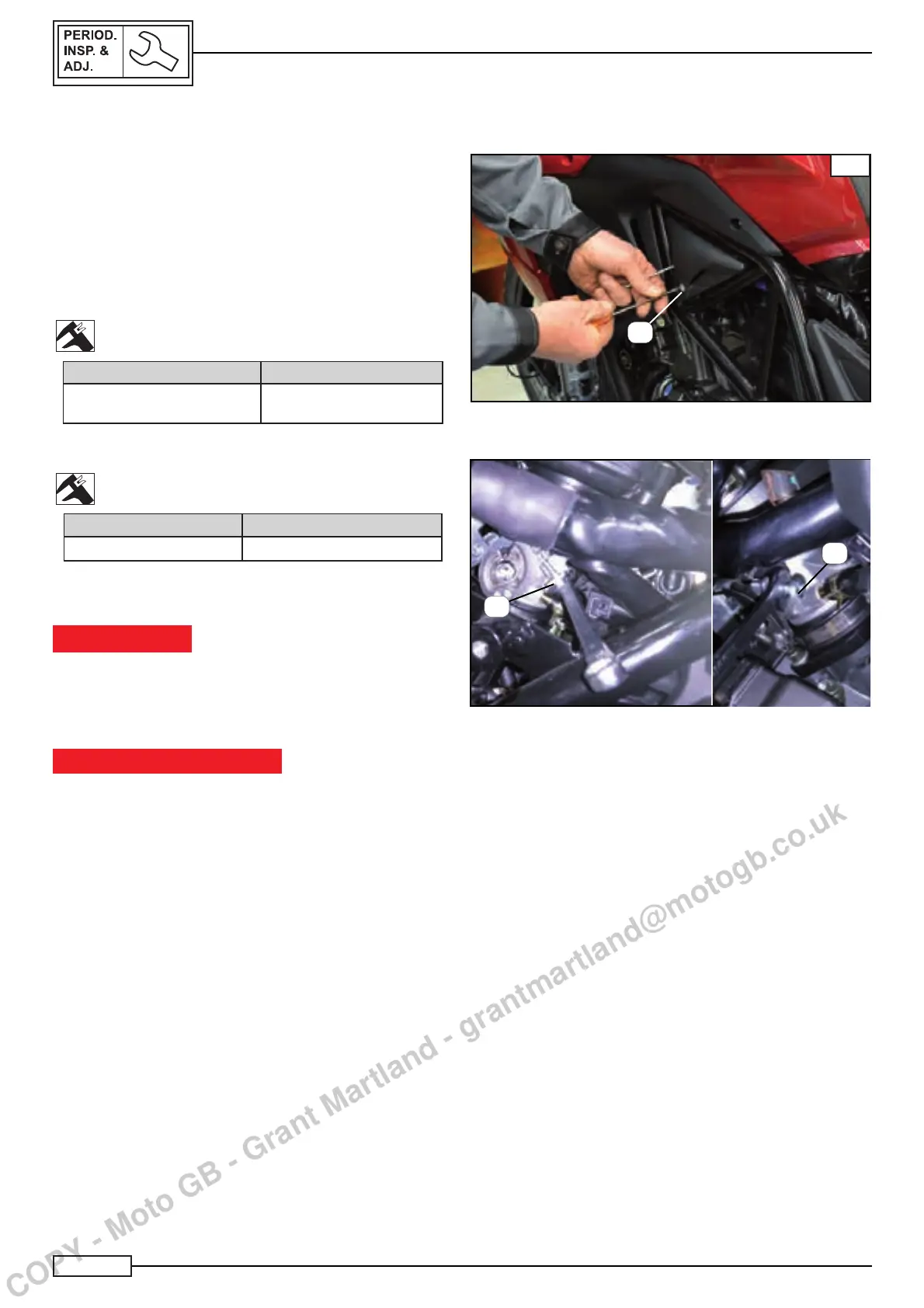

3 - 14
ENGINE/THROTTLE CABLE CLEARANCE
ADJUSTMENT OF IDLE SPEED
Check:
Start the engine and warm it up.
Extract the left, side guard by loosening the screw ”A” Fig.
A.
Loosen lock nut “B” and rotate the adjusting screw ”C” to
obtain the correct idle speed. Fig. B
Accelerate and decelerate a few times to make sure the idle
speed is within the indicated range. Adjust again, if neces-
sary.
Throttle cable clearance mm
Throttle cable clearance on
the accelerator grip)
3 ~ 5 mm (0.11 ~ 0.19 in)
Idle speed rpm
STANDARD
1,400 -1,600
WARNING
If the handlebar movement leads to variations in the idle
speed, the throttle cables may be adjusted or routed improp-
erly or be damaged.
Correct these anomalies before use.
IMPORTANT NOTICE
The use of the vehicle with damaged cables or improperly
adjusted/routed may jeopardize
the driving safety.
A
B
A
B
C
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
