Benelli TRK 502 Service Station Manual

5 - 72

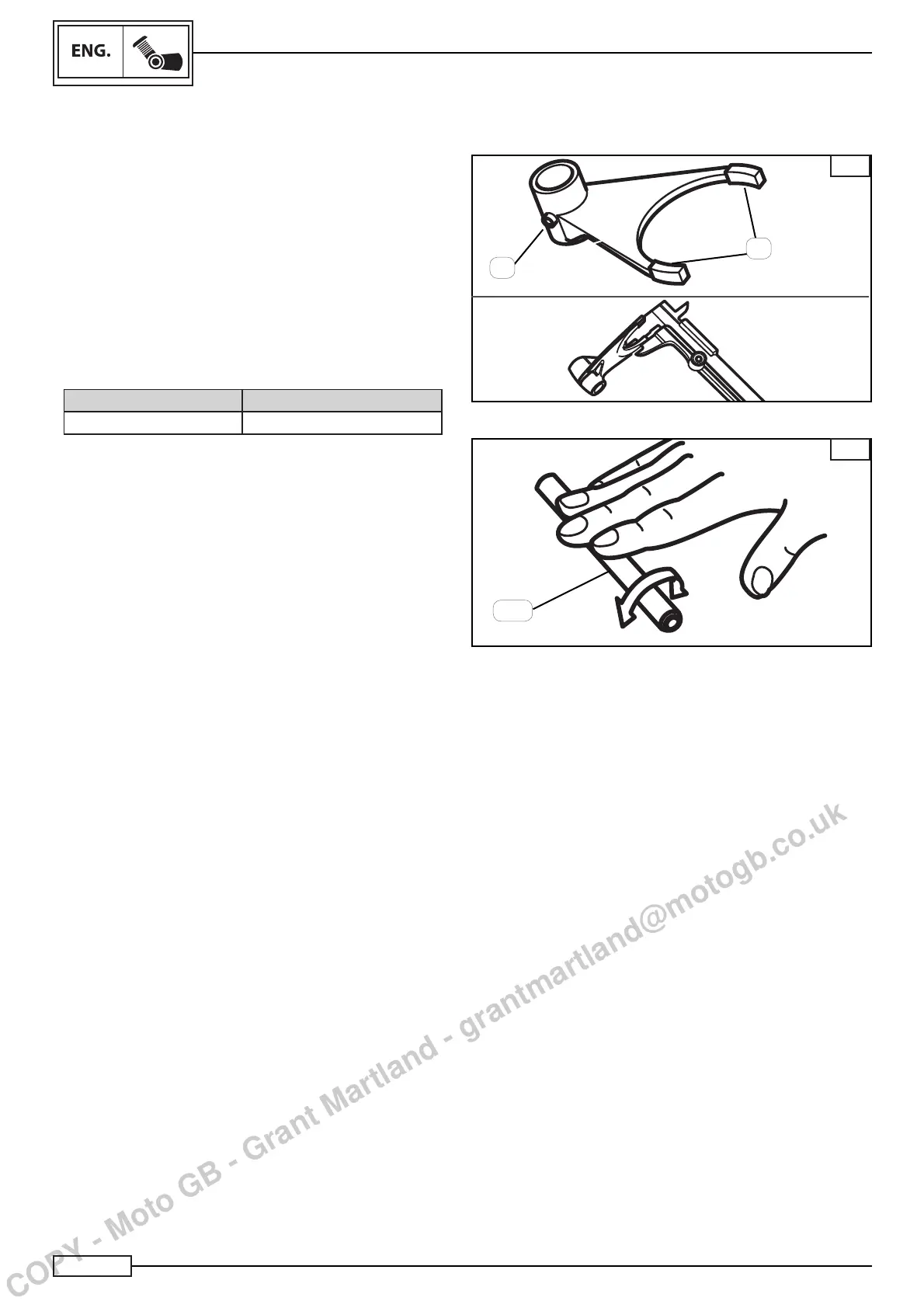

GEAR SHIFT CONTROL
G
A
B
H
GEAR BOX
Measure:
The following procedure is applied to all gear shift control rods
(1). G.
Check:
• the follower of the gear shift control rod cam (A)
• The tooth of the gear shift control rod (B)
If there is warping/damage/lines/traces of wear, replace the gear
shift control rod .
Measure:
• the thickness of the gear shift control rod, using a slide
gauge.
Part Size
Gear shift control rod 5.85 ± 0.05 mm
Check:
• The guide pin of the gear shift control rod (23*)
Roll the guide pin of the gear shift control rod on a fl at surface
Fig. H
If there is any warping, replace.
NOTE:________________________________
Do not try to straighten the control rod guide if it is warped.
NOTE:_________________________________
Numbers marked (*) are part of the spare parts table in
Chapter 5 “Gears”.
23*
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
