Benelli TRK 502 Service Station Manual

ELE. - 32
DEVICES

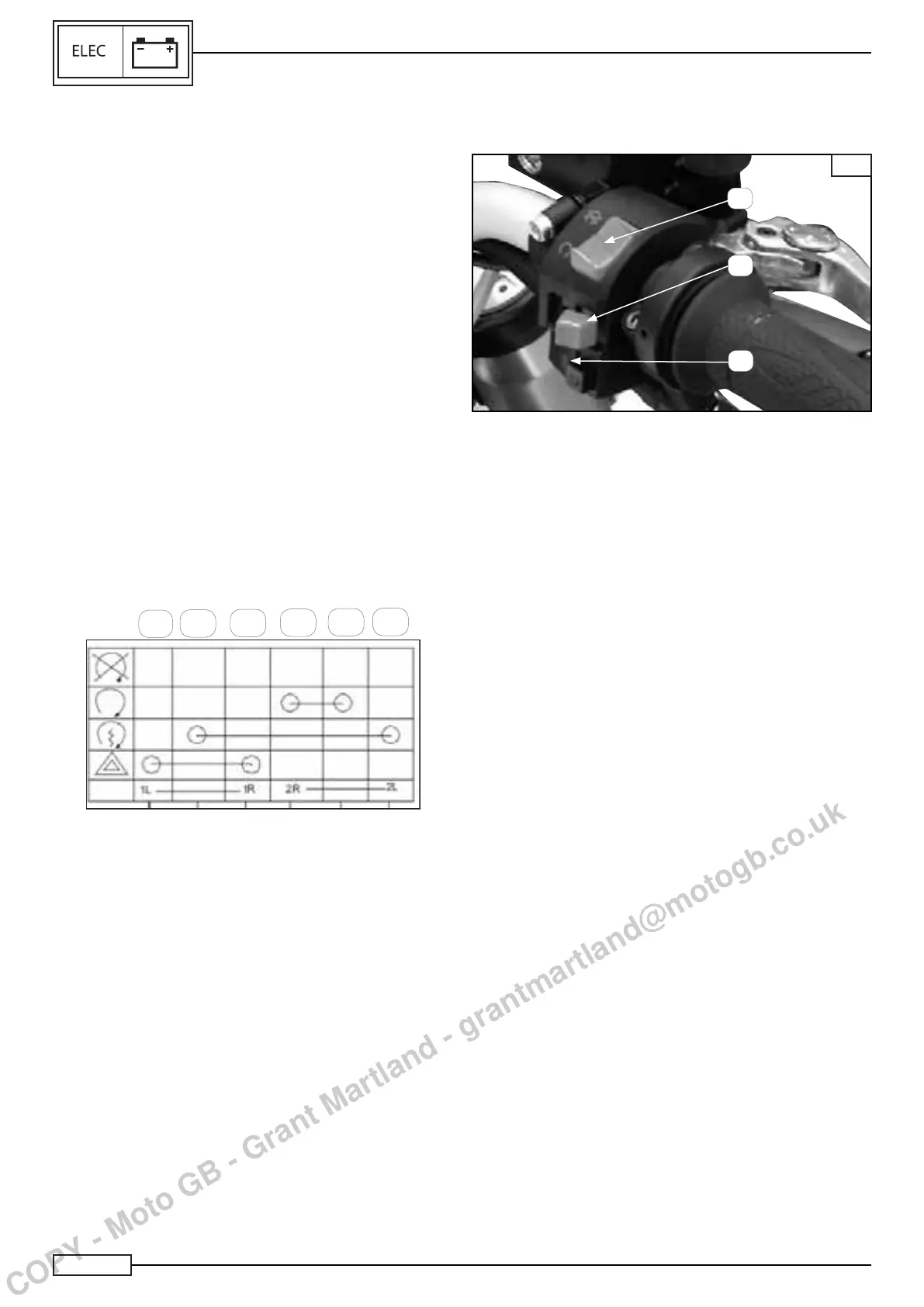

RIGHT ELECTRIC DEVICE
It is situated on the right side of the handlebar Fig. 1. The right
electric device consists of:
• RUN/OFF button (A)
it serves to break contact to the electric device in
case of emergency.
• Ignition button (C)
it serves to start the engine.
• Hazard lights switch (B)
it serves to activate the hazard lights in case of emer-
gency.
Check:
• The continuity
by positioning the multitester on RUN/OFF button located on
ON.
Check:
• The continuity
by positioning the multitester on the ignition button pressed on
ON.
Check:
• The continuity
by positioning the multitester on the hazard lights switch located
on ON.
Refer to the table.
1
A
B
C
AR/BL
AR/GR
N
R
MR/GR
VE/GL
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
