4 - 14

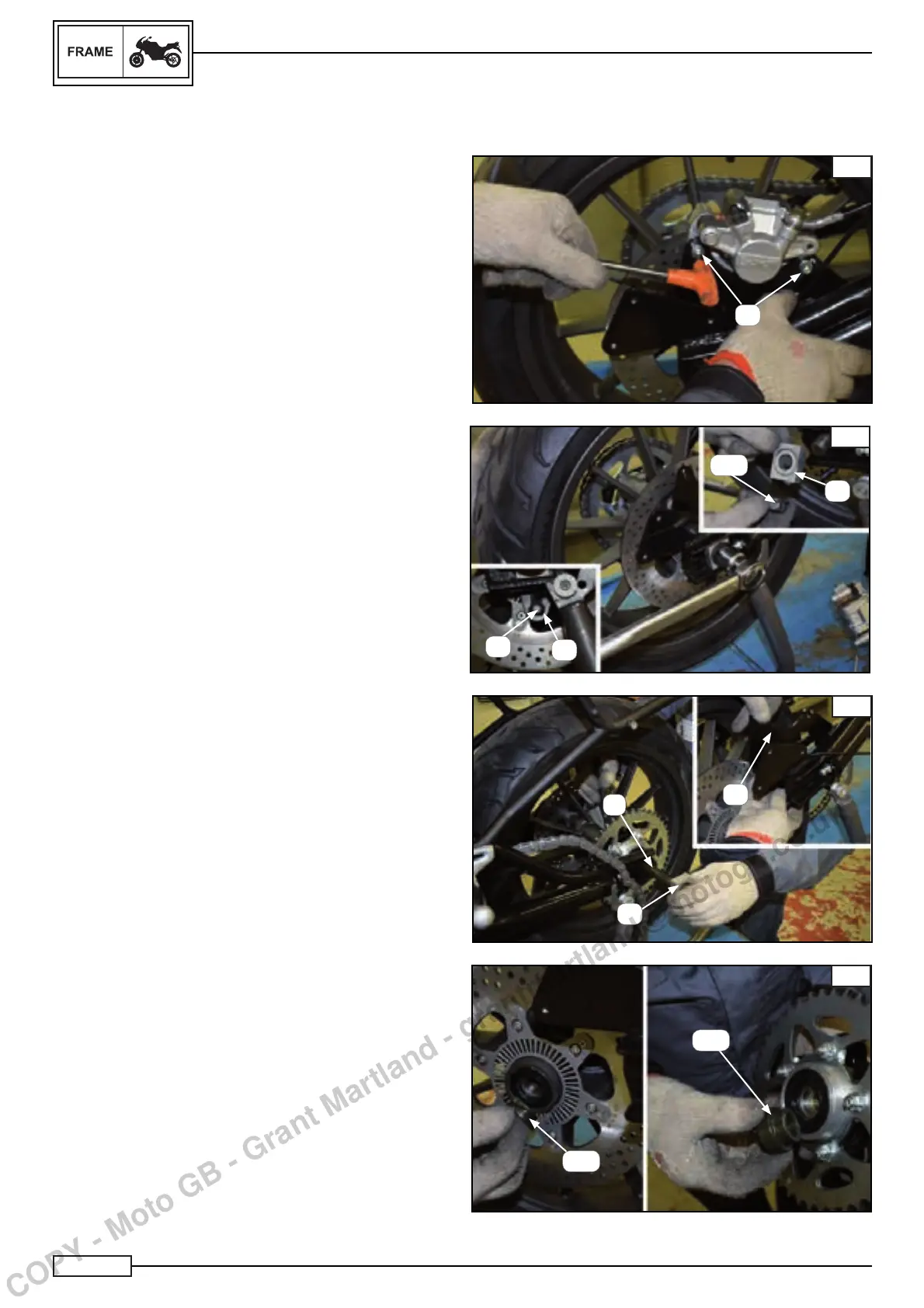

REAR WHEEL AND BRAKE DISC
REAR WHEEL REMOVAL
Park:
The bike on a level surface
NOTE:_________________________________
Place the bike on a suitable support so that the rear wheel
is raised.
Remove:
• the xing screws (A) of the brake calliper Fig. A
Detach:
the brake calliper.
Remove:
the screws (C) Fig. B
the phonic wheel sensor (B) Fig. B
The nut (21*)
the pin (1*)
the register slide (D) Fig. C
NOTE:_________________________________
During this phase, be careful in separating the components
such as the chain tensioner register on the crown wheel side
and the brake disc side and brake calliper support plate ”E”
Fig. C.
Remove:
The bush (20*) Fig. D
the spacer (2*) Fig. D
NOTE:_________________________________
The numbers marked (*) are a part of the “Rear wheel and
brake disc” table.
A
B
C
A
B
9*
D
1*
D
E
D
2*
20*
C
