4 - 140
TANK

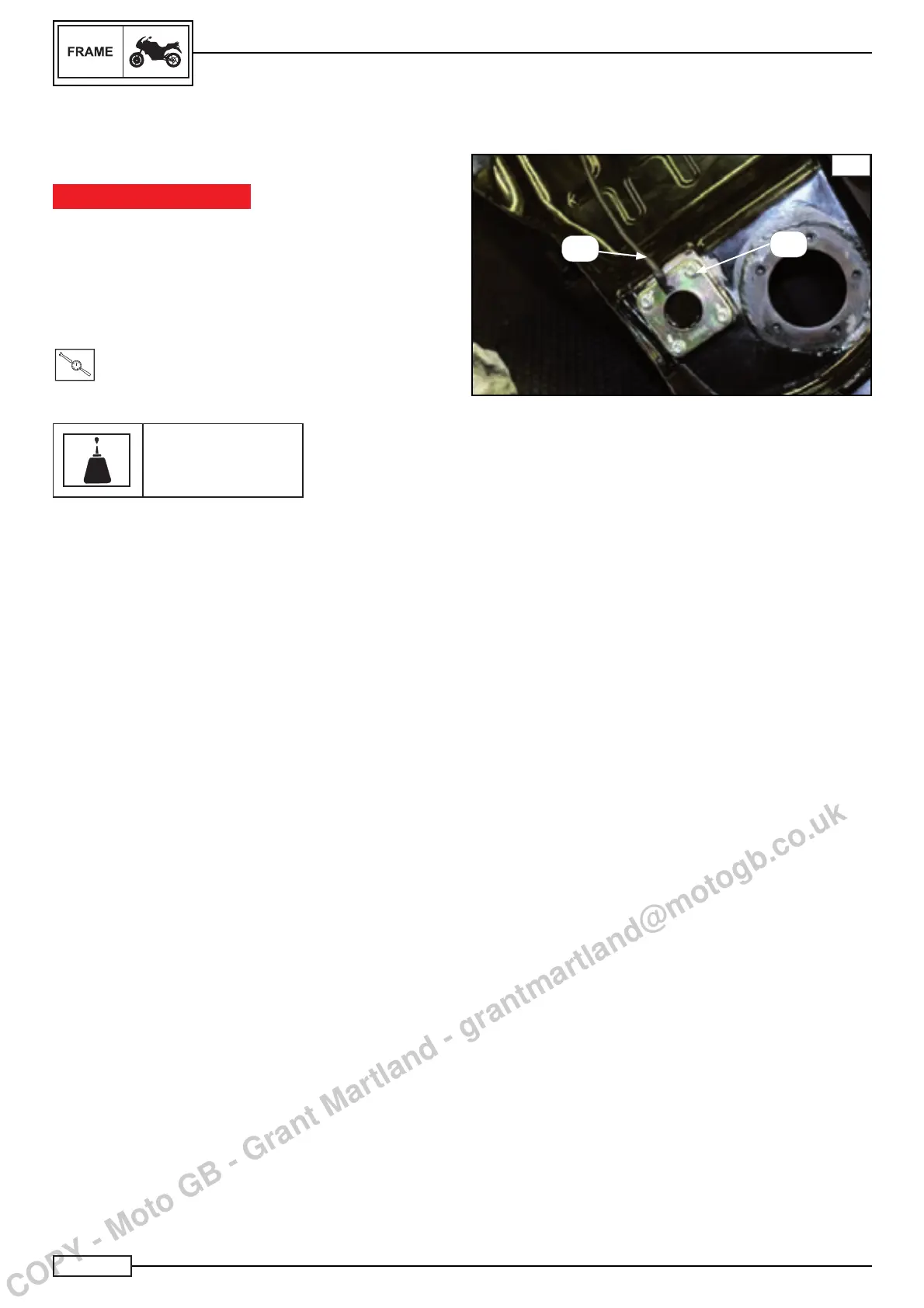

INSTALLATION OF THE TANK FUEL LEVEL SENSOR
B
18*
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Install:
Proceed using the opposite order to removal.
Tighten:
the screws (18*) Fig. A
to the following torque:
T
.
R
.
Torque 10 N*m
Use Loctite thread locker to secure.
Loctite 243
NOTE:_________________________________
At the moment of reassembly, insert the sensor with the con-
necting lead (A) pointing upwards Fig. B
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Tank”, paragraph “Tank parts”.
A
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
