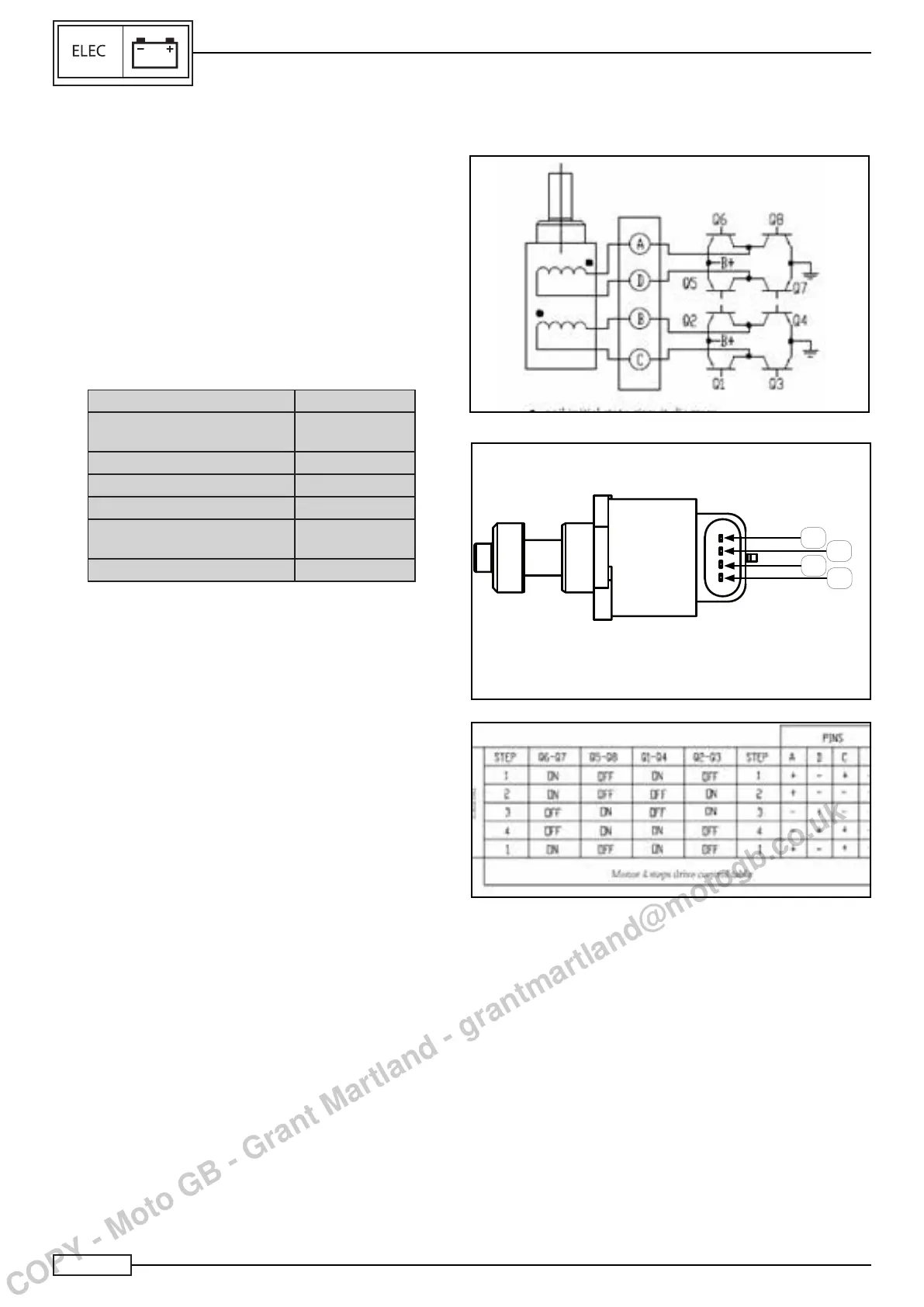

ELE. - 48
Thesystemissituatedinsidetheairltercase,containsavalve
forcheckingairowunderneaththethrottledbodythrottlesand
is equipped with a stepper motor.
The system controls the following parameters:
• Idle speed
• Air supply in case of engine overspeed
• Adjustment of air/fuel ratio by working at idle speed at
altitudes above sea level.
• Adjustment of air/fuel ratio in cold/hot setting-off.
When the stepper motor is activated, it opens the valve that
controlstheairowandallowsacertainairowtorunoffalong
a series of hoses in the throttled body unit.
Operating voltage 12V DC
Minimum /maximum operat-
ing voltage
14V DC/ 7.5V
DC
Impedance per coil (27°C) 53±5.3Ω
Minimum impedance
35Ω
Distance 0.04167 mm
Maximum travel
8.5 mm (204
steps)
Resonant frequency range 70-120 pps
A
ACTUATORS
IDLE AIR CONTROL SYSTEM (STEPPER)
B
C
D
