3 - 20
ENGINE/SPARK PLUGS

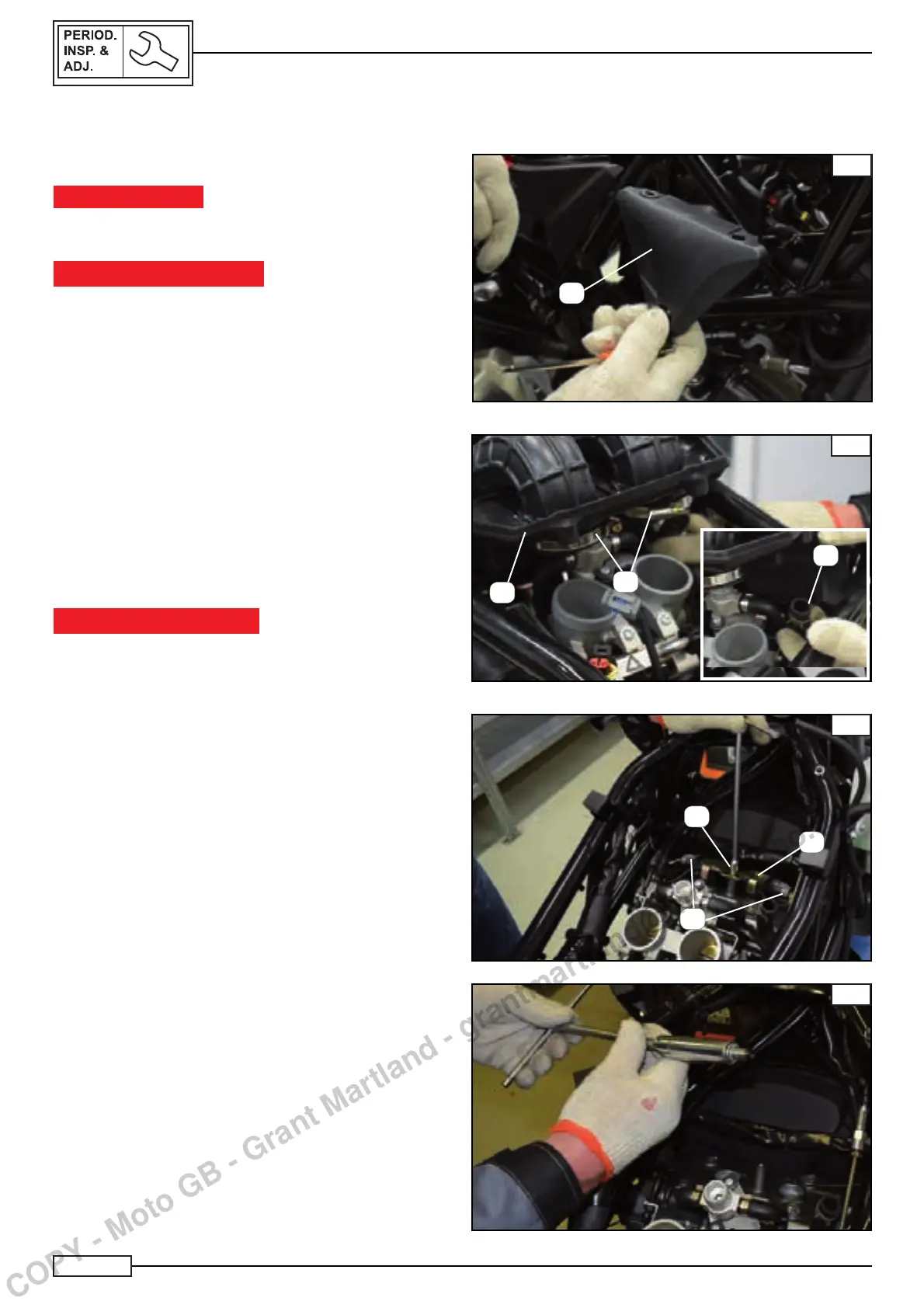

REMOVAL OF SPARK PLUGS ON THE VEHICLE
The following procedure applies to all of the spark plugs.
WARNING
Replace and check the spark plugs when the engine is cold.
Park the motorcycle on a level surface.
IMPORTANT NOTICE
Prop the motorcycle on suitable supports so that it cannot
fall.
Remove:
Rider and passenger seats, see chapter “Removal of rider
and passenger seats, Chapter 4”.
Movable windscreen, see chapter “Removal of movable
windscreen, Chapter 4”.
Front fairing, see chapter “Removal of front fairing, Chap-
ter 4”.
Tank fairing, see chapter “Removal of tank fairing, Chap-
ter 4”.
Tank, see chapter “Fuel tank removal, Chapter 4”.
The two side guards “A” (left and right) Fig. A.
Loosen the claps of the two rubber sleeves “B” Fig. B.
Disconnect the breather hose “C” from the lter casing.
• Release the lter box “D”.
IMPORTANT NOTICE
Before disassembly of spark plug, remove any dirt from the
groove of the seats with a stream of compressed air to pre-
vent it from falling into cylinders.
Remove:
The screw (E)
The bracket (F)
Disconnect:
The coil connectors (G) Fig. C
The two rubber tips and the O-rings.
Slide out:
The coil and the spark plug underneath Fig. D
A
B
A
B
D
C
C
E
F
G
D
