Benelli TRK 502 Service Station Manual

3 - 52
ELECTRICAL SYSTEM

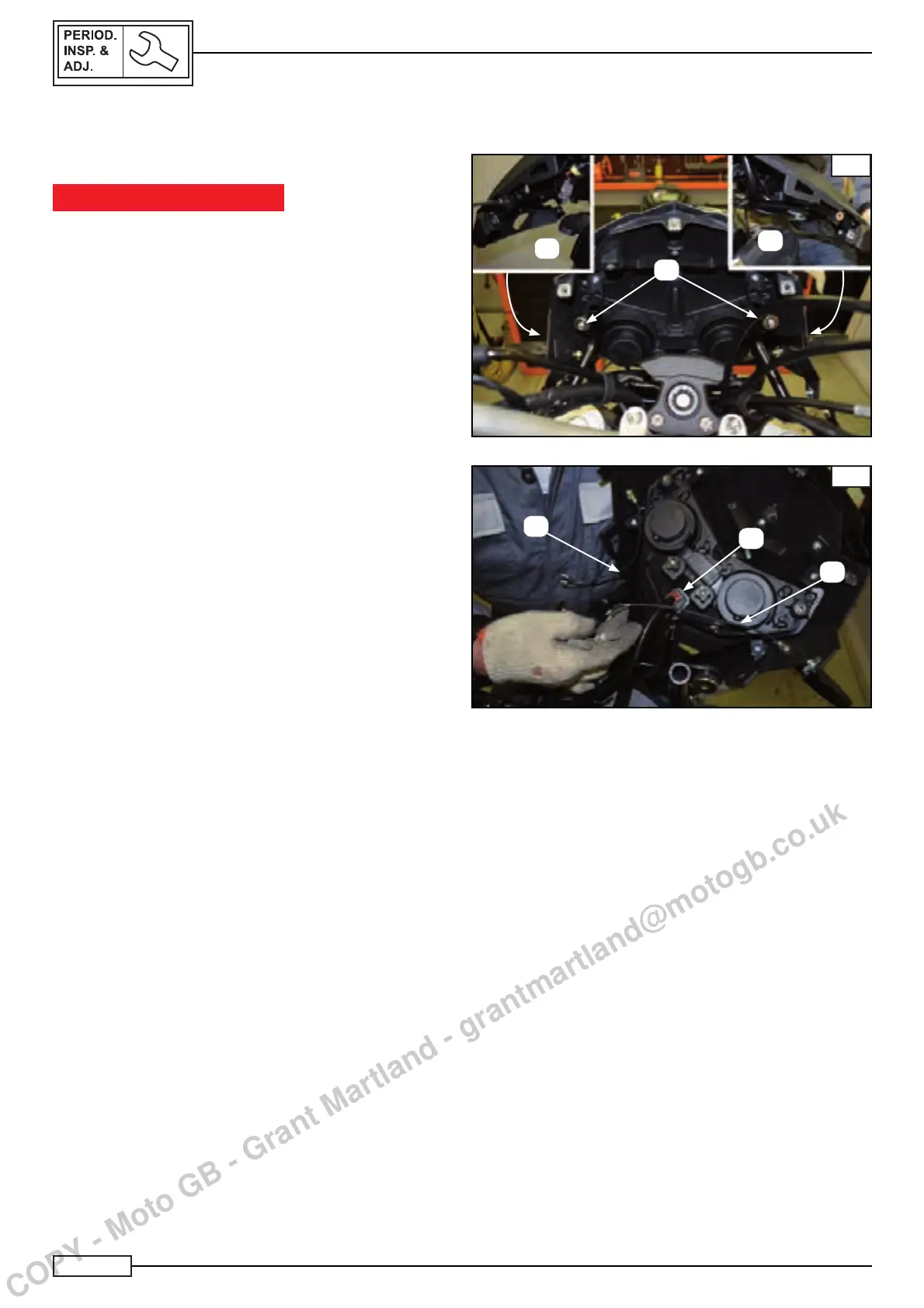

REMOVAL OF THE FRONT HEADLIGHT
Place the motorcycle on a fl at, level fl oor.
IMPORTANT NOTICE
Prop the motorcycle on suitable supports so that it cannot
fall.
The vehicles’ front headlight is a LED light. If it needs to be
replaced, carry out the following procedure:
Remove:
• The mobile windscreen, refer to chapter “Removal of mo-
bile windscreen, Chapter 4”.
• Front fairing, see chapter “Removal of front fairing, Chap-
ter 4”.
• Instrumentation panel plate, refer to chapter “Removal of
the instrumentation panel plate, Chapter 4”.
• side locking screws “D”
• front locking screws “E” Fig. C.
Disconnect:
• the connector of the LED headlight “F”
• the cables of the right and left front indicator lights “G”. Fig.
D.
C
D
D
E
D
F
G
G
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
