DISTRIBUTION CHAIN INSTALLATION
HEAD DISTRIBUTION
Insert:

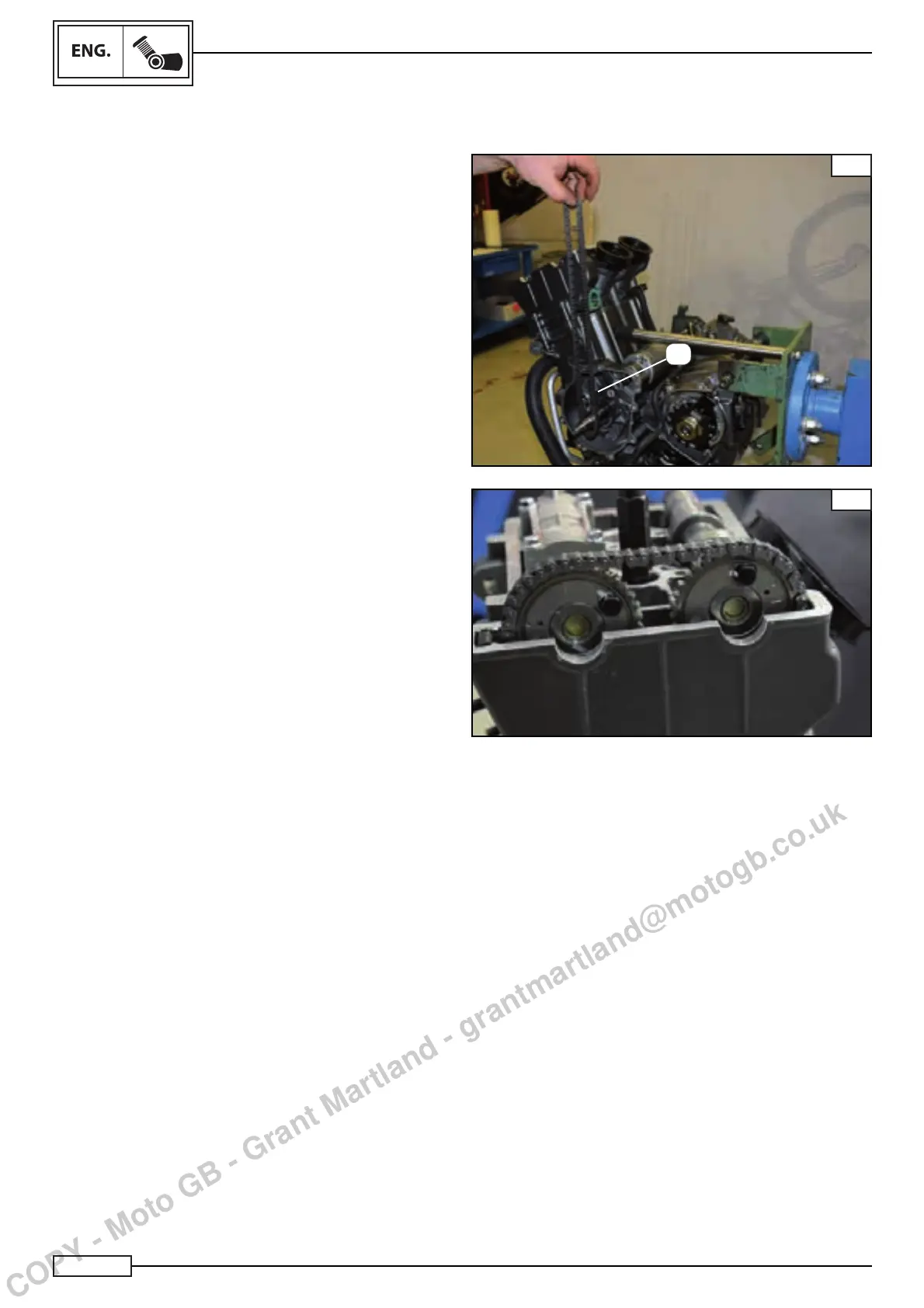

• the timing chain (1) in to the camshaft pinion, as in Fig. A
• Insert the fi xed and mobile chain tensioner slides, see
chapter“Timing chain assembly”.
• The two camshafts, making sure that both are installed with
the phasing references “aligned” with the fl oor” as in Fig. B.
NOTE:_________________________________
Assembly of the timing chain must always take into account
the fact that the motor must be in the TDC condition Fig. B,
see chapter entitled “installation of intake camshaft.
(*) Engine tuning tool
Code: R180197022000
NOTE:_________________________________
During this operation, it is necessary to lubricate the chain
and timing gears with engine oil.
NOTE:_________________________________
Every time that the chain is replaced, it is also necessary to
replace the slides.
