5 - 6
COILS AND SPARK PLUGS ASSEMBLY
HEAD DISTRIBUTION
4
C
D

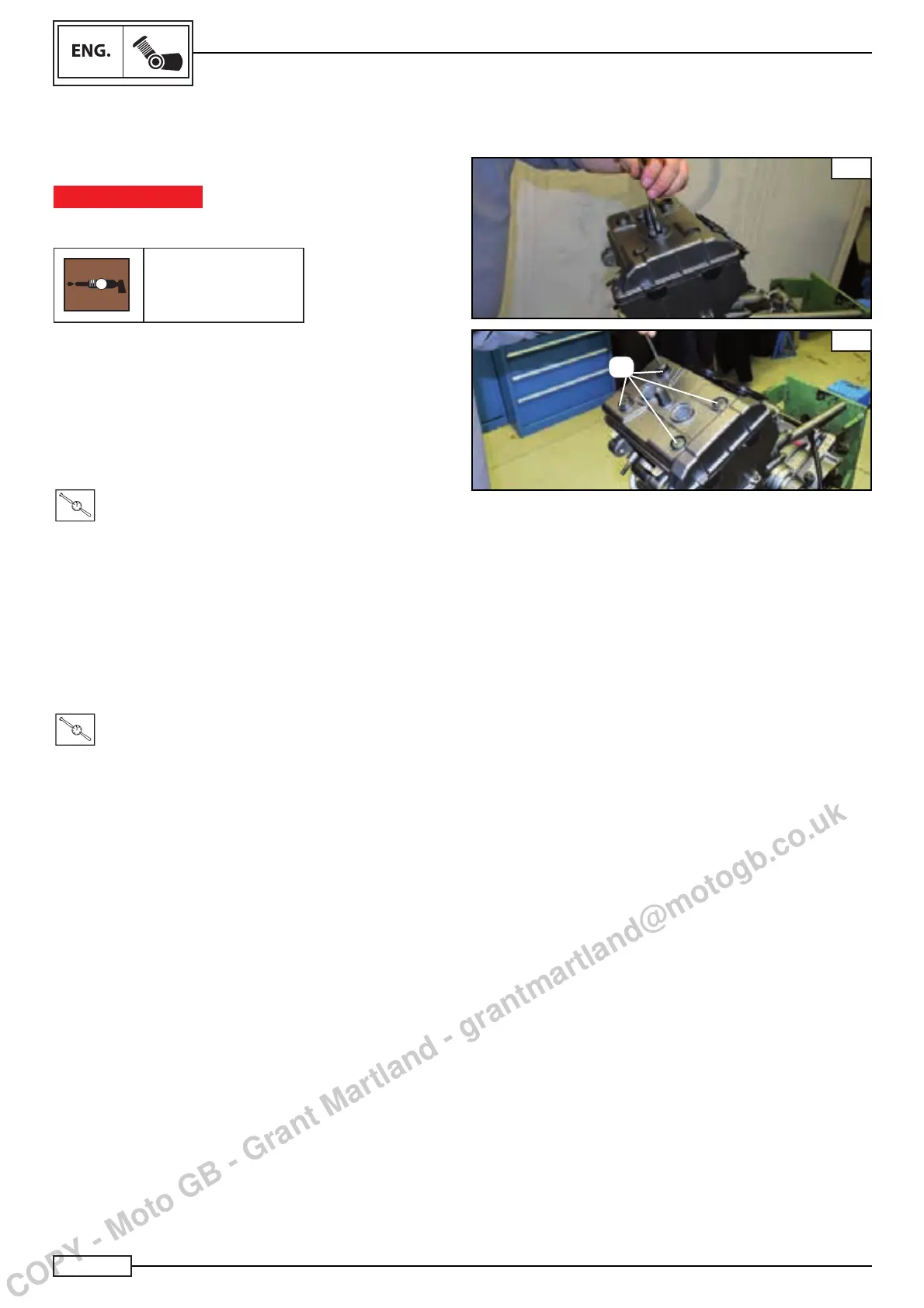

The procedure applies to all of the spark plugs Fig.C.
WARNING
Lubricate the spark plug threads with copper grease.
G
Grease
NOTE:__________________________________________
Before installing it, clean the spark plug and surface in
contact with the seal.
Install:
the spark plug to the head, tightening it by hand until it
comes into contact with the base of the head. Tighten to
torque.
T
.
R
.
Torque 12 N*m
Install:
The rubber tips (2*)
the OR seals (3*) Fig. D
the coils (1*) Fig.
the screws (6*)
the washers (7*)
the brackets (8*) Fig.
Tighten to torque.
T
.
R
.
Torque 10 N*m
NOTE:_________________________________
Numbers marked (*) are part of the spare parts tables in
Chapter 5 “Engine”, section entitled “Timing gear cover
removal”.
