Benelli TRK 502 Service Station Manual

3 - 15

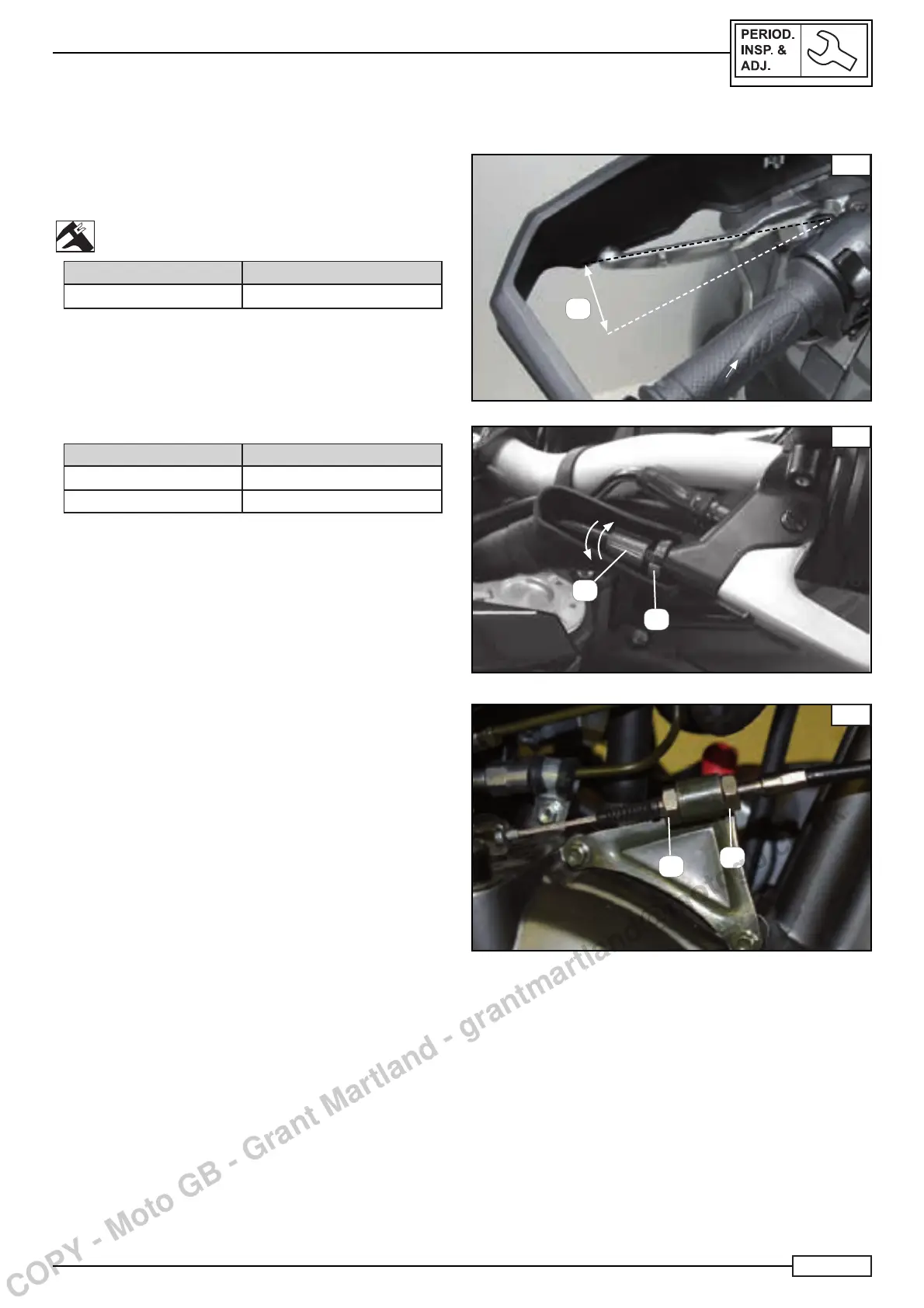

ENGINE/CLUTCH CABLE
ADJUSTMENT OF CLUTCH CABLE CLEARANCE
A
B
Check:
• the clutch cable clearance (A)
If outside specifi cations, adjust.
Clutch cable clearance Gap (clearance)
Clutch handle
3 - 4 mm
Adjust:
• the clutch cable clearance
Handlebar side
1. Move the clutch cable cowling.
2. Loosen the ring nut “C”.
3. Rotate the adjuster “C” clockwise or counter-clockwise up to
the specifi ed clutch cable clearance. Fig. B
Clutch cable clearance Clearance
Clockwise
The gap is increased
Anticlockwise The gap is decreased
4. Tighten the ring nut “C”.
NOTE:___________________________________________
If the specifi
ed clearance of the clutch cable cannot be ob-
tained on the handlebar side, use the adjusting nut on the
engine side ”E”. Fig. C
1. Prise the dust seal in the middle of the clutch cable.
2. Loosen the lock nut “F” in the middle of the clutch cable.
3.
Rotate the adjusting nut “E” to obtain the correct clearance.
A
B
C
C
E
F
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
