Benelli TRK 502 Service Station Manual

4 - 5

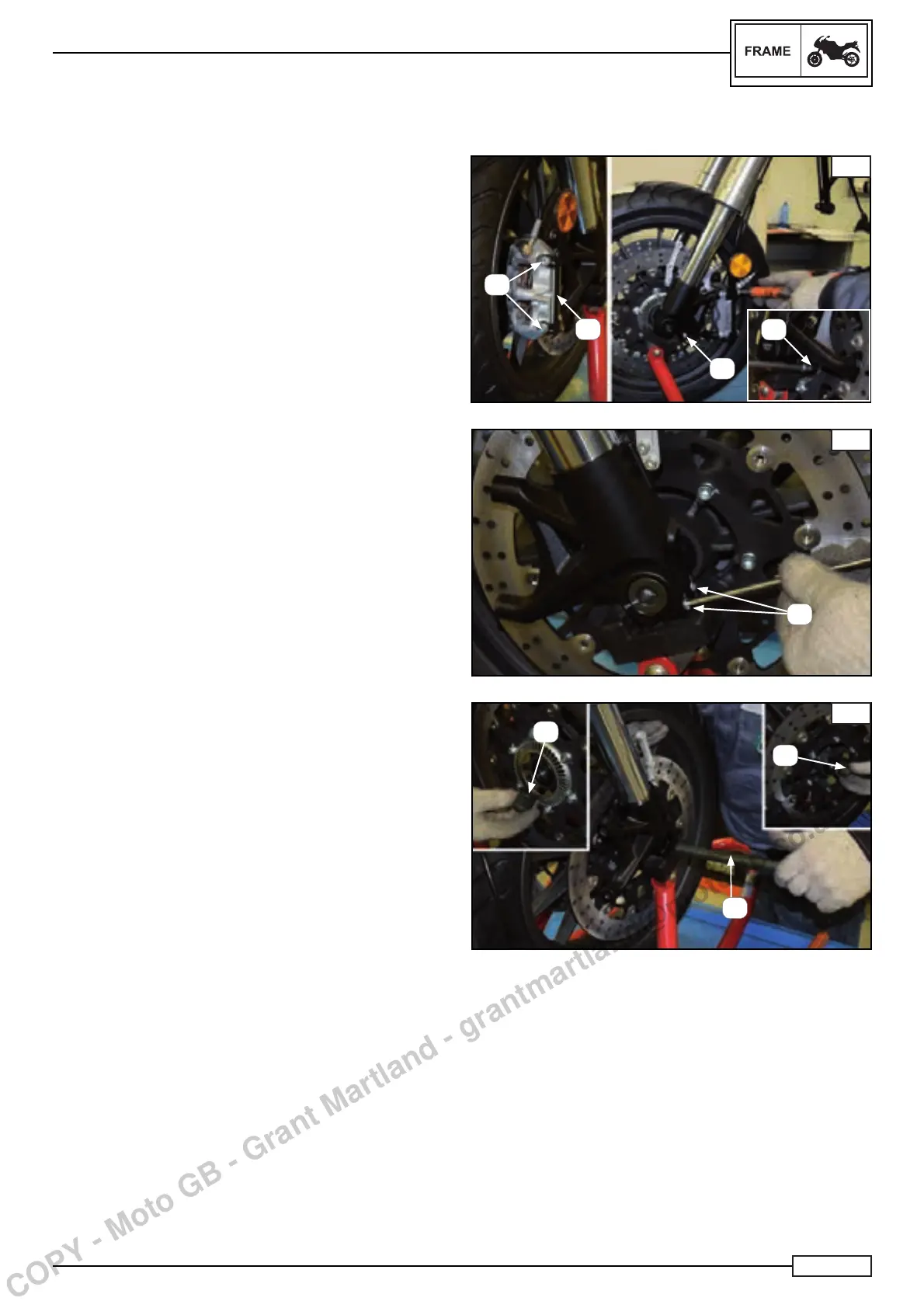

FRONT WHEEL AND BRAKE DISCS
FRONT WHEEL REMOVAL
A
Park:
• The bike on a level surface
NOTE:_________________________________
Place the bike on a suitable support so that the front wheel
is raised.
Remove:
• The screw (E)
• the ABS sensor “A”
• the screws “B”
• tube guide bracket (C) Fig. A
Detach:
• the left front calliper
NOTE:_________________________________
Repeat the above-mentioned procedure for the opposite
front brake calliper.
NOTE:_________________________________
Do not pull the front brake lever while removing the callipers.
Loosen:
• the setscrews “B” Fig. B
Remove:
• the front wheel pin “C” Fig. C
• front wheel
• The left shim “D” Fig. C
• The spacer “E”, Fig. C
B
B
B
C
C
D
A
C
E
E
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
