Benelli TRK 502 Service Station Manual

3 - 31
FRAME/CHECKING HOSES OF THE BRAKING SYSTEM

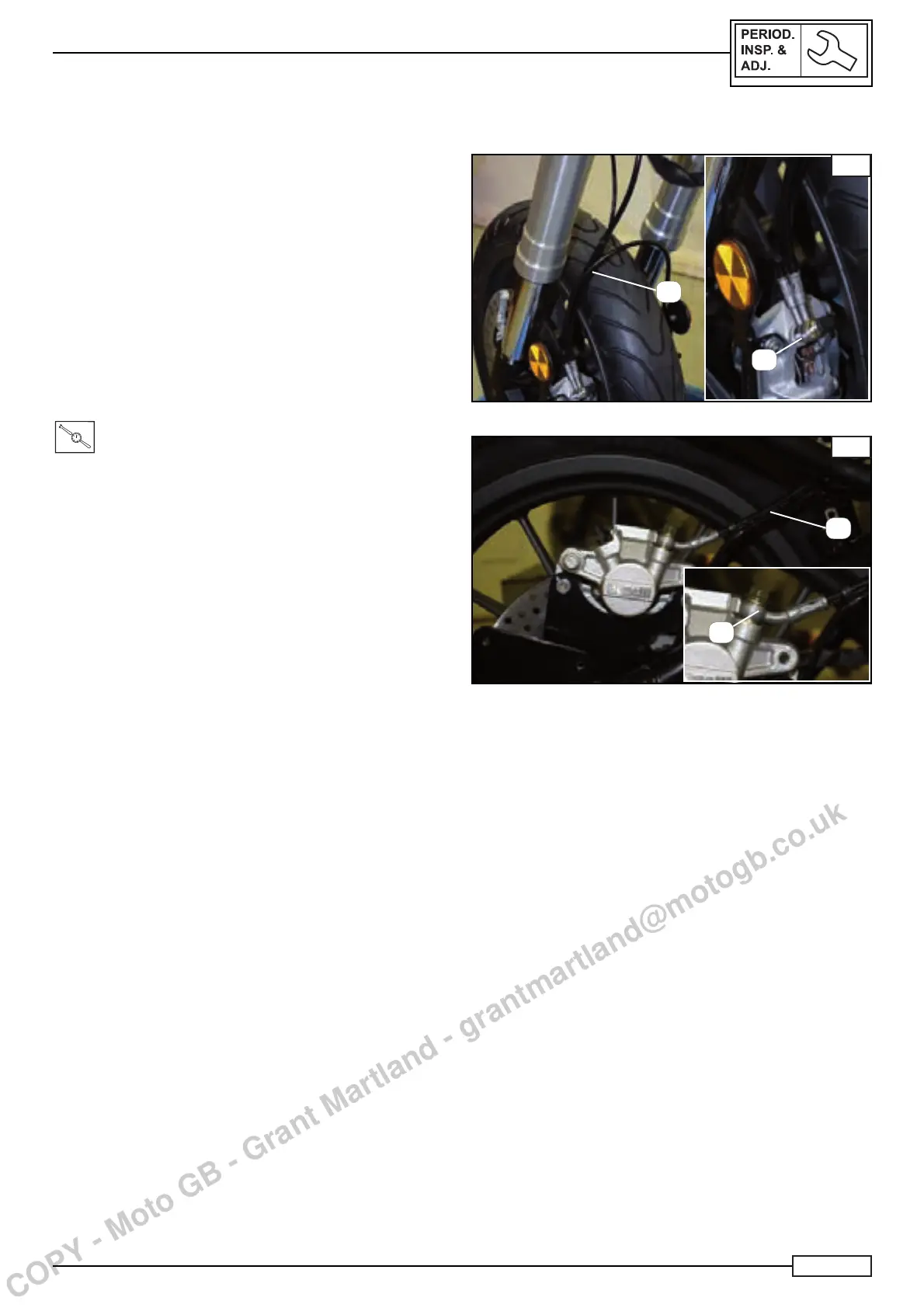

HOSE CHECK
The following procedure applies to all brake hoses and brake
hose clamps.
Check:
• the path of the hose of the front “A” and rear “B” brake.
If there is any cracking/damage/wearing trace, replace.
Check:
• The hose clamp of the front brake ”C” Fig. A. If loosened,
tighten the clamp bolt.
Check:
• The hose clamp “D” of the rear brake Fig. B. If loosened,
tighten the clamp bolt.
T
.
R
.
Torque 25 N*m
Keep:
• The motorcycle in a upright position.
Activate:
• The brake several times.
Recheck:
• The brake hose. If there is any brake fl uid leakage, replace
the damaged hose.
B
A
B
A
C
D
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
