3 - 26
FRAME/BRAKE ADJUSTMENT

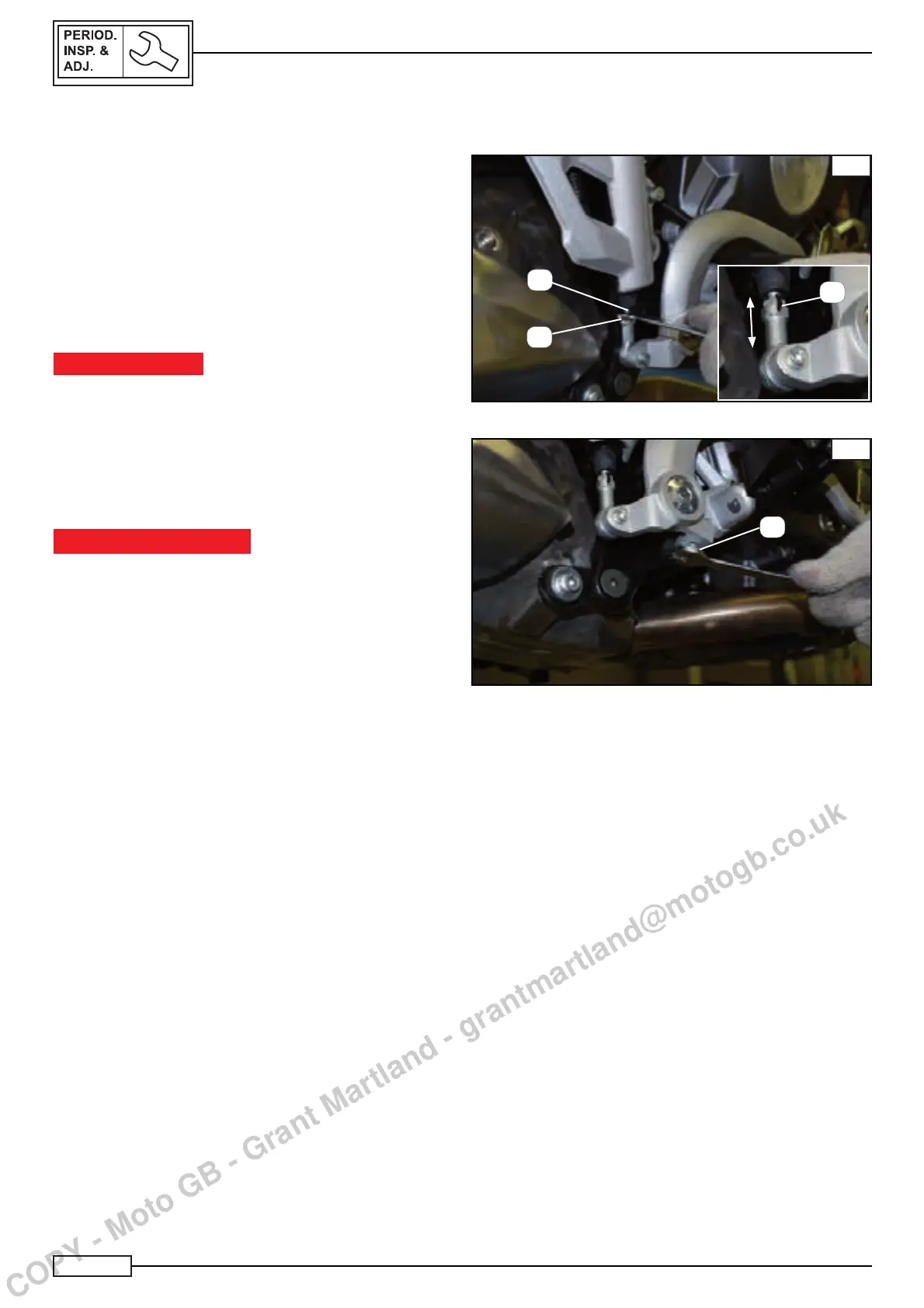

ADJUSTMENT OF THE REAR BRAKE
Adjust:
the brake pedal position Fig. A
Loosen the locknut “A”.
Screw off the lock nut “B”.
Screw up o screw off the threaded pin ”E” to increase or
reduce the rear brake control clearance Fig. A.
Tighten:
the nut “A”
Tighten the lock nut “B”.
WARNING
If the brake lever is soft or spongy to the touch, there might
be air in the braking system. Before using the vehicle, it is
necessary to exhaust air by bleeding the braking system.
The presence of air in the braking system signi cantly re-
duces the system performance and ultimately may cause a
loss of control of the motorcycle and accidents.
Therefore, check and exhaust air in the braking system, if
necessary.
IMPORTANT NOTICE
After adjusting position of the brake pedal, make sure that
there is no brake sticking.
A
A
B
B
B
E
