Benelli TRK 502 Service Station Manual

4 - 56
ABS
37

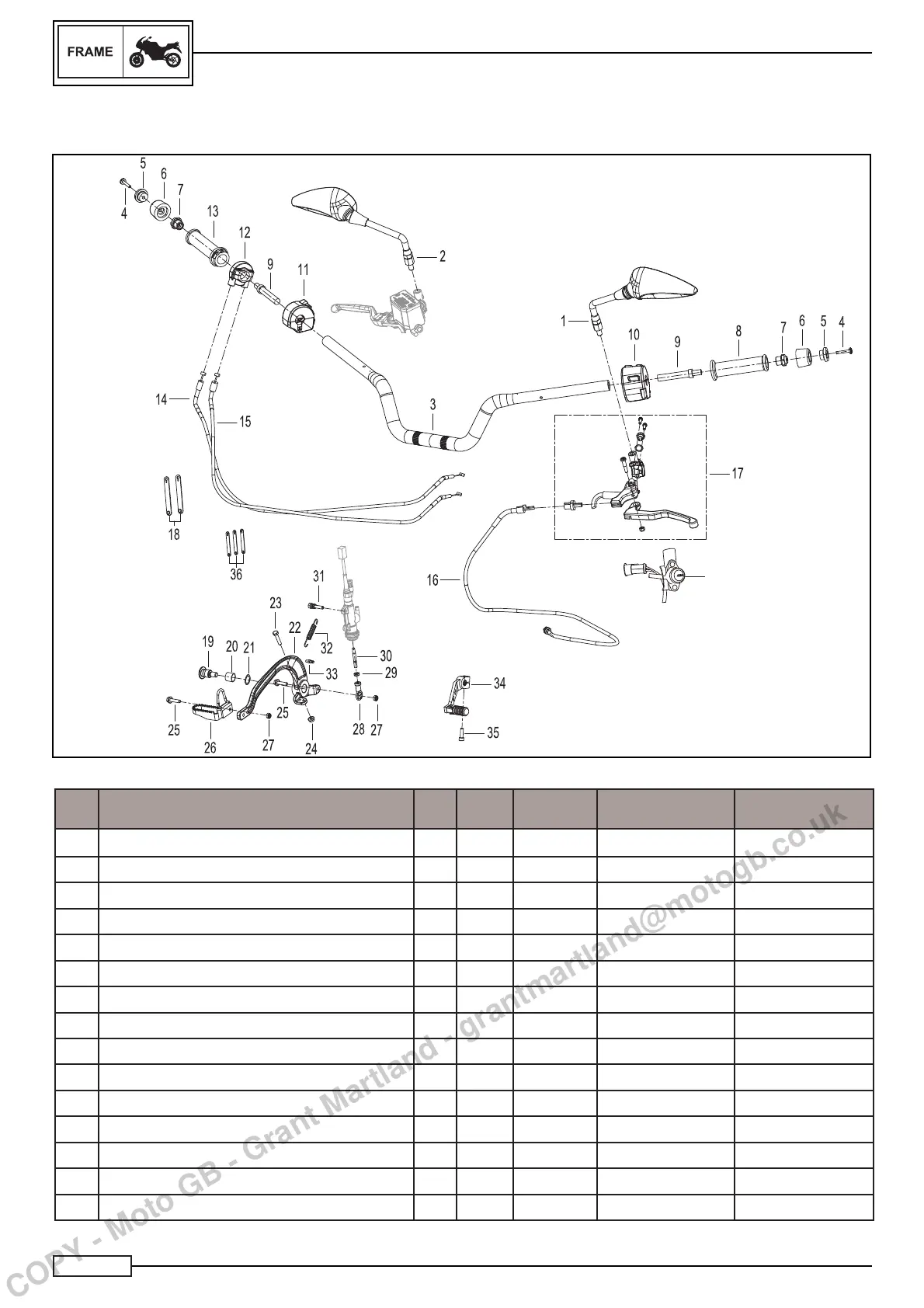

HANDLEBAR
HANDLEBAR REMOVAL
Pos. Description Qty Sq. SYMBOLS
CONTENTS
DESCRIPTION
REMARKS
1
REAR VIEW MIRROR (LEFT)
2
REAR VIEW MIRROR (RIGHT)
3
HANDLEBAR
4
SCREW
5
GRIP CAP
6
GRIP END
7
THREADED INSERT
8
LEFT HANDGRIP
9
THREADED INSERT
10
LEFT LIGHT COMMUTATOR SWITCH
11
RIGHT LIGHT COMMUTATOR SWITCH
12
ACCELERATOR CONTROL
13
ACCELERATOR CONTROL HOSE
14
FUEL OPEN CABLE
15
FUEL CLOSE CABLE
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
