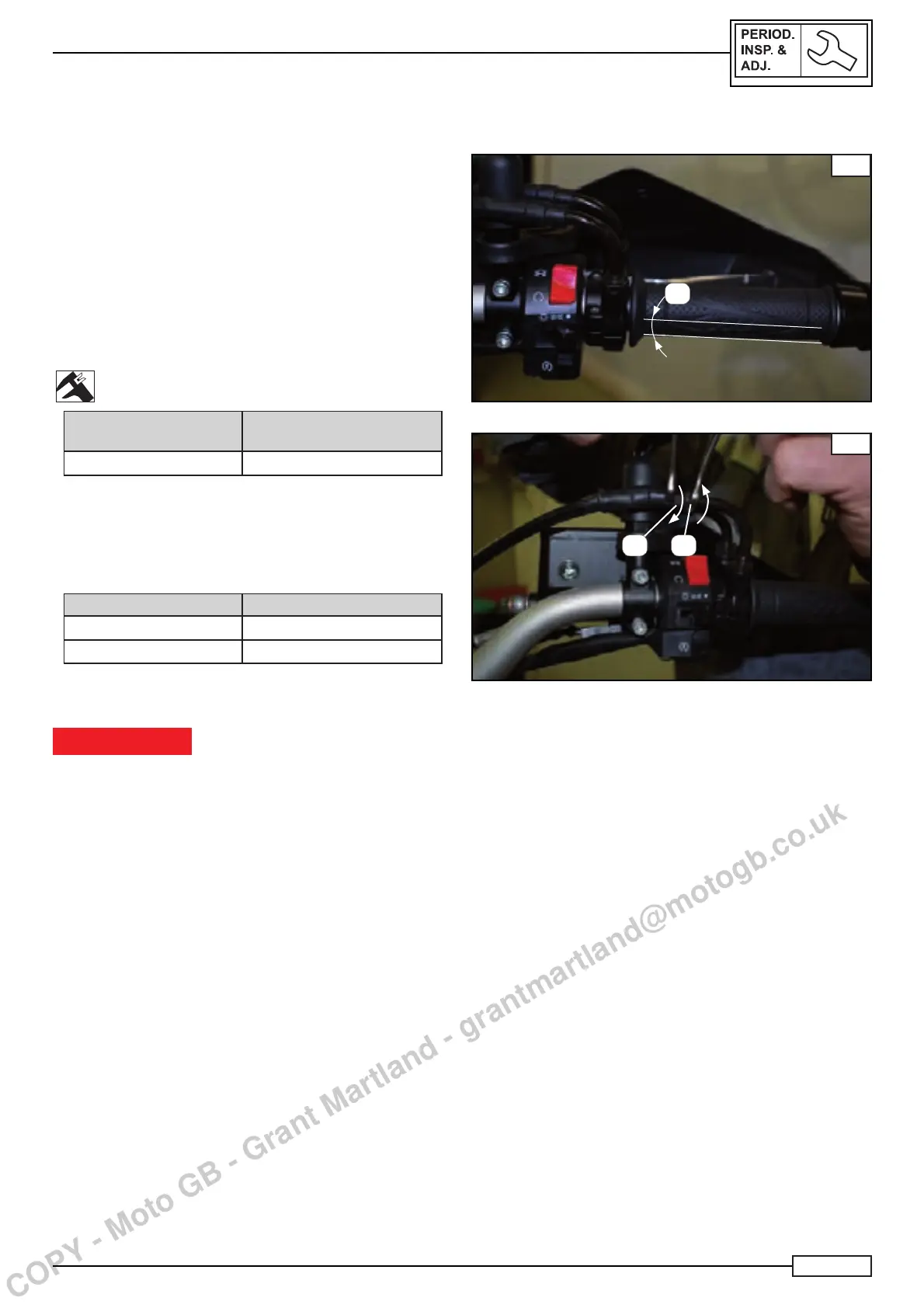

3 - 13
ENGINE/THROTTLE CABLE CLEARANCE
ADJUSTMENT OF THROTTLE CABLE CLEARANCE
NOTE:___________________________________________
The engine idle speed should be properly adjusted before
adjusting the throttle cable clearance.
Check at 10,000 km (6,213 mi) rst and then every 10,000 km
(6,213 mi).
Check:
the throttle cable clearance (A)
Make sure the throttle grip works smoothly. Furthermore, check
that the max opening position and the automatic closing one can
be reached in any steering position. If outside speci cations,
adjust. Fig. A
Throttle cable clearance
(A)
Dimensions
Throttle cable
2 - 3 mm
Adjust:
the throttle cable clearance
Handlebar side
1. Loosen the locknut “D”.
2. Rotate the adjusting nut “C” clockwise or counter-clockwise
up to the speci ed throttle cable clearance. Fig. B
Throttle cable clearance Clearance
Clockwise
The gap is increased
Anticlockwise The gap is decreased
3. Tighten the lock nut “D”.
Carry out the adjustment on both accelerator controls.
WARNING
After having adjusted the throttle cable clearance, start the
engine and turn the handlebar to the right and to the left,
making sure the engine idle speed does not change.
A
A
B
CD
