5 - 8

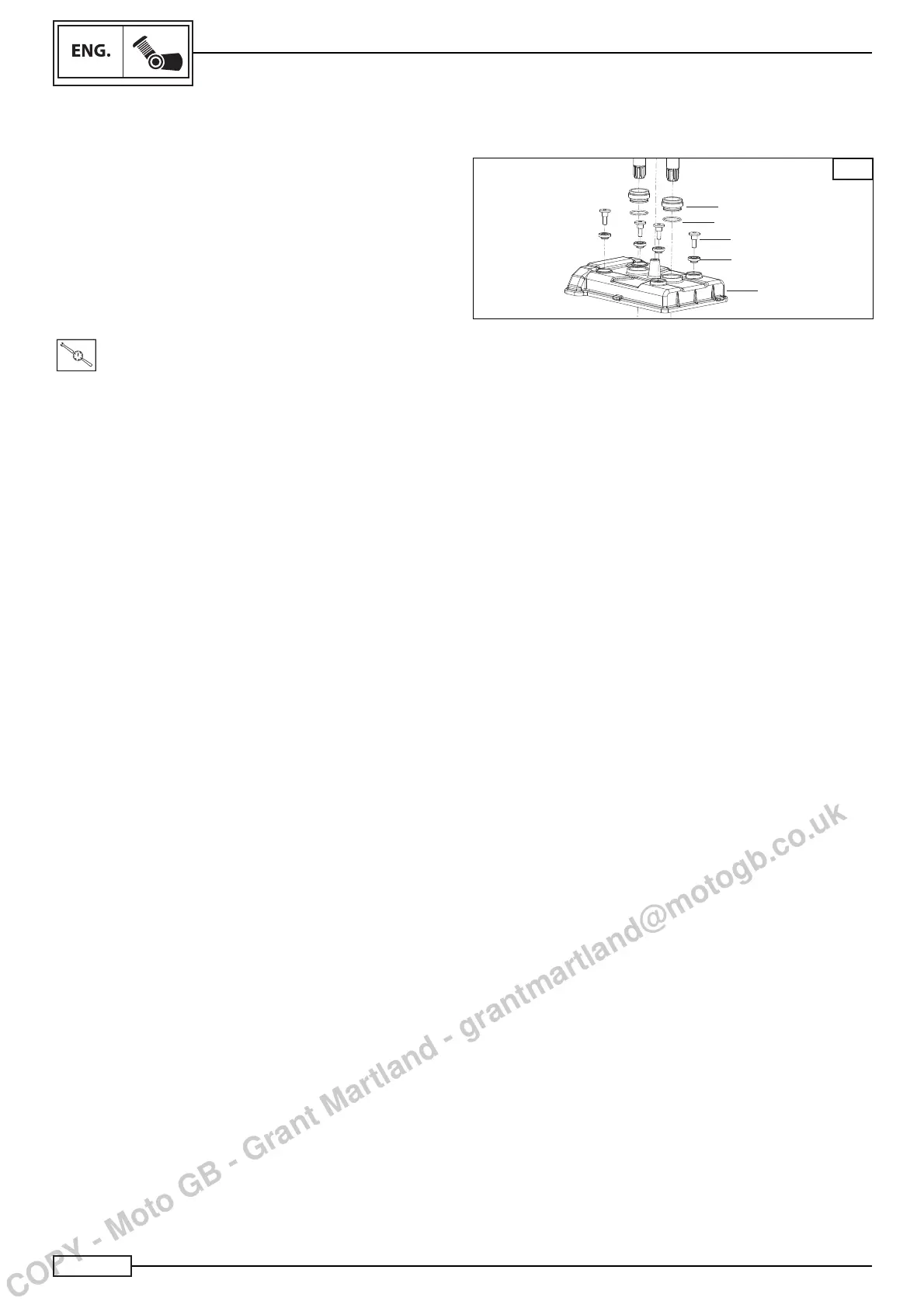

TIMING GEAR COVER ASSEMBLY
Assemble:
Proceed in the opposite direction to removal.
NOTE:_________________________________
During the assembly stage of the timing gear cover, repla-
cement of the rubber tips (5*) is recommended.
Tighten:
Tighten the screws (4*) to the following torque:
T
.
R
.
Torque 12 N*m
NOTE:_________________________________
Numbers marked (*) are part of the spare parts table in
Chapter 5 “Engine”, section entitled “Timing gear cover
removal”.
E
2
3
4
5
9
HEAD DISTRIBUTION
