Benelli TRK 502 Service Station Manual

5 - 13

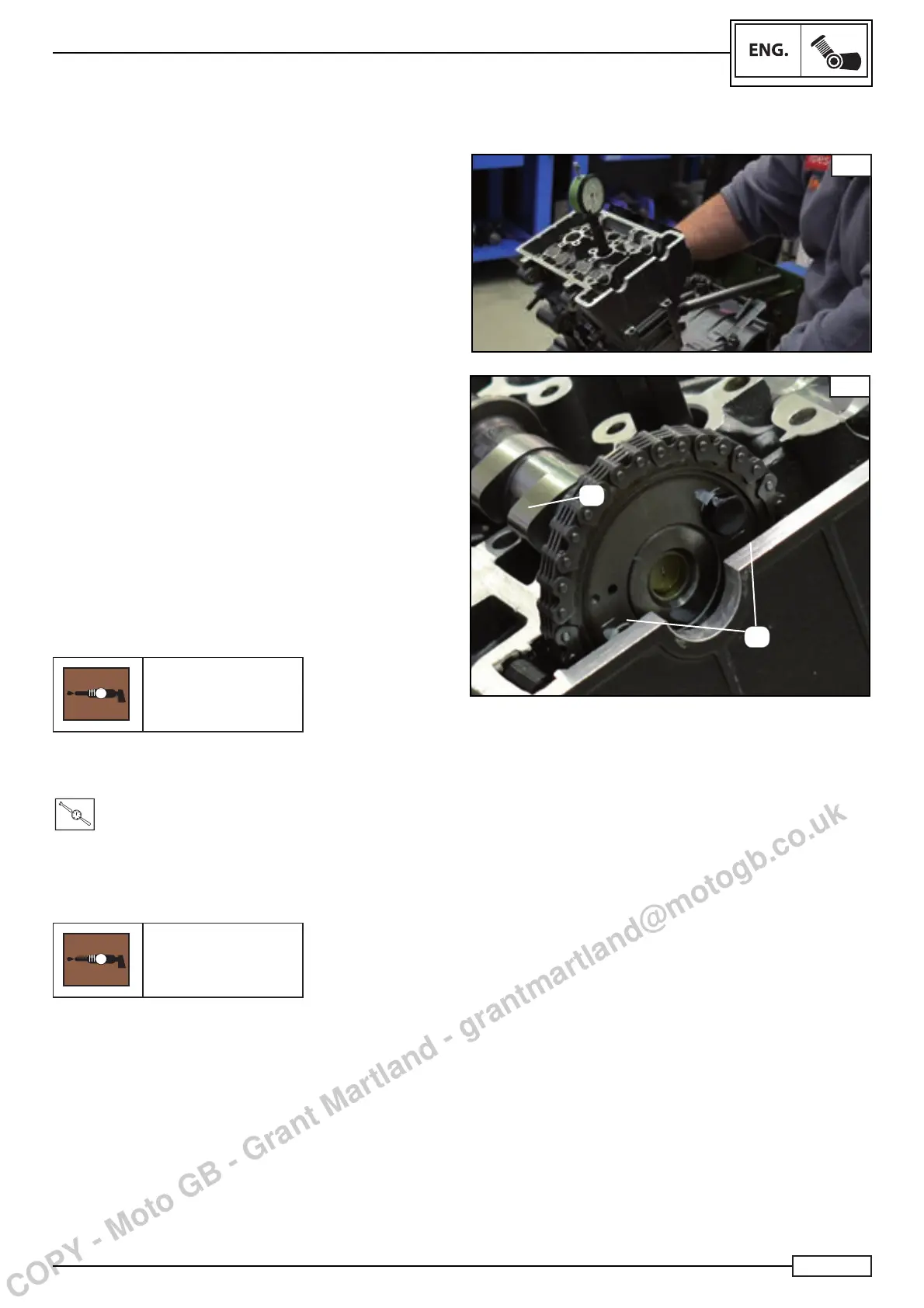

EXHAUST CAMSHAFT INSTALLATION
HEAD DISTRIBUTION
Insert:
Install the special tool (*) into the spark plug seat to check the
top dead centre Fig. A.
(*) Tool: Engine phasing tool
Code:R180197022000
Once the TDC has been identifi ed, proceed to assemble the
camshaft, exhaust side.
NOTE:_________________________________
During this assembly, it is important for the lobes of the
cylinder shaft 1 (Y) to be positioned outwards Fig. B. and
the two reference notches ”X” of the distribution gear are
aligned as in Fig. B.
NOTE:_________________________________
When assembling the holders, it is necessary to lubricate
them with special grease to prevent the shafts from rotating
dry during initial starting.
G
Sintofl on Grease
When installing the holders, proceed in the opposite direction to
removal, tightening the screws to the following torque:
T
.
R
.
Torque 13 N*m
NOTE:_________________________________
lubricate the screws with copper grease.
G
Copper grease
NOTE:_________________________________
Check the correct alignment of the exhaust camshaft using
the special tool (*).
(*) Tool: Engine phasing tool
Code:R180197022000
A
X
Y
B
