Benelli TRK 502 Service Station Manual

4 - 16
REAR WHEEL AND BRAKE DISC

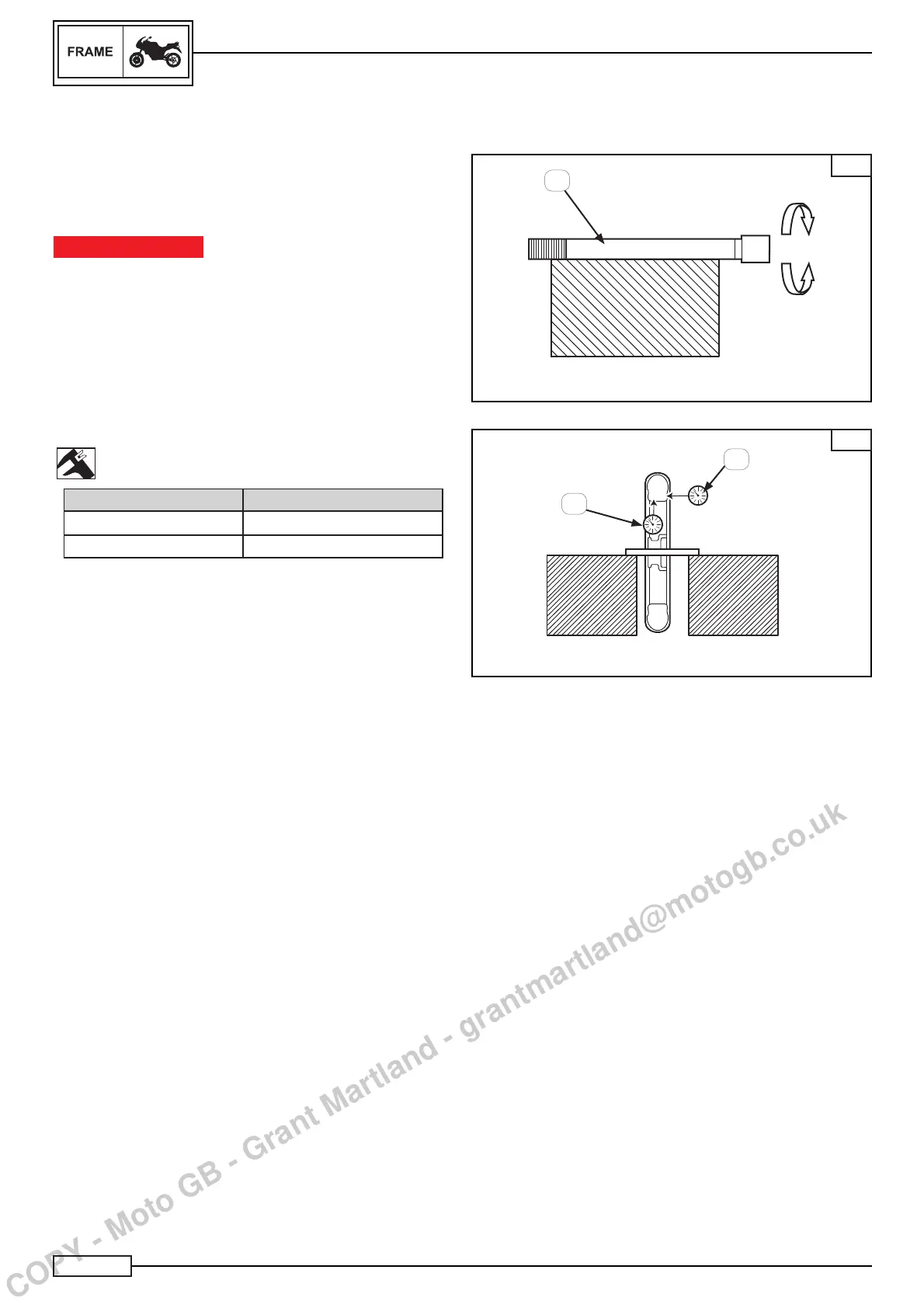

WHEEL AXLE CHECK
Check:
• Wheel axle.
• Rotate the axle of wheel “A” on a fl at surface Fig. A.
If there is any warping, replace.
WARNING
Do not try to straighten the wheel axle if it is warped.
Check:
• Tyre
• Front wheel
If there is any warping, replace.
Measure:
• The radial eccentricity of the wheel “B” Fig. B
• The lateral eccentricity of the wheel “C” Fig. B.
If the specifi ed limit is exceeded, replace.
Eccentricity Limit
Radial(B)
0.05 mm
Side(C) 0.05 mm
