Benelli TRK 502 Service Station Manual

ELE. - 28

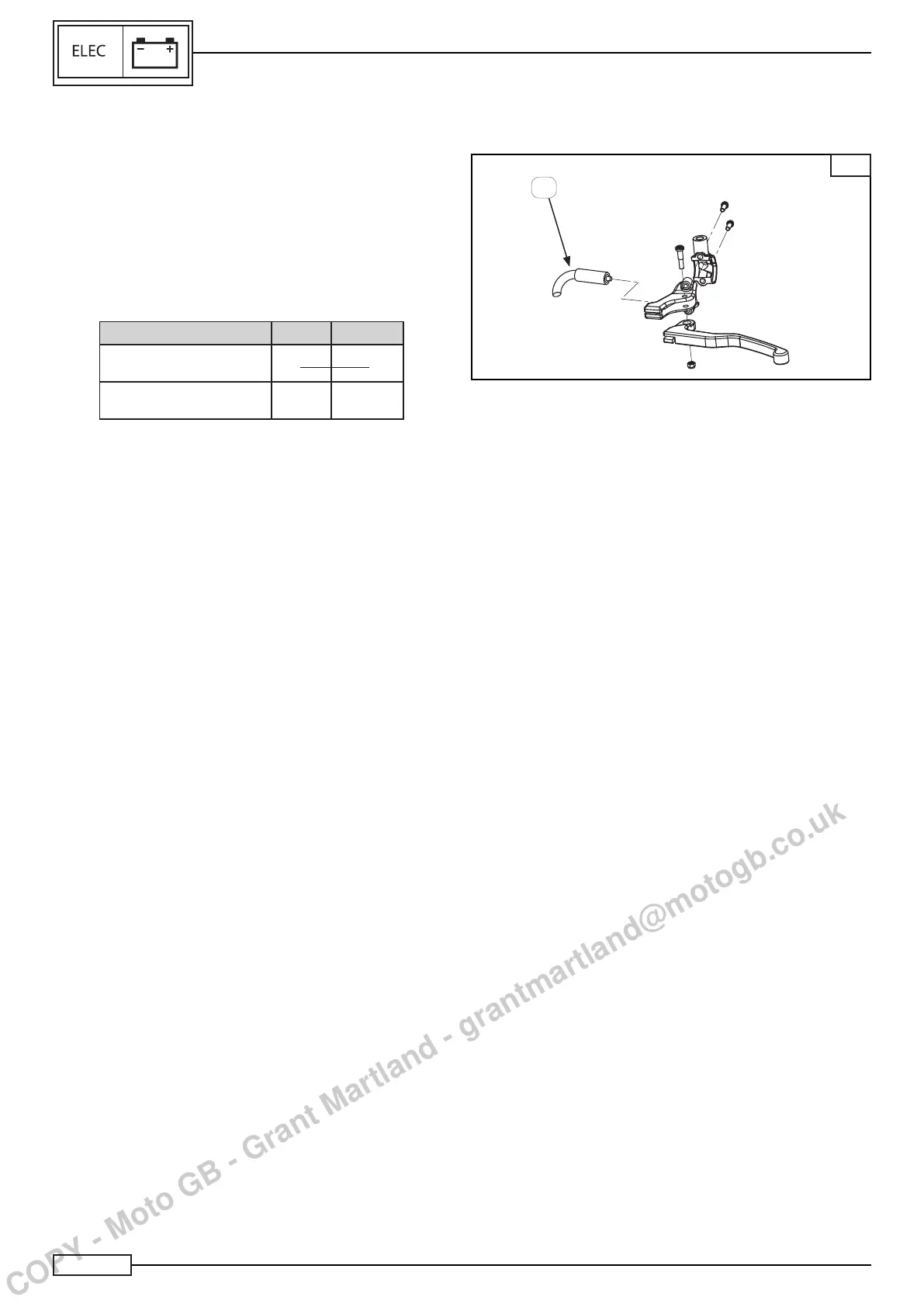

CLUTCH SWITCH
It is situated on the clutch lever and serves to prevent the engine
from starting before the lever is completely pulled (A) Fig. P.
Disconnect:
• The clutch switch cables.
Use:
• The tester and check the clutch switch pins referring to the
table.
CLUTCH PIN 1 PIN 2
Pulled
• •
Released
• •
NOTE:________________________________
When the above conditions are fullled, the front brake sen-
sor is working properly, otherwise replace the part.
