4 - 97
CYCLING

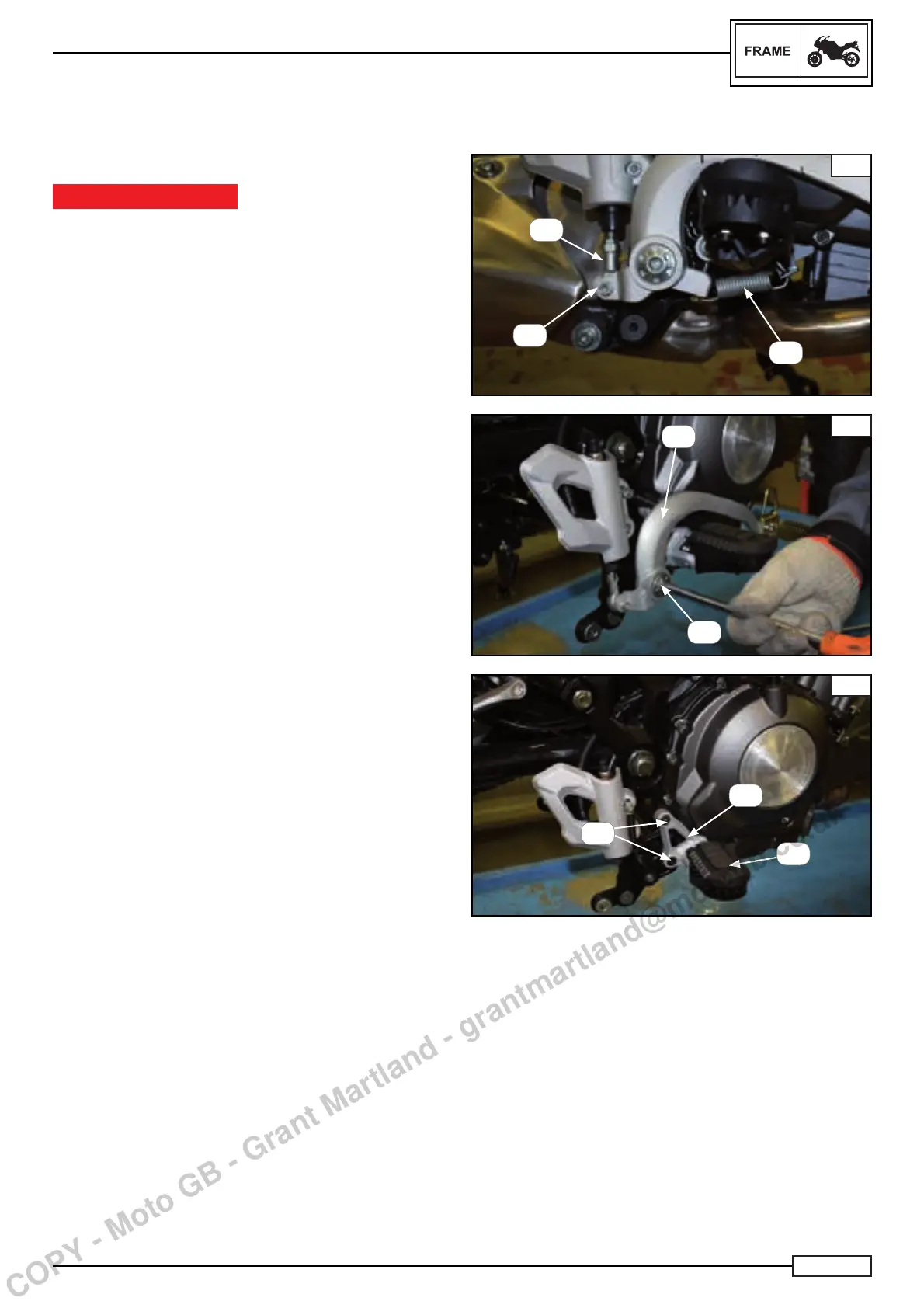

RIGHT FRONT FOOTREST REMOVAL
C
8*
9*
5*
5
4
A
3
2
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
The spring (1) Fig. A
the screw (2) Fig. A
the ball joint (3) Fig. A
the special screw (4) Fig. B
the brake pedal (5) Fig. B
NOTE:_________________________________
Substitute the rubber cover of the right footrest (5*) if it is
worn.
Remove:
the two screws (8*)
the right front footrest holder plate (9*) Fig. C
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Cycling” paragraph “Installation of the stand/foot-
rests”.
