CAMSHAFT AND VALVE PAD REMOVAL
HEAD DISTRIBUTION
Remove:
1. Coils and Spark plugs, see the section entitled “Coil and
spark plug removal”.
2. Head timing gear cover, see the chapter entitled “Head
timing gear cover removal”.
To remove the intake and exhaust valve lifter, proceed as fol-
lows:

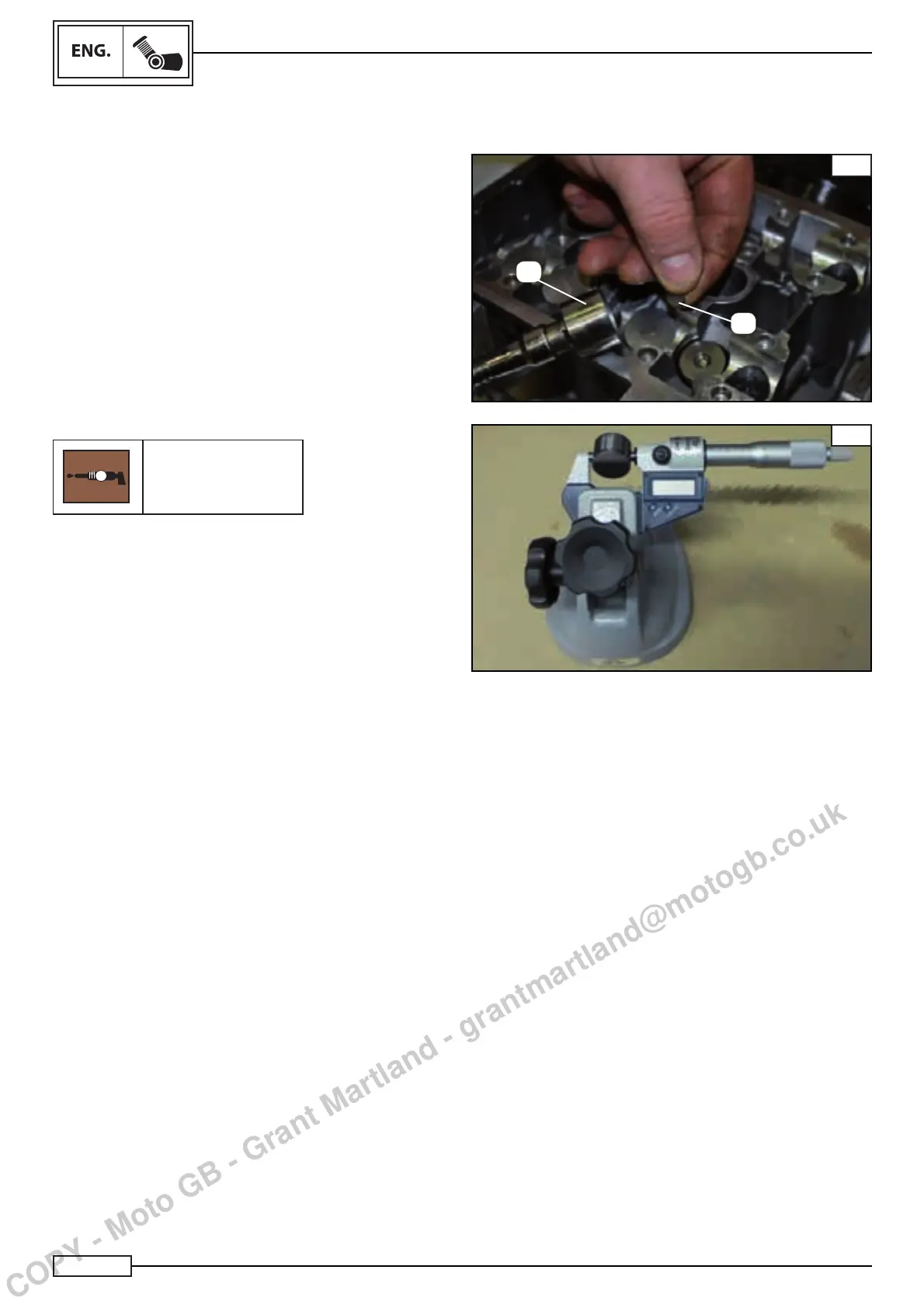

• Use a magnet to take out the tappet valve lifter (1) and then
the calibrated pad (5) Fig. A.
• Make a visual check of the tappet valve lifter, ensuring that
there is no damage or lines, and if not, replace.
• Check the outside diameter using a micrometer to exclude
any deformation Fig. B.
NOTE:_________________________________
During installation, lubricate the tappet valve lifter, using:
G
Sintofl on Grease
NOTE:_________________________________
At the end of the check of the parts, check the valve clea-
rance , as in the chapter entitled “Valve clearance removal”.
