4 - 38
ABS ANTI-LOCK BRAKING SYSTEM
REMOVAL OF THE ABS ROTATION SENSORS – FRONT/REAR WHEEL
IMPORTANT NOTICE
The wheel rotation sensor must be handled with caution,
must not receive knocks, e.g., with a hammer, or dropped on
a hard surface. It is a precision instrument.
Do not soak the wheel rotation sensor in water or mud Do not
attempt to repair or remove the wheel rotation sensor.
Remove:
Rider and passenger seats, see chapter “Removal of the
rider and passenger seat, Chapter 4”.
Side fairings, see chapter “Removal of the side fairings,
Chapter 4”.
For the fuel tank, refer to chapter “Removal of the fuel
tank, Chapter 4”.
For the front wheel rotation sensor refer to chapter “ABS
anti-lock braking system, paragraph rotation sensor
check”.

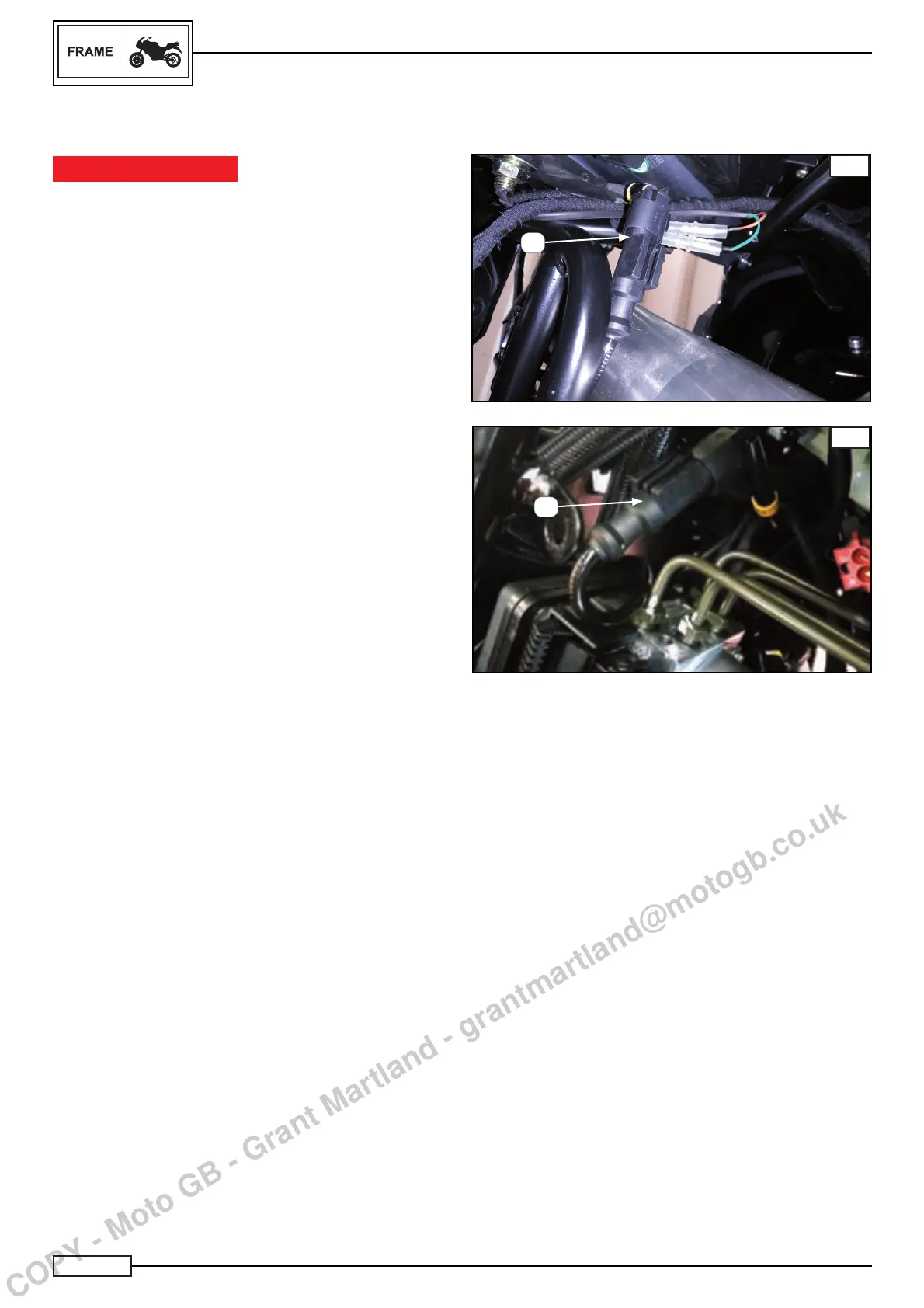

Disconnect the connector of the front wheel rotation sensor
(5) Fig. A
Remove the cable (6) of the sensor from the xing terminal
Fig. B.
Install:
For installation, reverse the order of the removal operation.
Replace the cable correctly.
A
B
5
