Benelli TRK 502 Service Station Manual

5 - 52

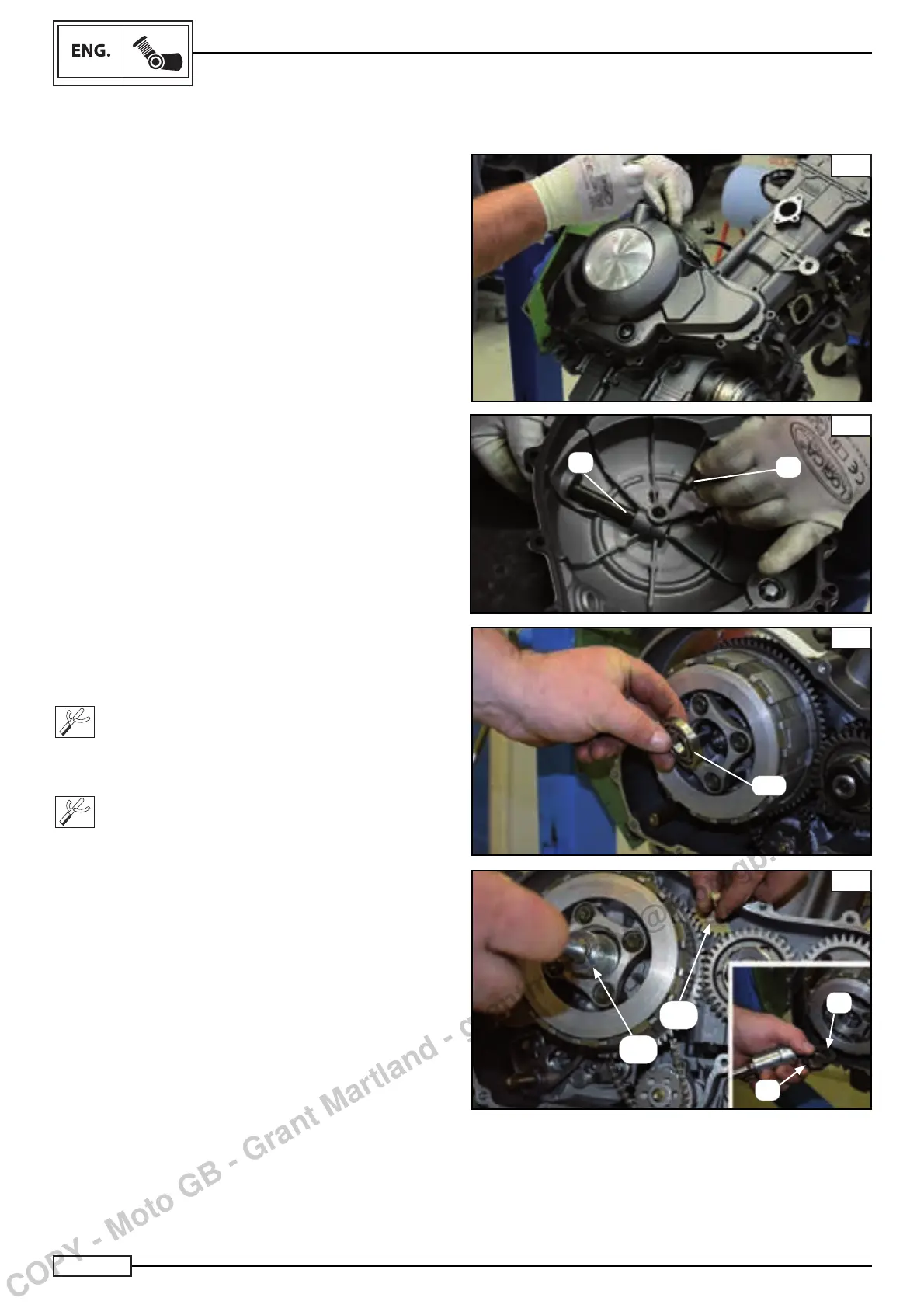

CLUTCH AND DISC REMOVAL
Remove:
• the clutch cover screws Fig. A.
• clutch cover
• the gasket.
NOTE:_________________________________
In case of gasket anomalies, install a new gasket.
Remove:
• the guide bushing (1) Fig. B
• clutch control shaft (2) Fig. B
• Remove the bearing (11*) Fig. C.
• Remove the fastening nut (1*) and ring (10*) as shown in
the fi gure, Fig. D.
(*)Tool for clutch bell ring nut removal/assembly
Code:03200097052000
(**)Toothed wrench for clutch bell lock
Code:03200097053000
NOTE:_________________________________
Part numbers marked (*) are part of the spare parts table in
Chapter 5 “Clutch”.
CLUTCH
A
B
1
2
C
7*
D
(**)
(*)
1
10
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
