Benelli TRK 502 Service Station Manual

4 - 12

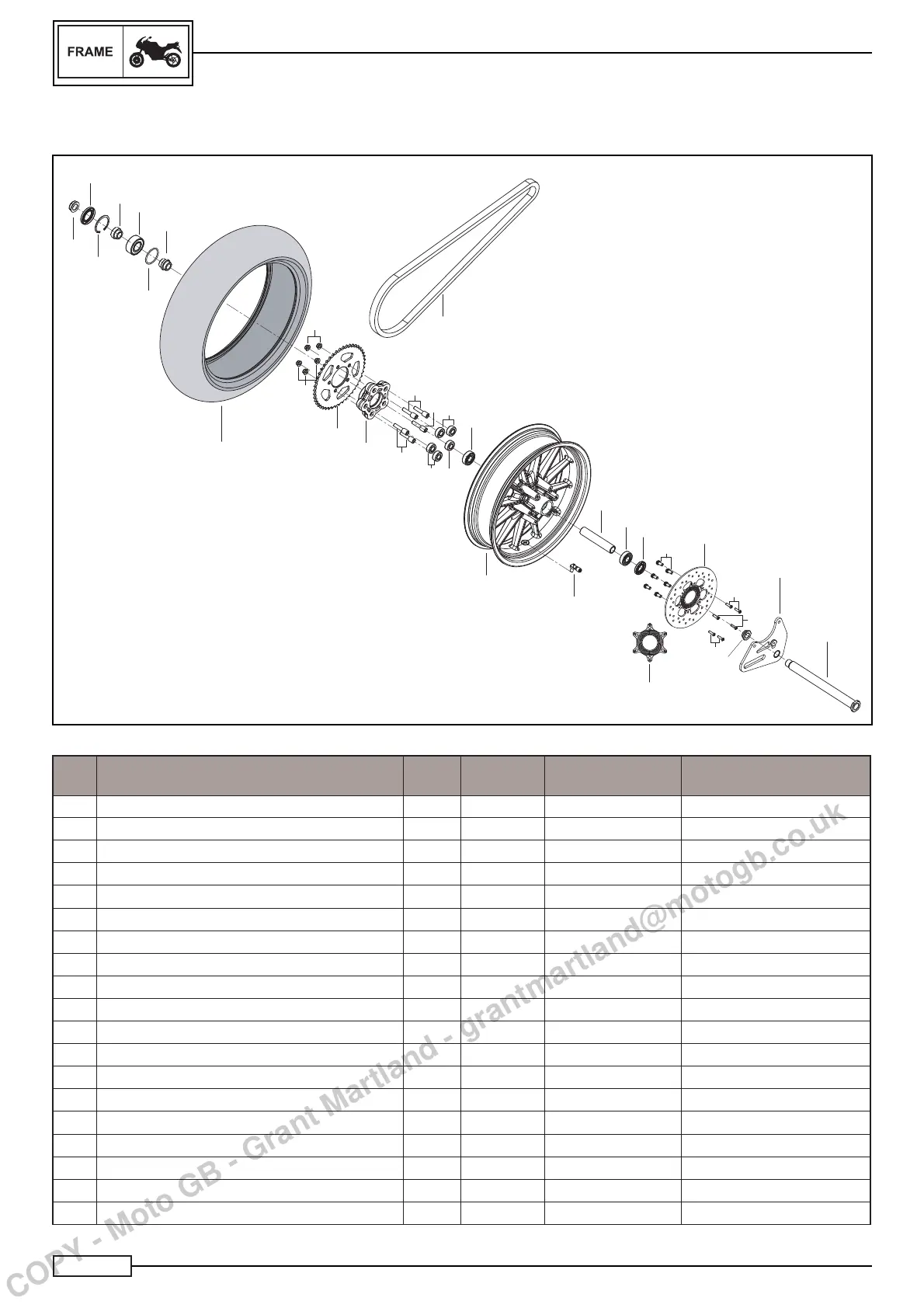

REAR WHEEL AND BRAKE DISC
REAR WHEEL REMOVAL
1
2
3
3
3
25
5
10
10
10
17
6
14
22
19
20
11
8
21
12
9
7
13
13
18
18
16
15
15
15
23
24
4
whit ABS sensor
26
Pos. Description Sq. SYMBOLS
CONTENTS
DESCRIPTION
REMARKS
1 REAR WHEEL AXLE
2 BUSHING
3 SCREW
4 REAR BRAKE DISC
5 VALVE
6 REAR WHEEL RIM (BLACK)
7 INTERNAL SHIM
8 DUST COVER
9 NUT
10 FLEXIBLE COUPLING
11 SHIM
12 O-RING
13 BEARING
14 OIL SEAL
15 SCREW
16 SPROCKET SUPPORT FLANGE
17 CROWN (Z42)
18 NUT M10
19 SHIM
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
