Benelli TRK 502 Service Station Manual

4 - 47
The following procedure is applied to both front fork stems.
Park:
• The bike on a level surface
NOTE:_________________________________
Place the bike on a suitable support so that the front wheel
is raised.
Remove:
• The front brake calliper (see procedure).
• Front wheel (see procedure)
• Front mudguard (see procedure)
Loosen:

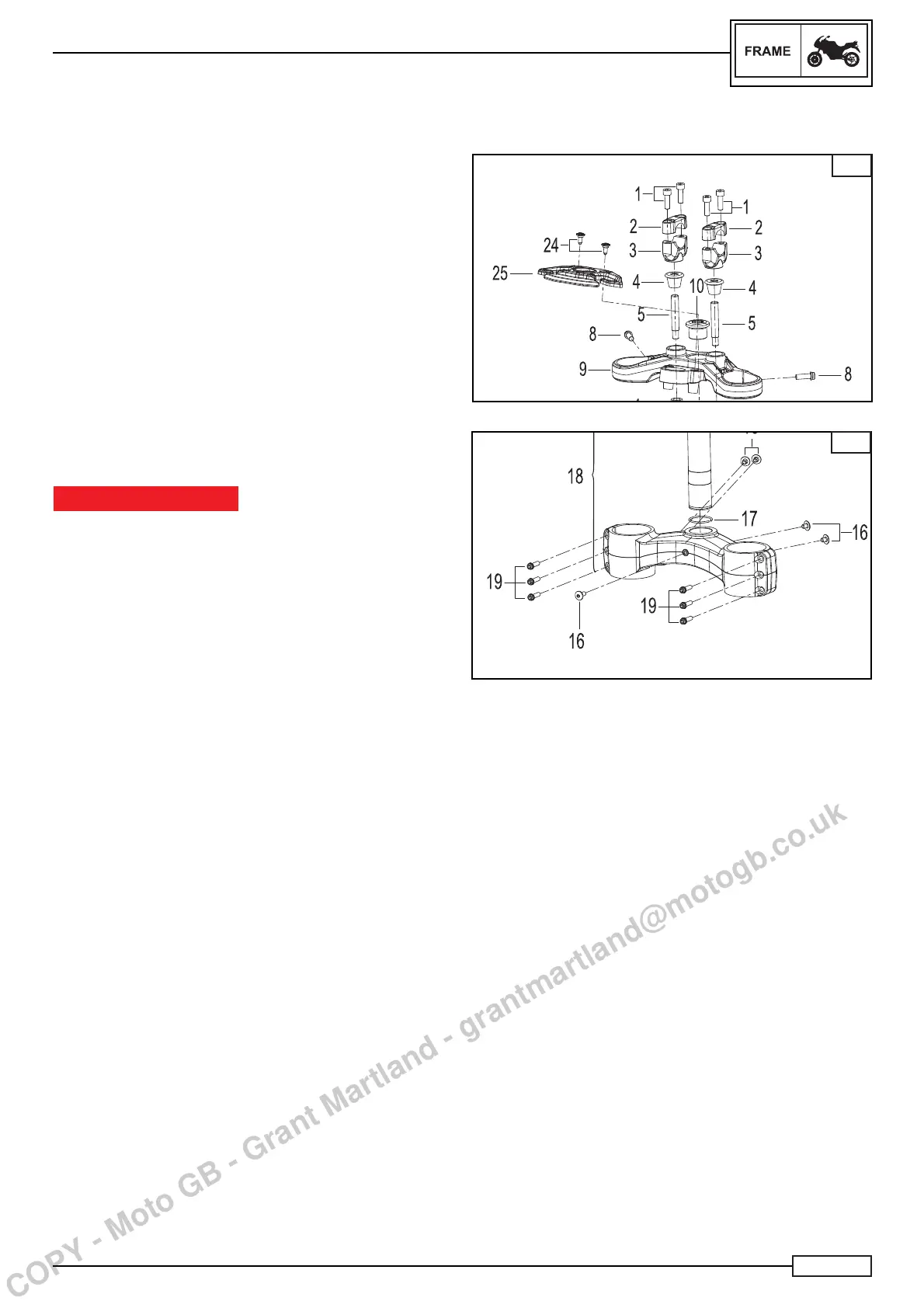

• the screws (8*) Fig. A
• the screws (19*) Fig. B
IMPORTANT NOTICE
Before loosening the setscrews on the top and bottom
brackets, fi t a support for the front fork stem.
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table
of the chapter “Front fork”, paragraph “Removal of the front
fork stems”.
A
B
FRONT FORK
FRONT FORK STEM REMOVAL
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
