Benelli TRK 502 Service Station Manual

4 - 53
FRONT FORK

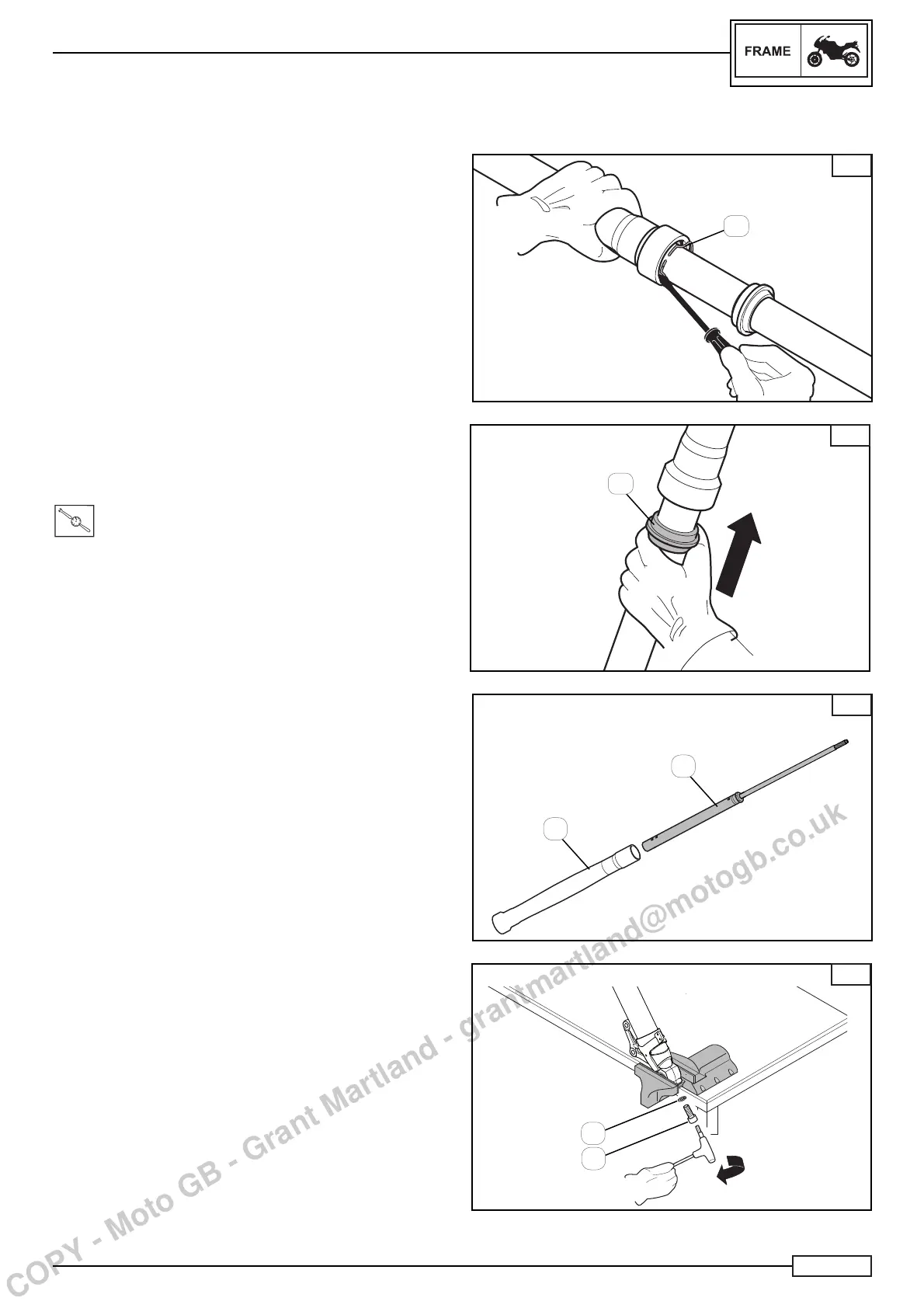

FRONT FORK STEM ASSEMBLY
Assemble:
• The clip on the oil seal (13) using a small fl athead screw-
driver, making sure that it is perfectly inserted into the
special raceway and taking care not to scratch the fork stem
Fig. E.
Then place the following in the seat:
• The dust seal (14) by pressing down manually Fig. F.
Insert:
• The assembled pump unit (15) into the fork sleeve (10) Fig.
G.
• Fit the fork in a clamp by the wheel foot Fig. H.
• Lower the fork sleeve over the stem.
Insert:
• The washer (17)
• The screw (18) fastening the pump unit.
Use an 8 mm Allen key to tighten to the following torque:
T
.
R
.
Torque 50 N*m
E
F
G
13
14
15
10
H
17
18
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
