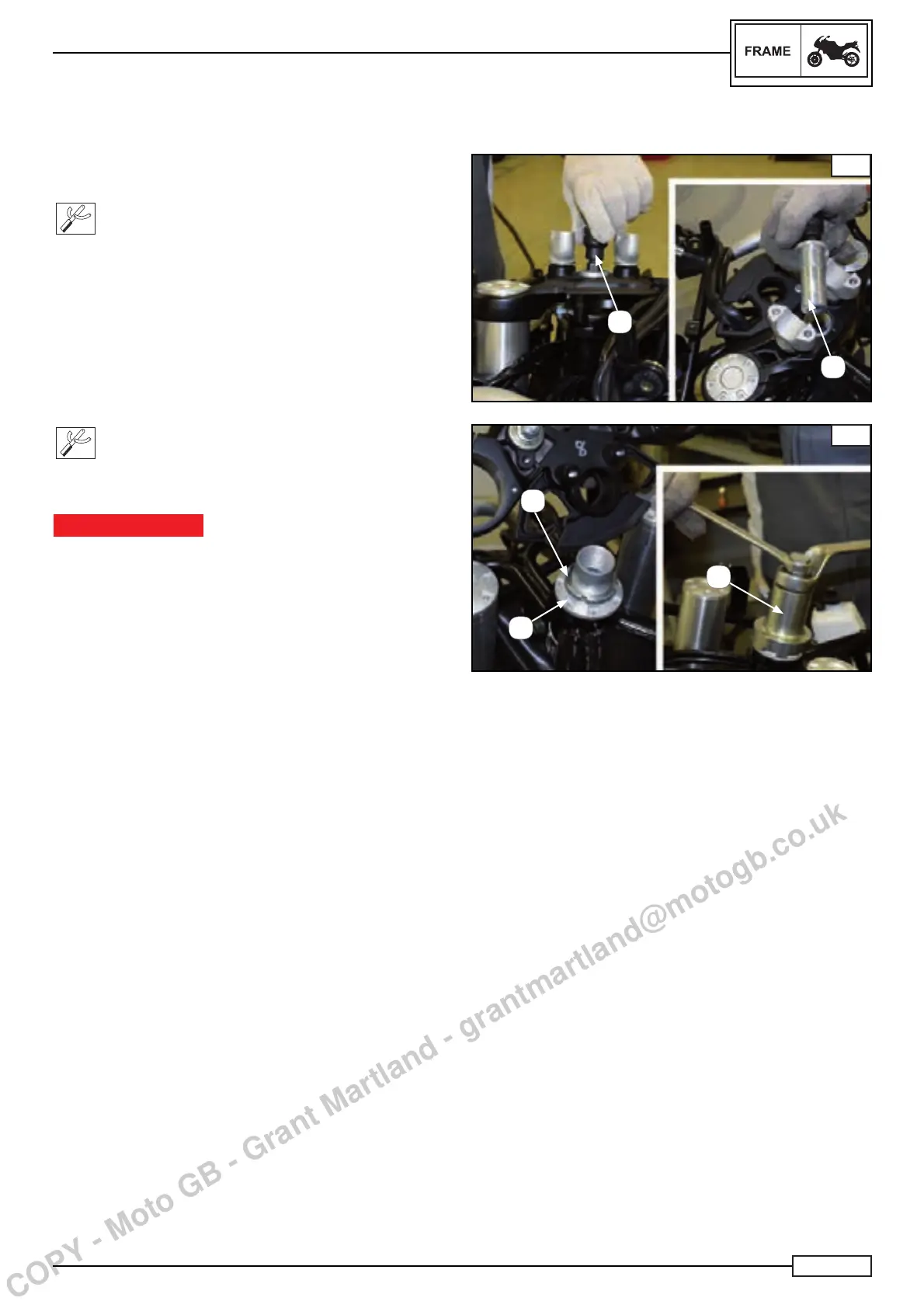

STEERING HEAD
REMOVAL OF THE TOP AND BOTTOM STEERING BASE
B
Remove:
• The cap (10) using the special tool (A) Fig. B
(**) steering head wrench
Code:R300097146000
Pull out the upper steering base.
Loosen:
• the steering pin ring nut (B)
• the steering ring nut (C) using the steering lock nut spanner
(D)
(**) Tool to tighten the steering sleeve lock nut
Code: R180297129000
WARNING
Firmly support the bottom steering base, so that it cannot
fall.
C
A
B
C
D
10
