Benelli TRK 502 Service Station Manual

4 - 144
Park the bike on a level surface.
IMPORTANT NOTICE
Prop the bike on suitable supports so that it cannot fall.
Remove:
• Rider and passenger seats, see chapter entitled “Removal
of rider and passenger seats, Chapter 4”.
• Movable windscreen, see chapter entitled “Removal of
movable windscreen, Chapter 4”.
• Front fairing, see chapter entitled “Removal of front fair-
ing, Chapter 4”.
• Tank fairing, see chapter entitled “Removal of tank fairing,
Chapter 4”.
• Tank, see chapter entitled “Fuel tank removal, Chapter 4”.
• the screws (1) Fig. D
• the two side covers - right and left - (2) Fig. D
Loosen:
• the two screw clips (4*) Fig. E.
Disconnect:
• the manifold (5*) Fig. F
Remove:
• the fi lter box, Fig. F
NOTE:_________________________________
The numbers marked (*) are a part of the spare parts table,
chapter “Air fi lter”, paragraph “Air fi lter parts”.

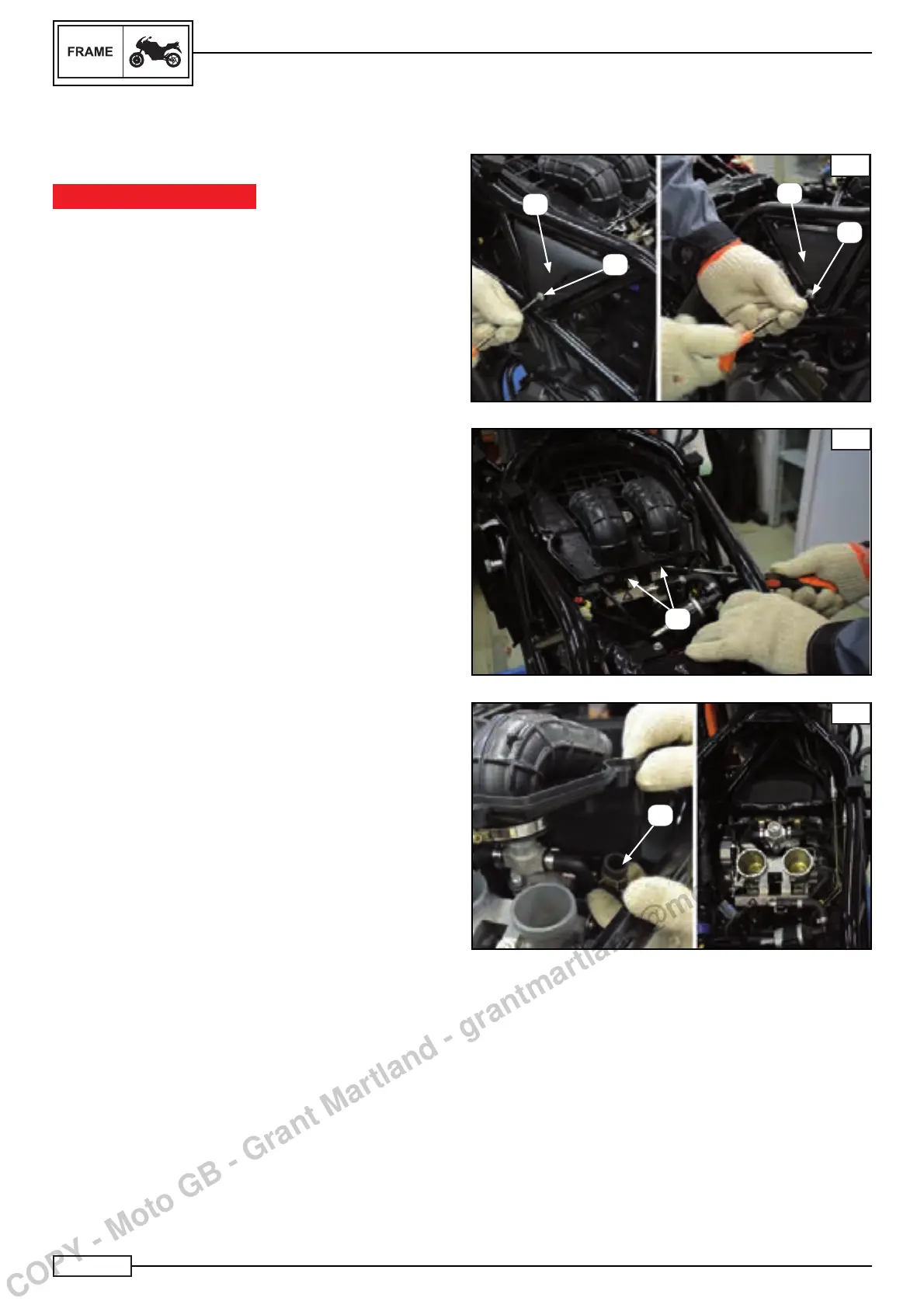

AIR FILTER
REMOVAL OF THE AIR FILTER BOX
D
1
1
E
F
4*
5*
2
2
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
