3 - 24
ENGINE/COOLING SYSTEM

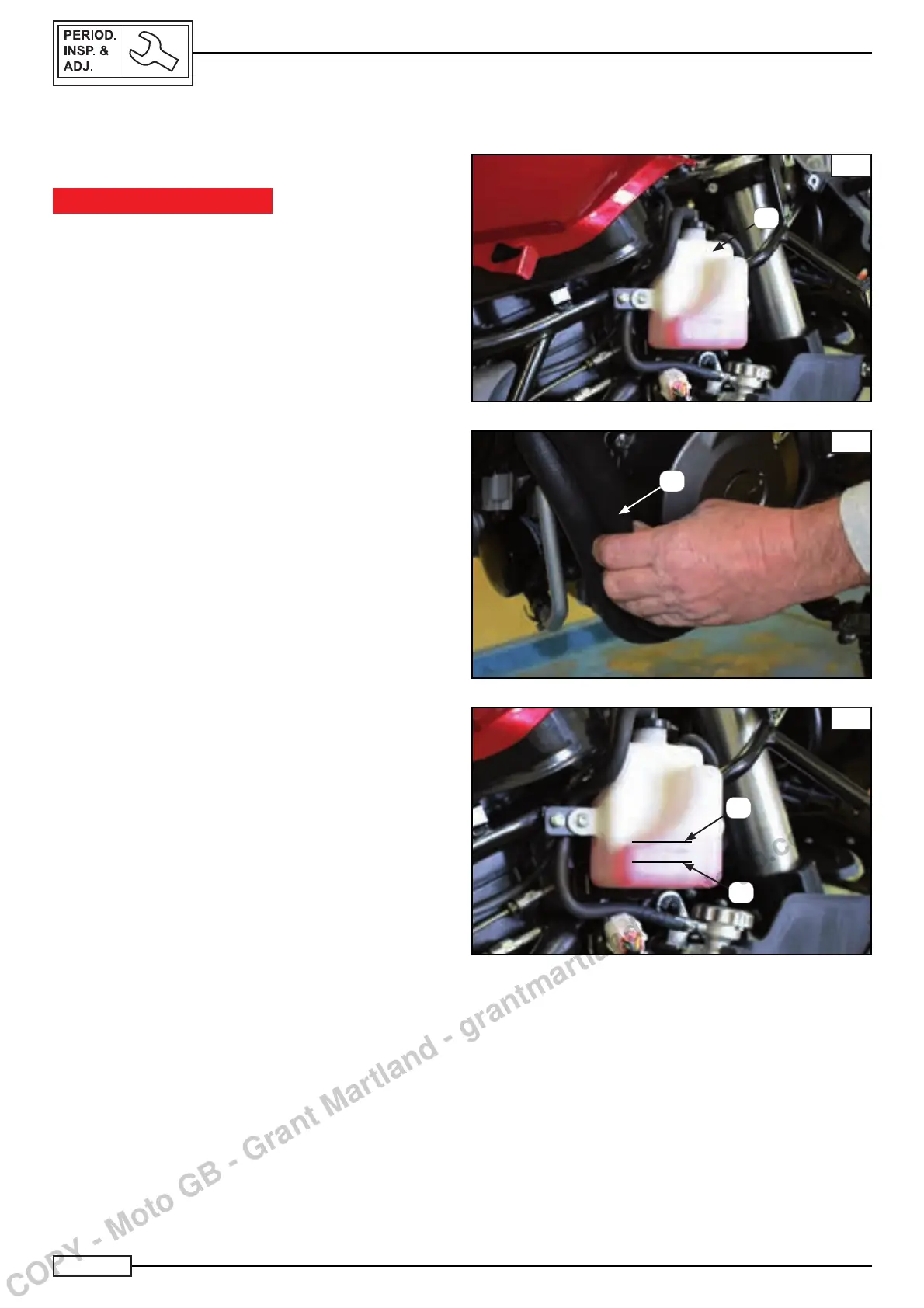

CHECKING COOLANT LEVEL
Park the motorcycle on a level surface.
IMPORTANT NOTICE
Prop the motorcycle on suitable supports so that it cannot
fall.
NOTE:__________________________________________
Make sure it is in upright position.
Check the level when the engine is cold.
Remove:
Rider and passenger seats, see chapter “Removal of rider
and passenger seats, Chapter 4”.
Movable windscreen, see chapter “Removal of movable
windscreen, Chapter 4”.
Front fairing, see chapter “Removal of front fairing, Chap-
ter 4”.
Check:
the coolant level
The coolant level must be within the maximum level reference
(MAX) and the minimum one (MIN). If below the minimum notch,
top up with the recommended coolant up to the correct level. Fig.
A
Remove:
the expansion tank cap
add coolant liquid up to the level line (MAX) Fig. C.
Press the hose “B” (from the water pump to the expansion tank)
to remove any air bubbles Fig. B.
A
A
B
B
C
D
C
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk
