Benelli TRK 502 Service Station Manual

3 - 44
CHARGING METHOD WITH A CONSTANT VOLTAGE BATTERY CHARGER
NOTE:__________________________________________
• Measure the voltage after 30 minutes from switching off of the appliance.
• Set the maximum charging time to max. 20 hours.
NOTE:__________________________________________
• To ensure the highest performance and life of battery, it is advisable to use electronic battery chargers that can supply
correct charging voltages and currents, according to the specifi c requirements of the sealed battery technology.
ELECTRICAL SYSTEM
BATTERY CHECK AND CHARGING
Questo tipo di caricabat-
terie non può essere
utilizzato per ricaricare
queste batterie. Si consiglia
l’uso di un caricabatterie a
tensione variabile.
Misurare la tensione a circuito aperto
prima di procedere con la ricarica.
Collegare alla batteria un
caricabatterie e un amperometro
e iniziare la ricarica.
Verificare che la corrente sia più elevata
del valore standard della corrente di
ricarica riportato sulla batteria.
Caricare la batteria finché la
tensione di carica
non arriva a 15 V.
Misurare la tensione a circuito
aperto dopo aver lasciato la
batteria per più di 30 minuti
inutilizzata.
12.8 V o superiore La
ricarica è completa.
12.7 V o inferiore Ricarica
necessaria.
Inferiore a 12.0 V Sostituire
la batteria.
NOSI
A
V
Voltometro
Caricabatterie
Amperometro

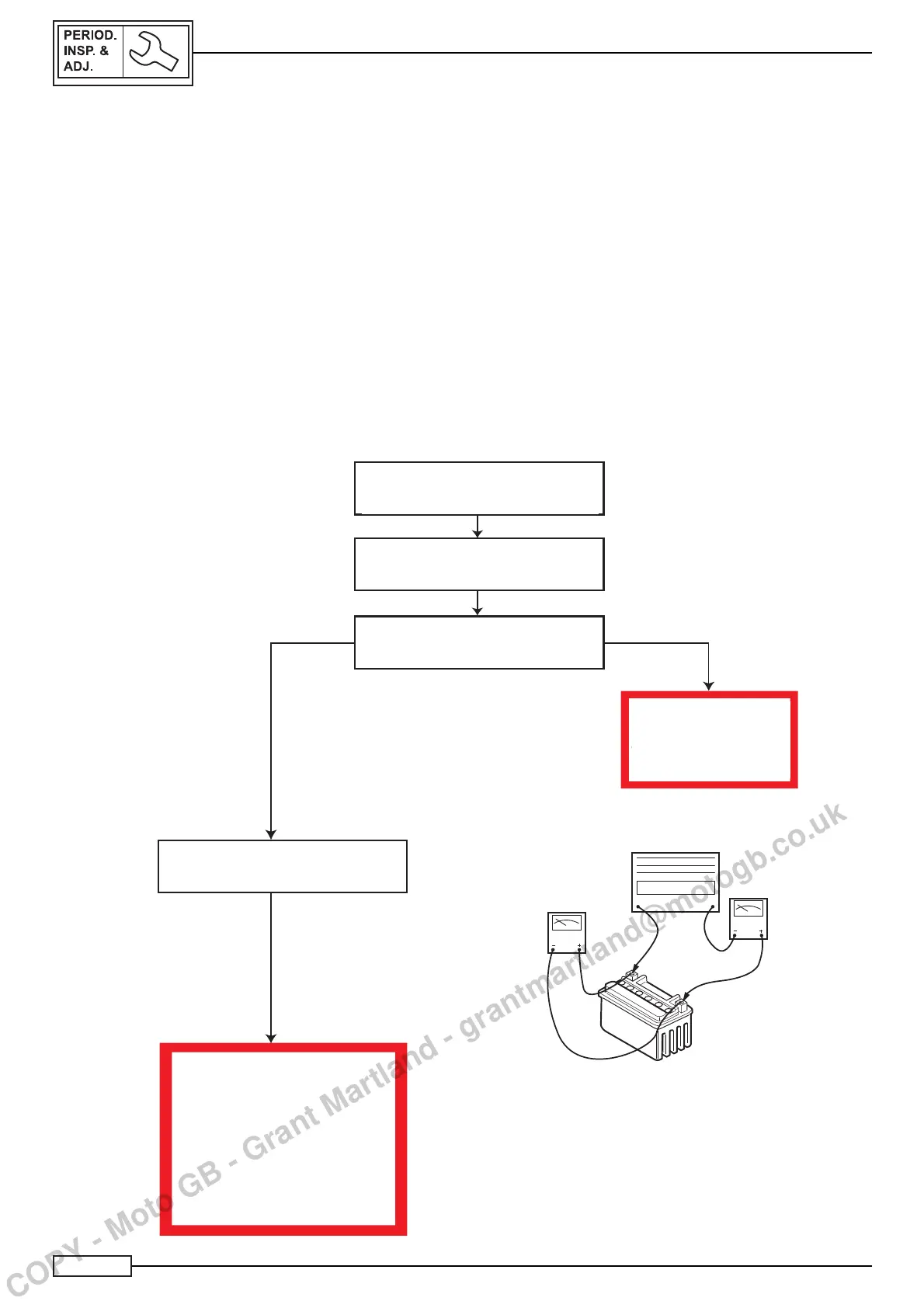

Measure the voltage in an open circuit
before charging
Connect a battery charger and an ammeter
to the battery and start charging
Check the current is higher than the stan-
dard value of the charge one indicated on
the battery
This kind of charger cannot
be used for charge these
batteries. It is recommended
to use a charger with varia-
ble voltage
Charge the battery until charge voltage
reaches 15 V
Measure the open circuit voltage after
a battery downtime of 30 minutes.
12.8 V or higher. Charge is complete.
12.7 V or lower. Charge necessary.
Lower than 12.0V. C. Change the
battery
Voltmeter
Ammeter
YES
Battery charger
