CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-24
(9) Remove the ejection roller B4 from the ejection pinch roller.

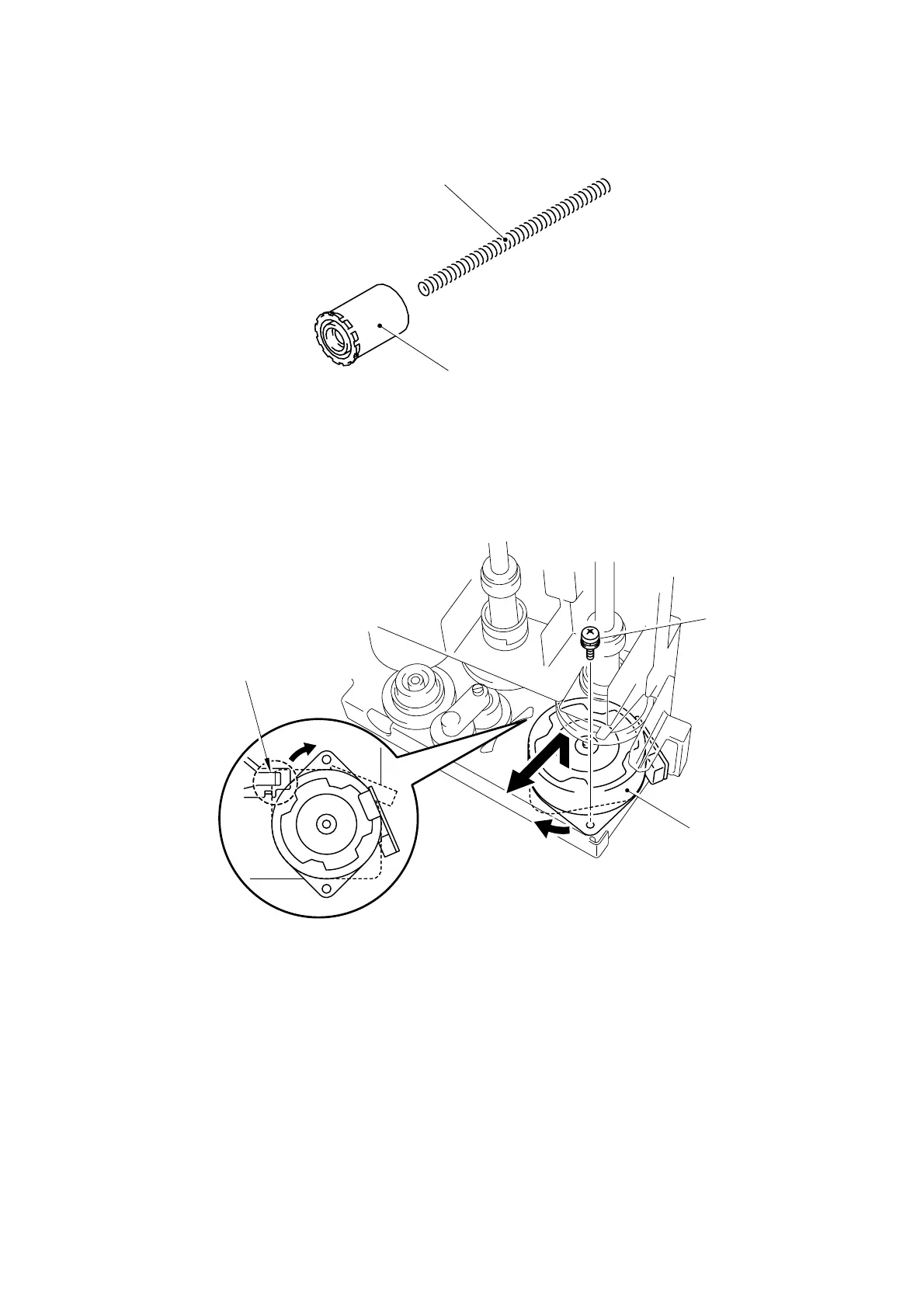

Fig. 4-41
(10) Remove the pan (S/P washer) M3x6 screw.
(11) Release the hook by rotating the scanning motor, and then remove the scanning motor.
Fig. 4-42
Ejection pinch roller
Ejection roller B4
Screw, pan (S/P washer) M3x6
Scanning motor
Hook
1
1
2
