MFC-8220
SERVICE MANUAL
4-25

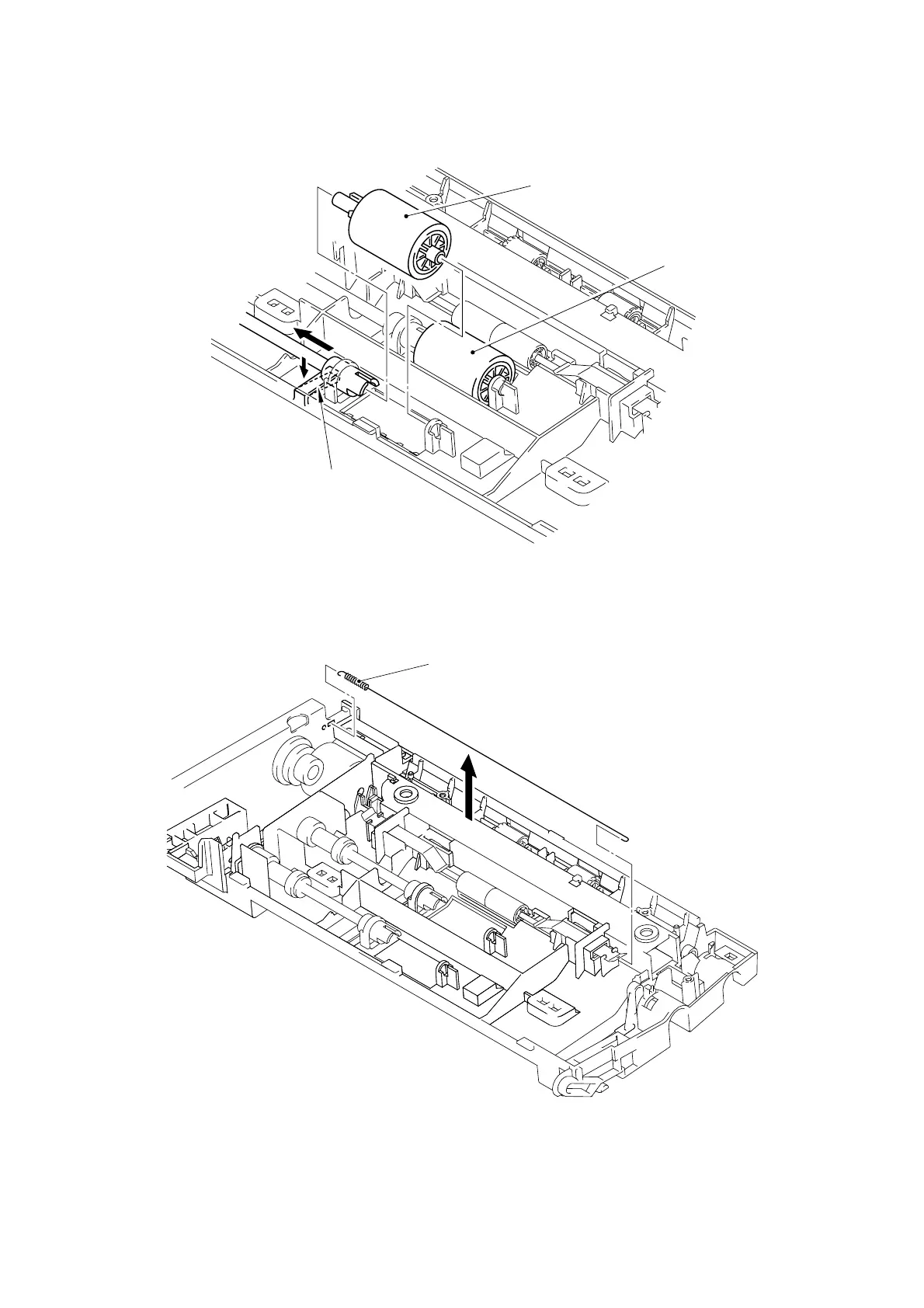

(12) Release the hook, and then remove the two document separation roller.
Fig. 4-43
(13) Remove the LF ground spring.
Fig. 4-44
Document separation roller
Hook
Document separation roller
LF ground spring
