CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-32

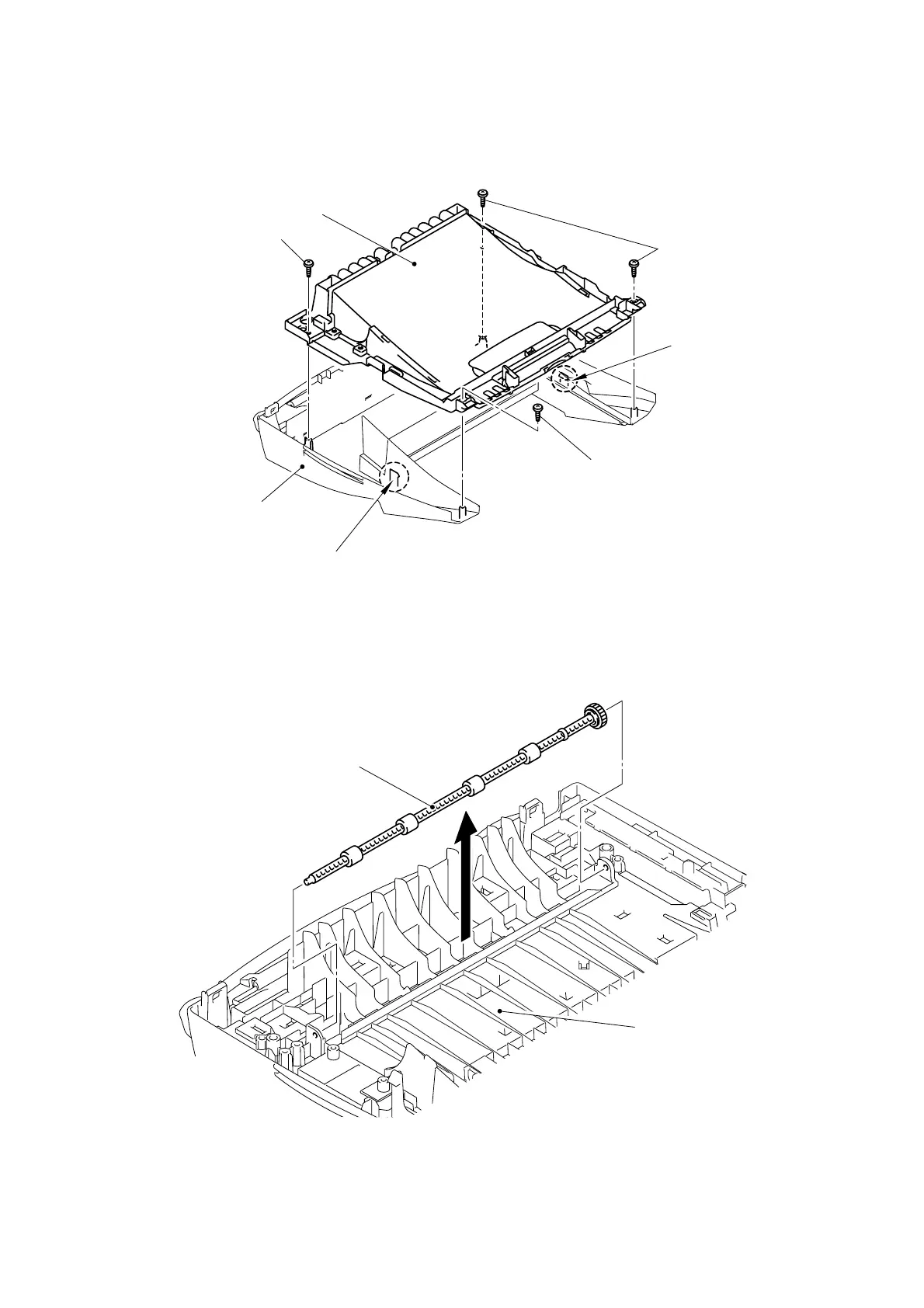

(7) Remove the four bind B M4x12 Taptite screws.
(8) Release the two hooks, and then remove the inner chute.

Fig. 4-56
(9) Remove the eject roller ASSY from the top cover ASSY.
Fig. 4-57
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, bind B M4x12
Inner chute
Hook
Hook
Top cover ASSY
Top cover ASSY
Eject roller ASSY
