CHAPTER 5 PERIODIC MAINTENANCE
5-12

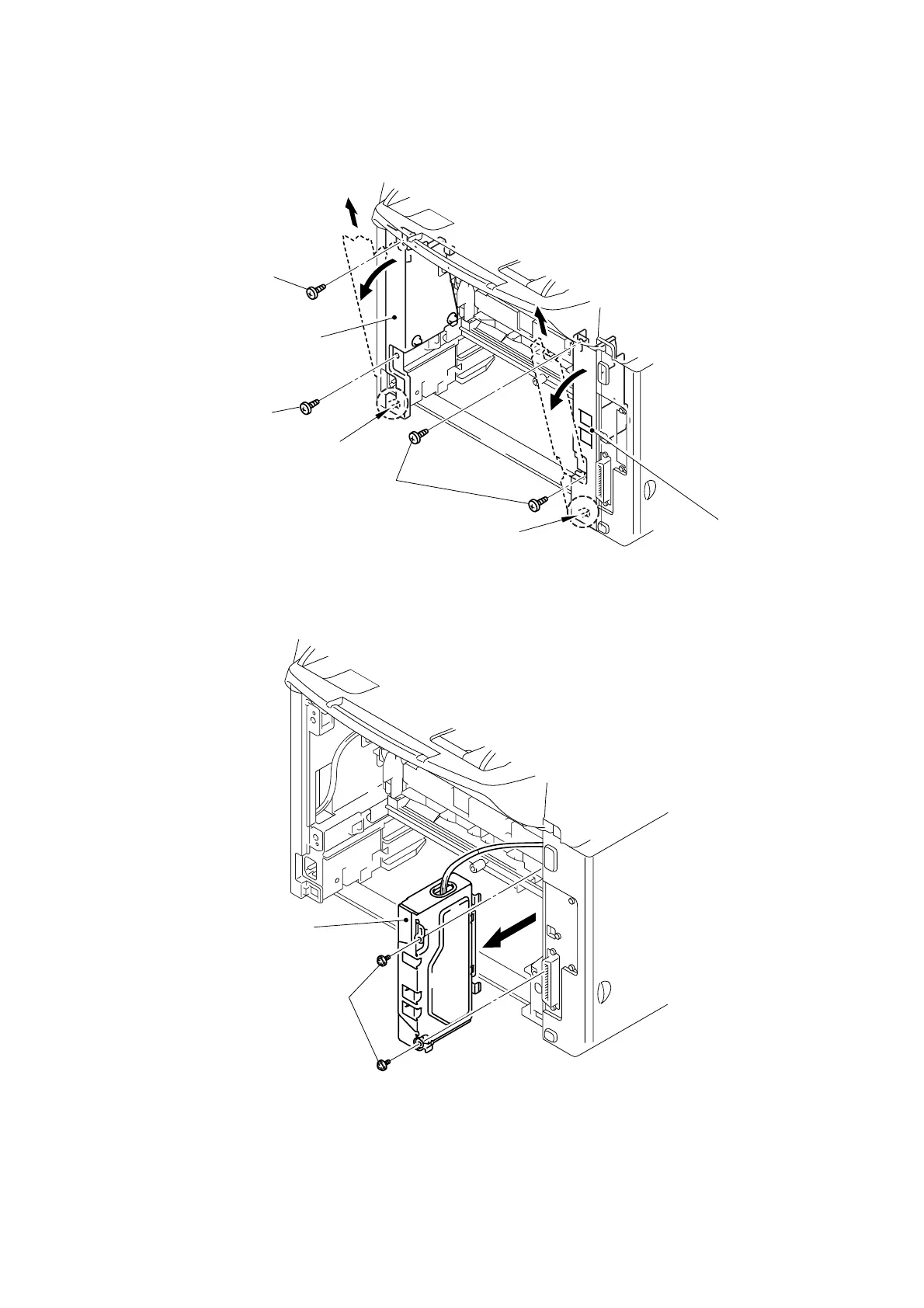

5) Remove the two bind B M4x12 Taptite screws, and then remove the rear cover L.
6) Remove the two bind B M4x12 Taptite screws, and then remove the rear cover R.
Fig.5-17
7) Remove the two cup S M3x6 Taptite screws, and then remove the NCU unit.
Fig.5-18
Taptite, bind B M4x12
Rear cover R
Rear cover L
Hook
Taptite, bind B M4x12
Taptite, cup S M3x6
NCU unit
Hook
Taptite, bind B M4x12
