8) Disconnect the heater harness and thermistor harness.
9) Remove the bind B M4x12 Taptite screw and the shoulder screw, and then remove the
fixing unit.

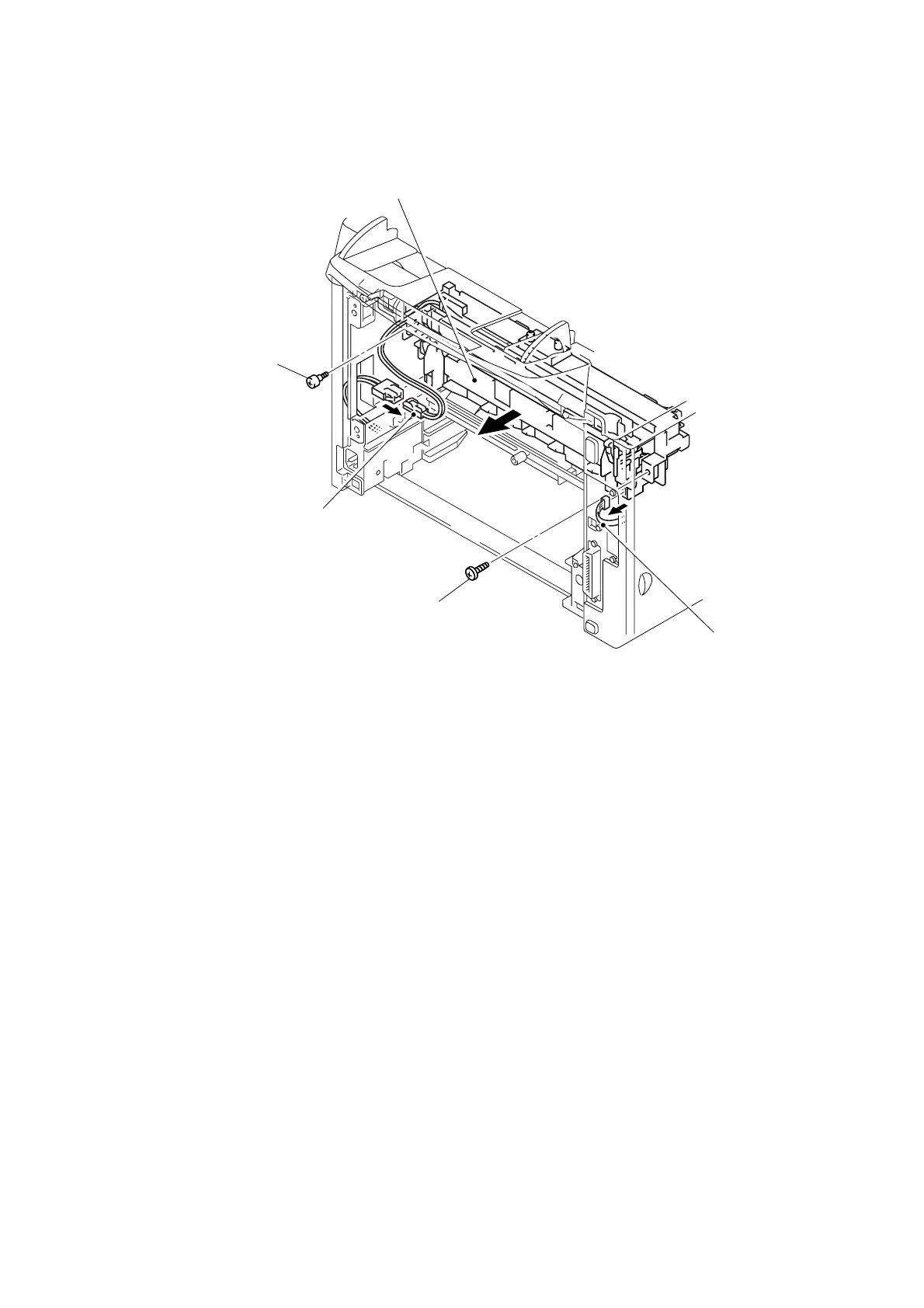

Fig.5-19
Shoulder screw
Heater harness
Taptite, bind B M4x12
Thermistor harness
Fixing unit
