CHAPTER 5 PERIODIC MAINTENANCE
5-14

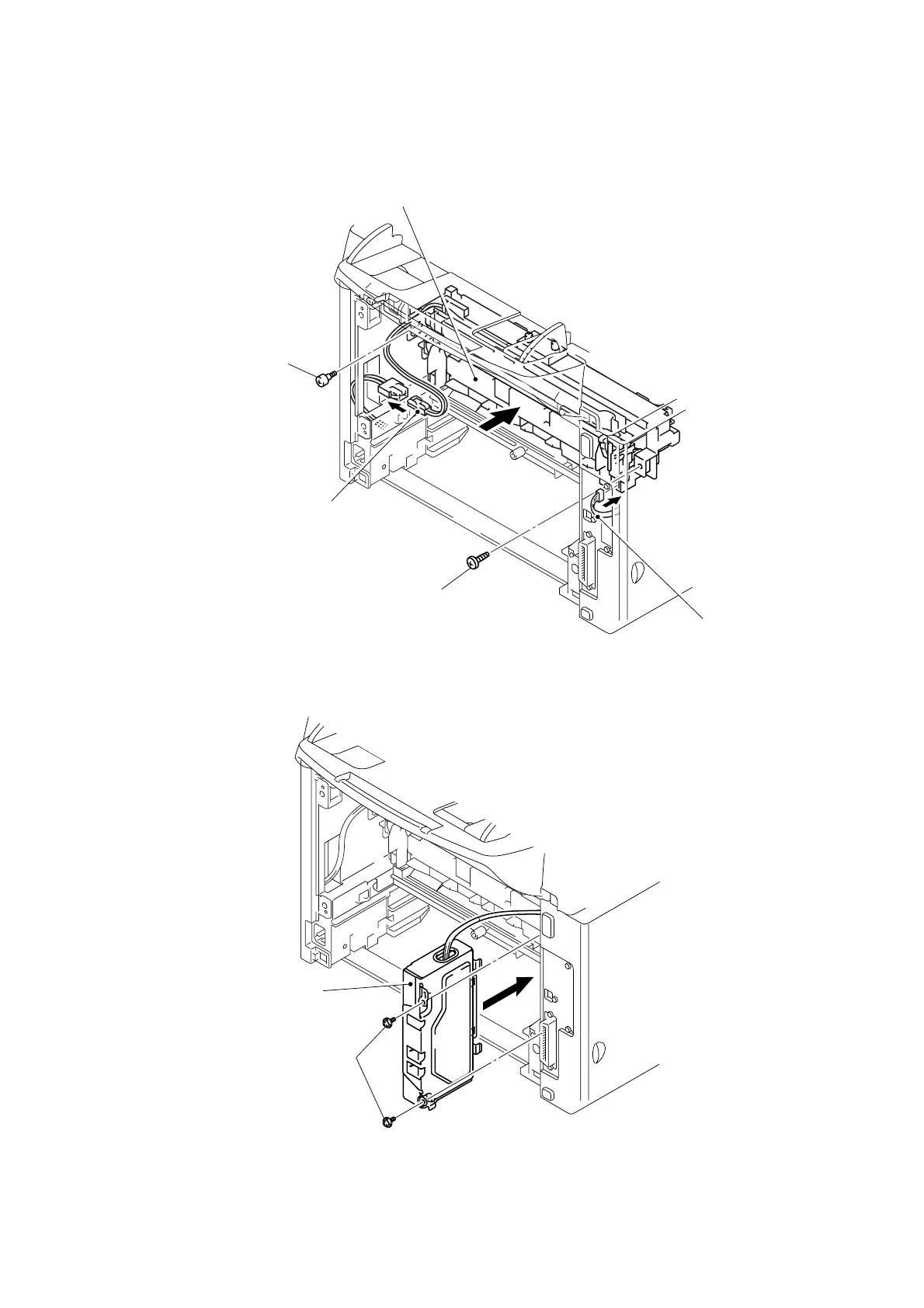

<Assembly Procedure>
(1) Mount the fixing unit using the bind B M4x12 Taptite screw and the shoulder screw.
(2) Insert the heater harness and the thermistor harness.
Fig.5-20
(3) Mount the NCU unit using the two cup S M3x6 Taptite screws.
Fig.5-21
Shoulder screw
Heater harness
Taptite, bind B M4x12
Thermistor harness
Fixing unit
Taptite, cup S M3x6
NCU unit
