5-15

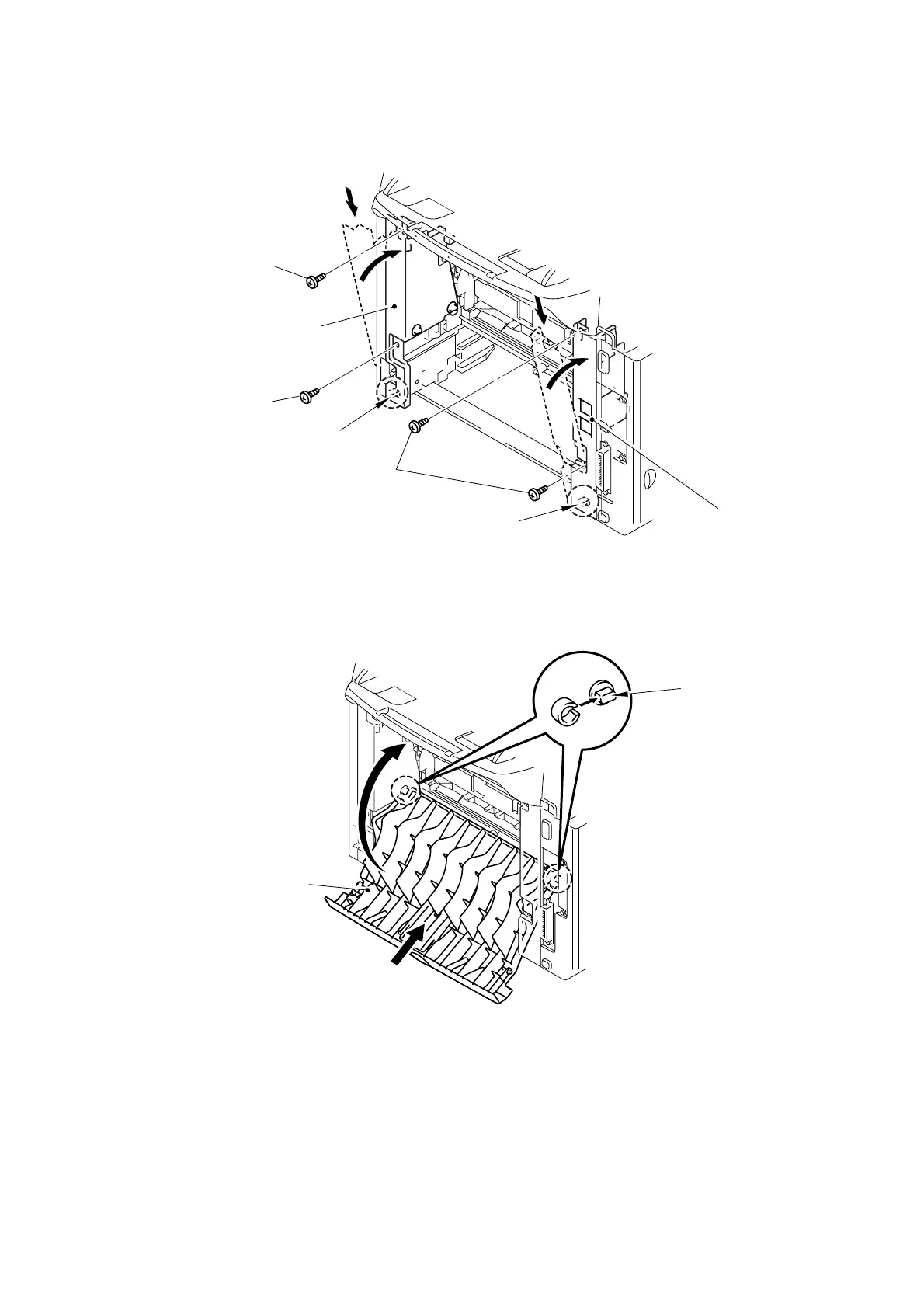

(4) Mount the rear cover L using the two bind B M4x12 Taptite screws.
(5) Mount the rear cover R using the two bind B M4x12 Taptite screws.
Fig.5-22
(6) Mount the outer chute.
Fig.5-23
Taptite, bind B M4x12
Rear cover R
Rear cover L
Hook
Taptite, bind B M4x12
Hook
Taptite, bind B M4x12
Hook
Outer chute
