Brother MFC-8220 - Page 84

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-6
(5) Remove the two cup B M3x10 Taptite screws, and then remove the paper tray cover.

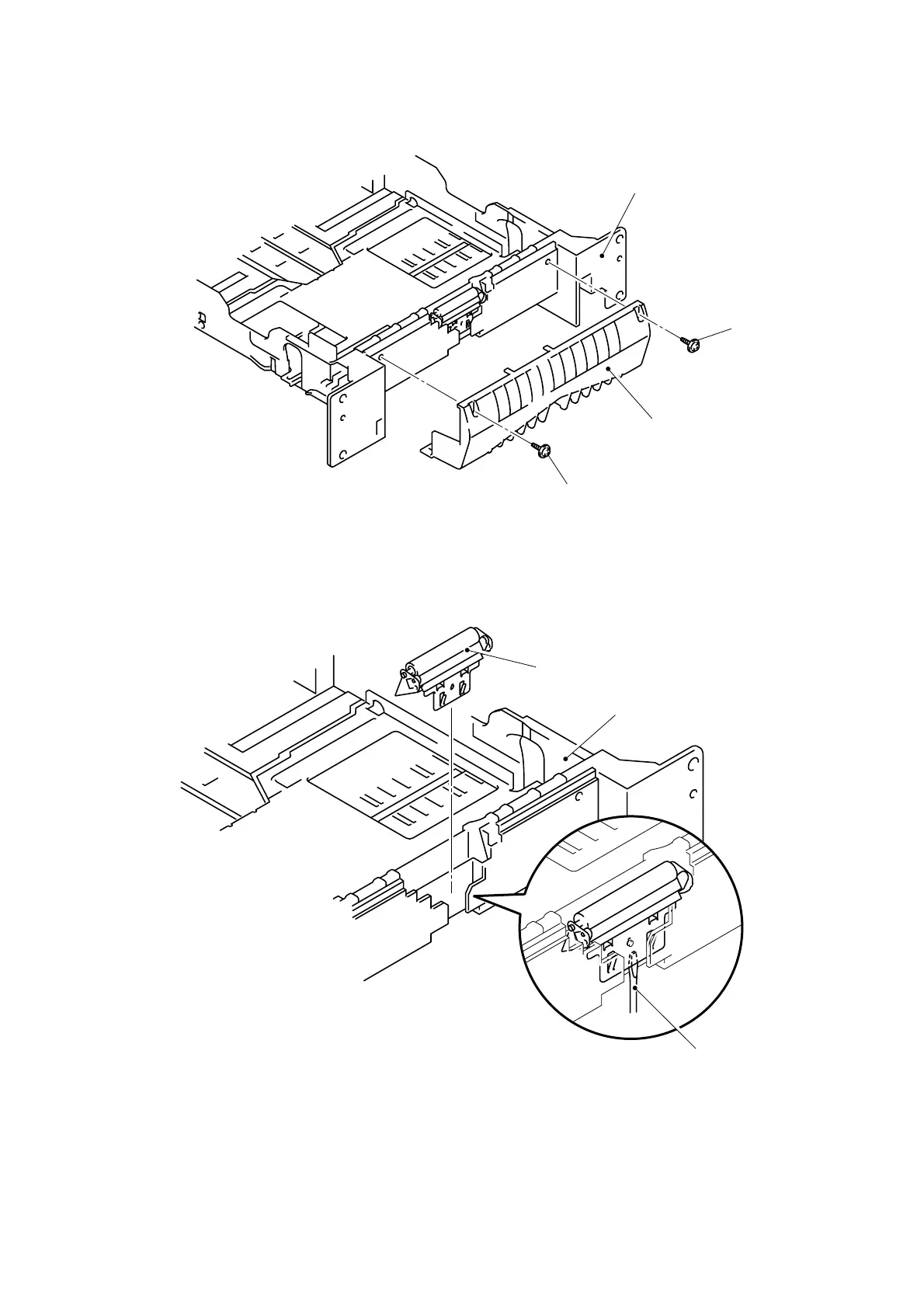

Fig. 4-7
(6) Remove the pressure roller holder ASSY.
Fig. 4-8
Paper tray
Taptite, cup
B M3x10
Paper tray cover
Flat screwdriver
Pressure roller holder ASSY
Paper tray
Taptite, cup B M3x10
