MFC-8220
SERVICE MANUAL
4-7

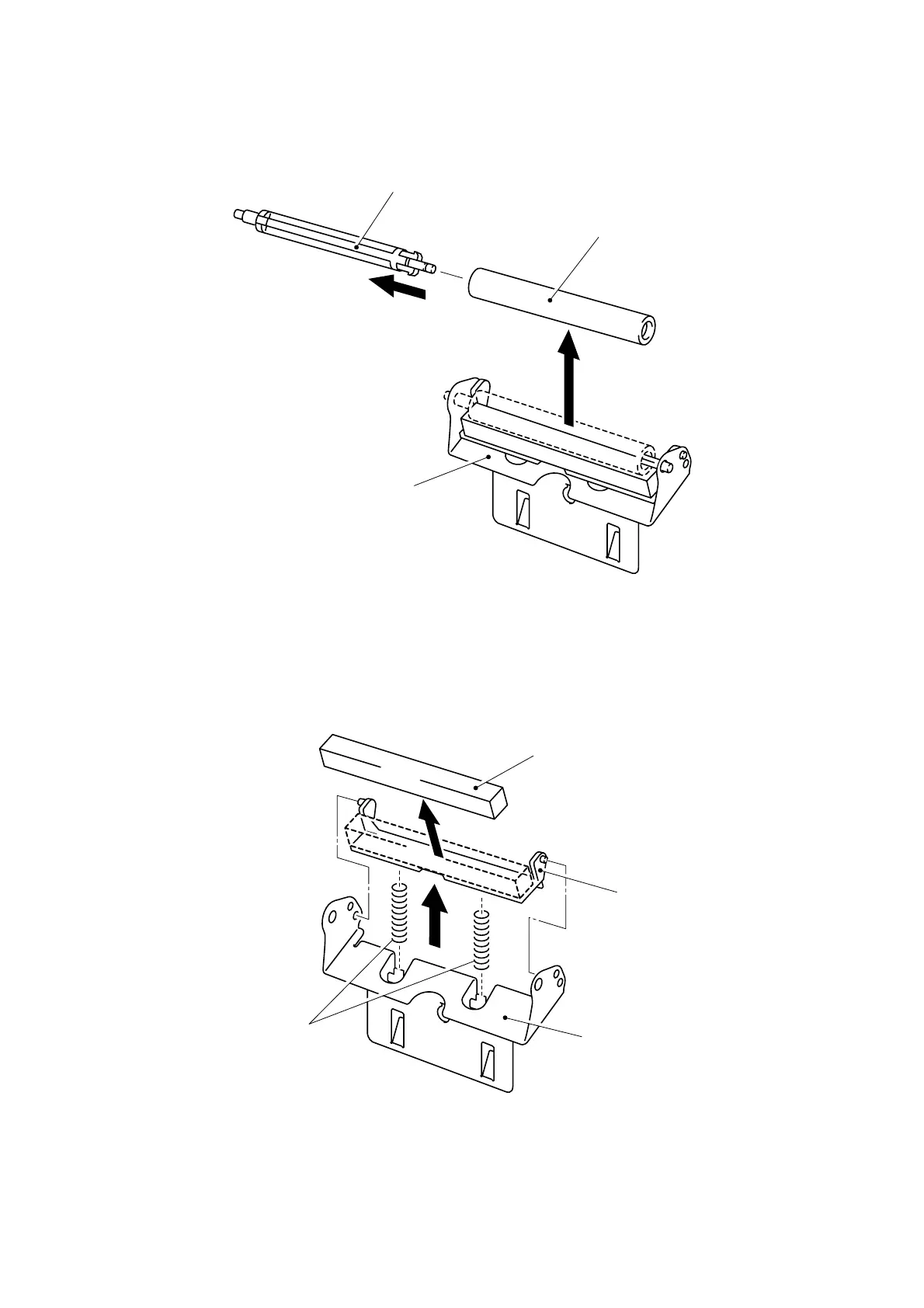

(7) Remove the pressure roller collar.
(8) Remove the pressure roller shaft.
Fig. 4-9
(9) Remove the scratch spongy holder ASSY from the pressure roller holder ASSY.
(10) Remove the two scratch spongy springs.
(11) Remove the scratch spongy from the scratch spongy holder ASSY.
Fig. 4-10
Pressure roller shaft
Pressure roller holder ASSY
Scratch spongy
Scratch spongy holder ASSY
Pressure roller holder ASSY
Scratch spongy springs
1
2
Pressure roller collar
