MFC-8220
SERVICE MANUAL
4-17

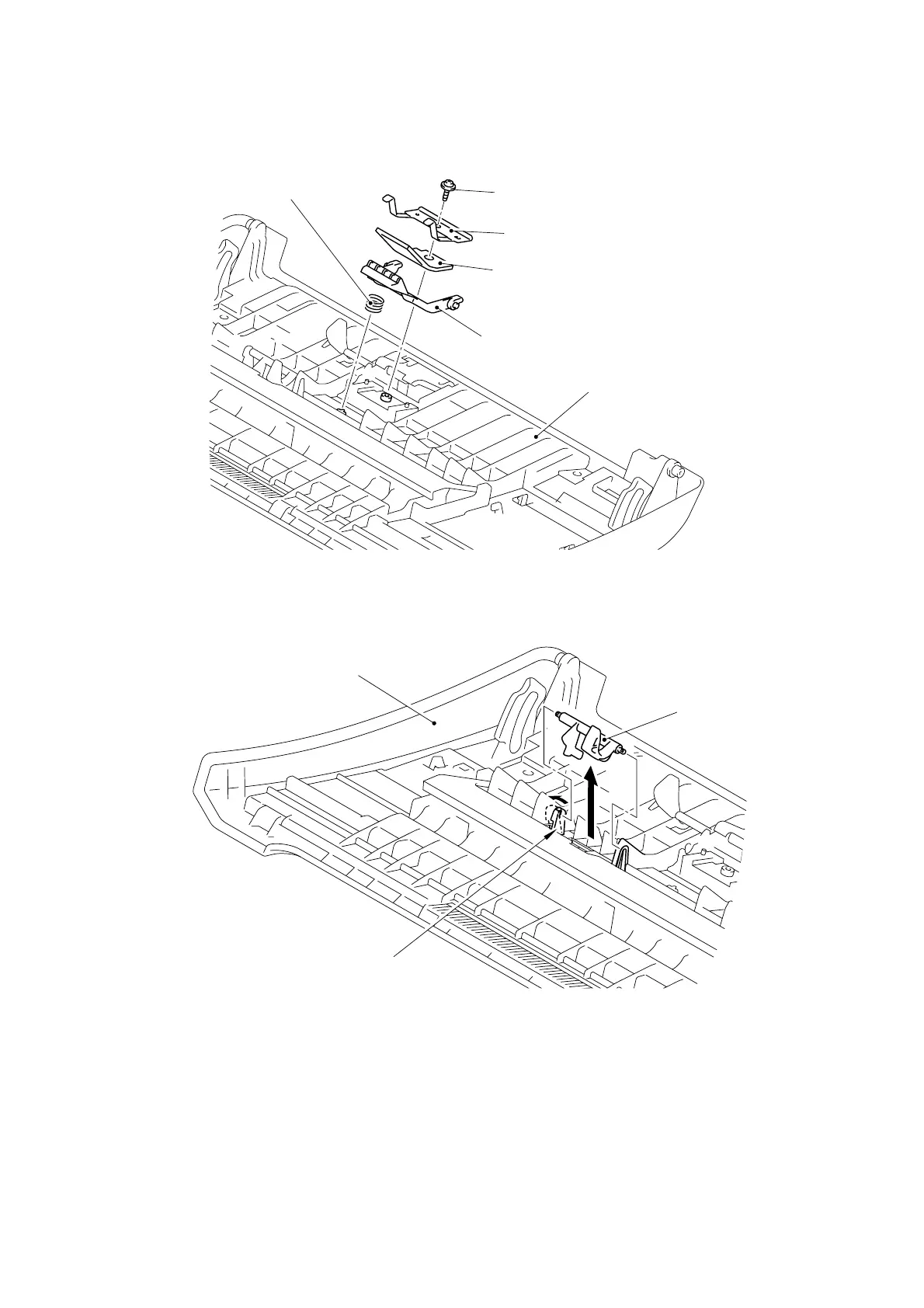

(3) Remove the cup B M3x6 Taptite screw, and then remove the spring plate, ADF front.
(4) Remove the separation rubber, rubber holder and rubber holder spring.
Fig. 4-27
(5) Remove the actuator R.
Fig. 4-28
Control panel ASSY
Taptite, cup B M3x6
Spring plate ADF, front
Separation rubber
Rubber holder
Rubber holder spring
Control panel ASSY
A
ctuator R
Hook
