Brother MFC-8220 - Page 96

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-18

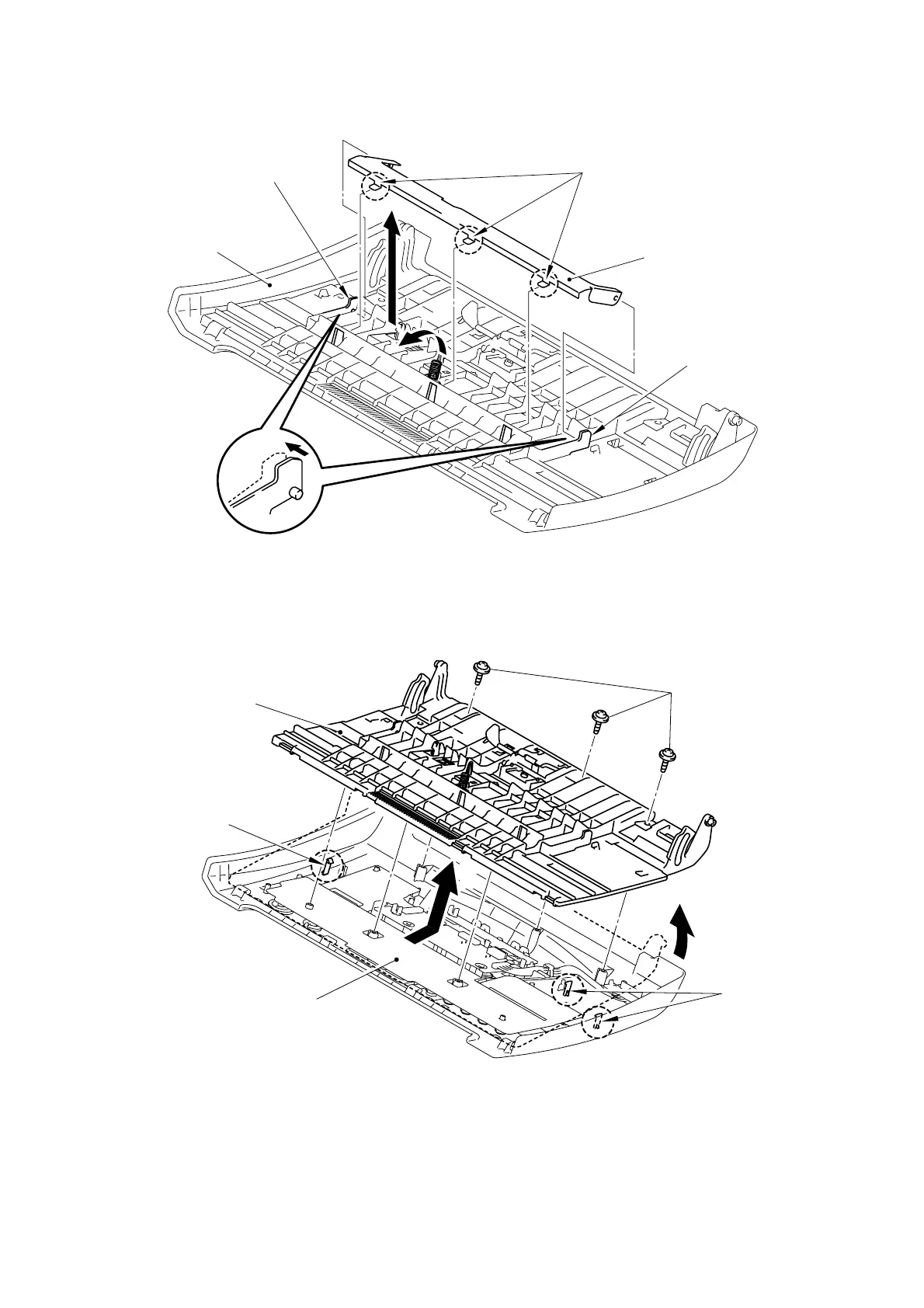

(6) Open the right and left bosses, and then remove the document hold ASSY.
Fig. 4-29
(7) Remove the three cup B M3x8 Taptite screws.
(8) Release the three hooks, and then remove the paper feed chute.
Fig. 4-30
Control panel ASSY
Hooks
Document hold ASSY
Boss
Boss
Taptite, cup B M3x8
Paper feed chute
Hooks
Hook
1
2
Control panel ASSY
