Canon imagePROGRAF IPF720 User Manual

Handling rolls
Mac OS X
1. Choose Print in the application menu.

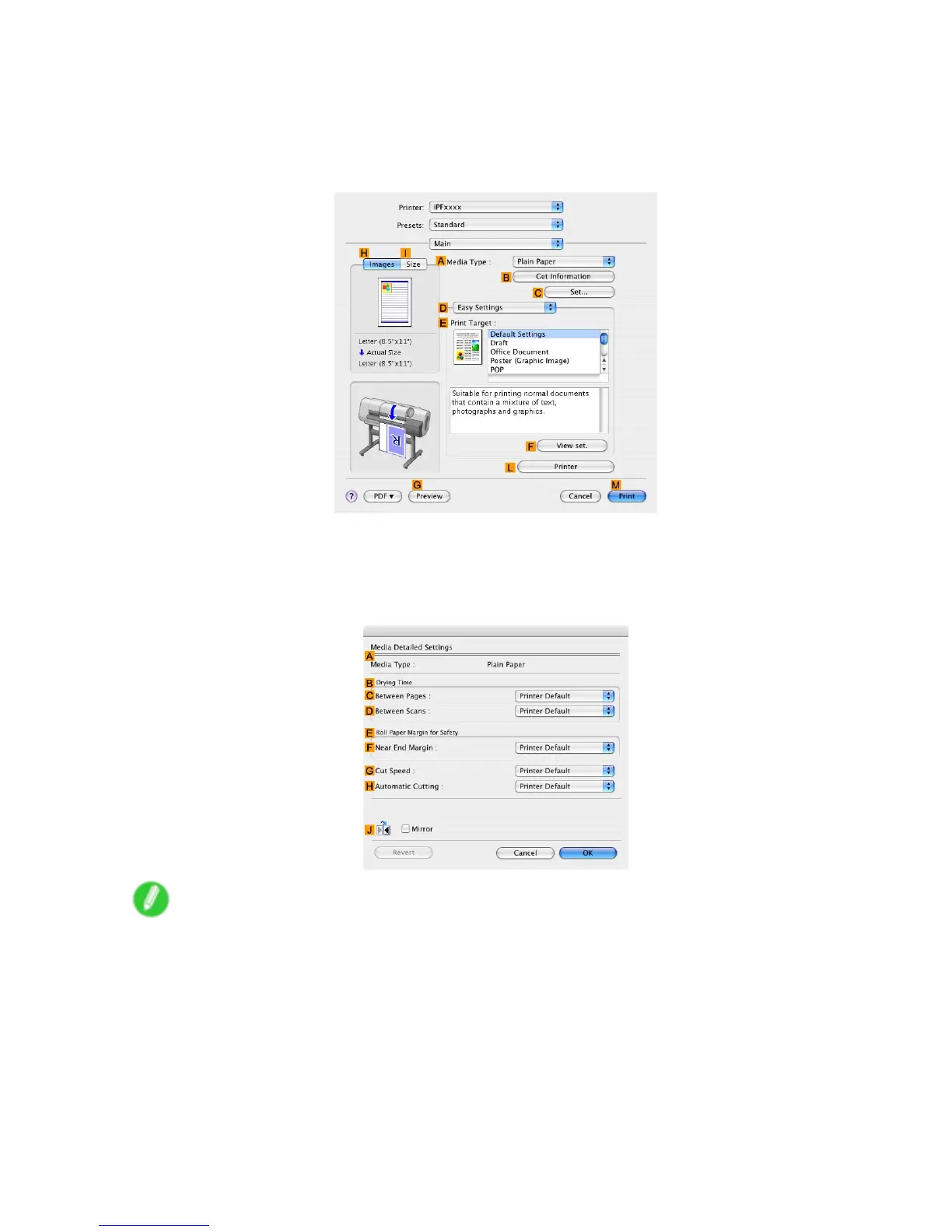

2. Select the Main pane and click C Settings in A Media T ype .
3. In the Paper Detailed Settings dialog box displayed next, select the desired settings values in
C Between Pages and D Between Scans in B Drying T ime , and then click OK .
( → P .390)
Note
• By factory default, Drying T ime is deactivated ( Off ) for all paper types.
• T o have the printer wait for ink to dry immediately after printing without releasing paper , set Cutting
Mode to Eject in the printer menu.
( → P .122 )
Handling Paper 121

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
