Canon imagePROGRAF IPF720 User Manual

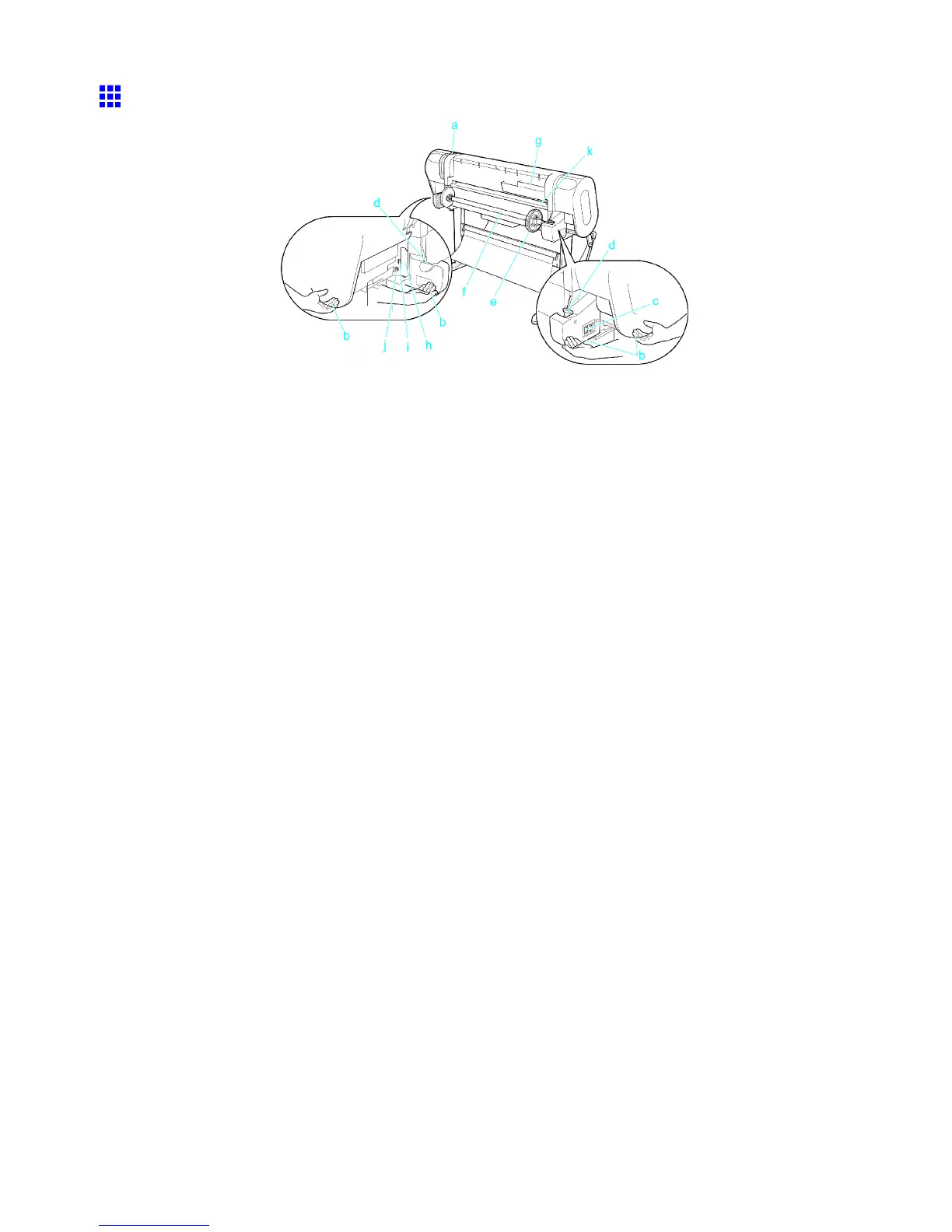

Printer parts
Back
a. Release Lever
Releases the Paper Retainer . Push this release lever back before loading paper or cleaning inside
the printer .
b. Carrying Handles (Four Positions)
When carrying the printer , hold it by these handles under both sides.
c. Power Supply Connector
Connect the power cord to this connector .
d. Roll Holder Slot
Slide the Roll Holder into this guide slot.
e. Holder Stopper
Secure the roll on the Roll Holder with this part.
f. Roll Holder
Load the roll on this holder .
g. Accessory Pocket
Holds printer manuals, assembly tools, and other items.
h. Expansion Board Slots
Install an IEEE 1394 (FireWire) expansion board, as desired.
i. Ethernet Port
Connect an Ethernet cable to this port. The lamp is lit if the Ethernet cable is connected correctly
and communication is possible between the computer and printer .
j. USB Port
Connect a USB cable to this port. (Compatible with USB 2.0 High Speed mode)
k. Paper Feed Slot
When loading a roll, insert the edge of the roll here.
14 Printer Parts

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
