Printer parts

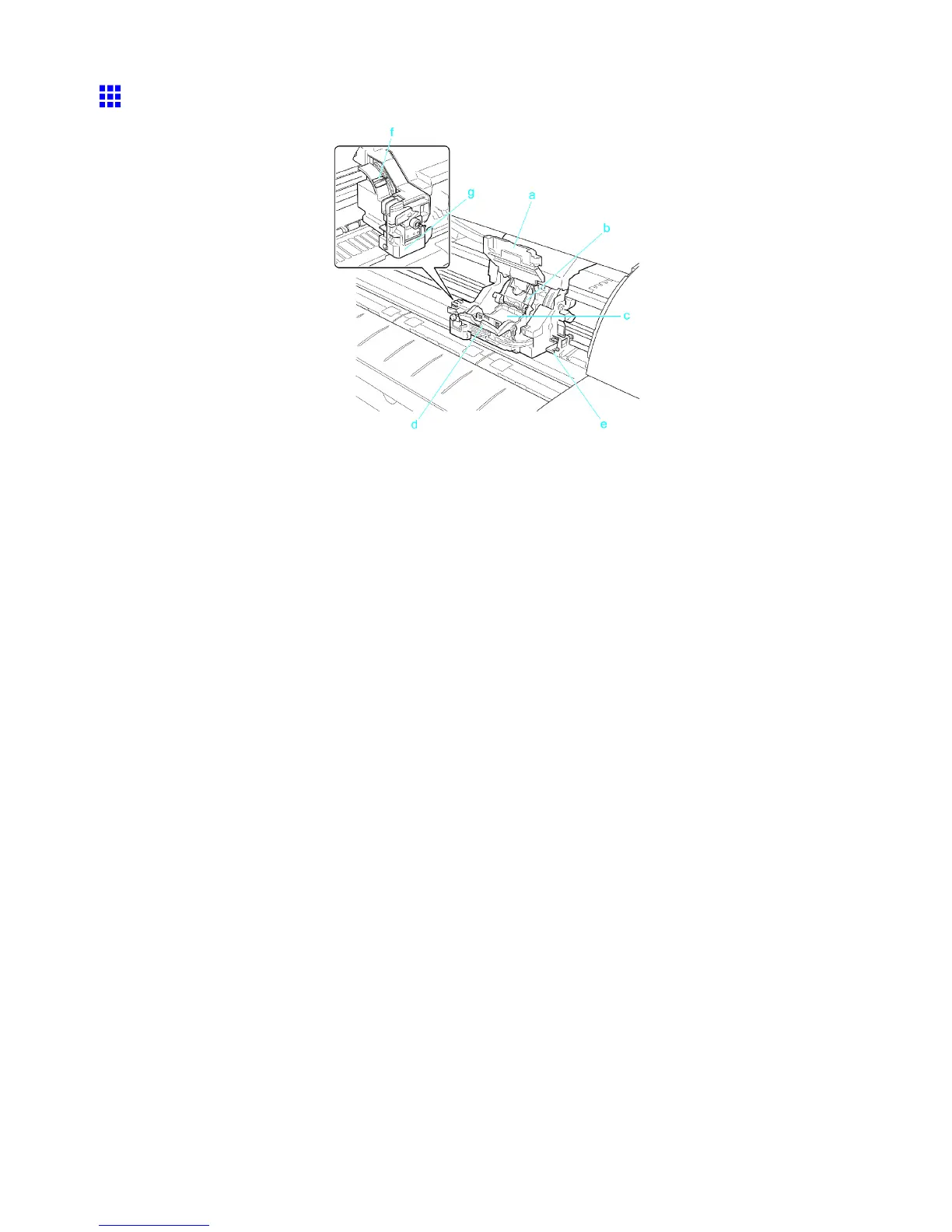

Carriage
a. Carriage Cover
Protects the Carriage .
b. Printhead Fixer Cover
Holds the Printhead in place.
c. Printhead
The printhead is equipped with ink nozzles. It is a key part of the printer .
d. Printhead Fixer Lever
Locks the Printhead Fixer Cover .
e. Shaft Cleaner
Prevents the Carriage Shaft from becoming dirty .
f. Angle Adjustment Lever
Use this lever to ne-tune the printer to correct misalignment of printed lines.
g. Cutter Unit
A round-bladed cutter for automatic paper cutting. The cutter blade is retracted inside when not
cutting.
