Canon imagePROGRAF IPF720 User Manual

Hard Disk

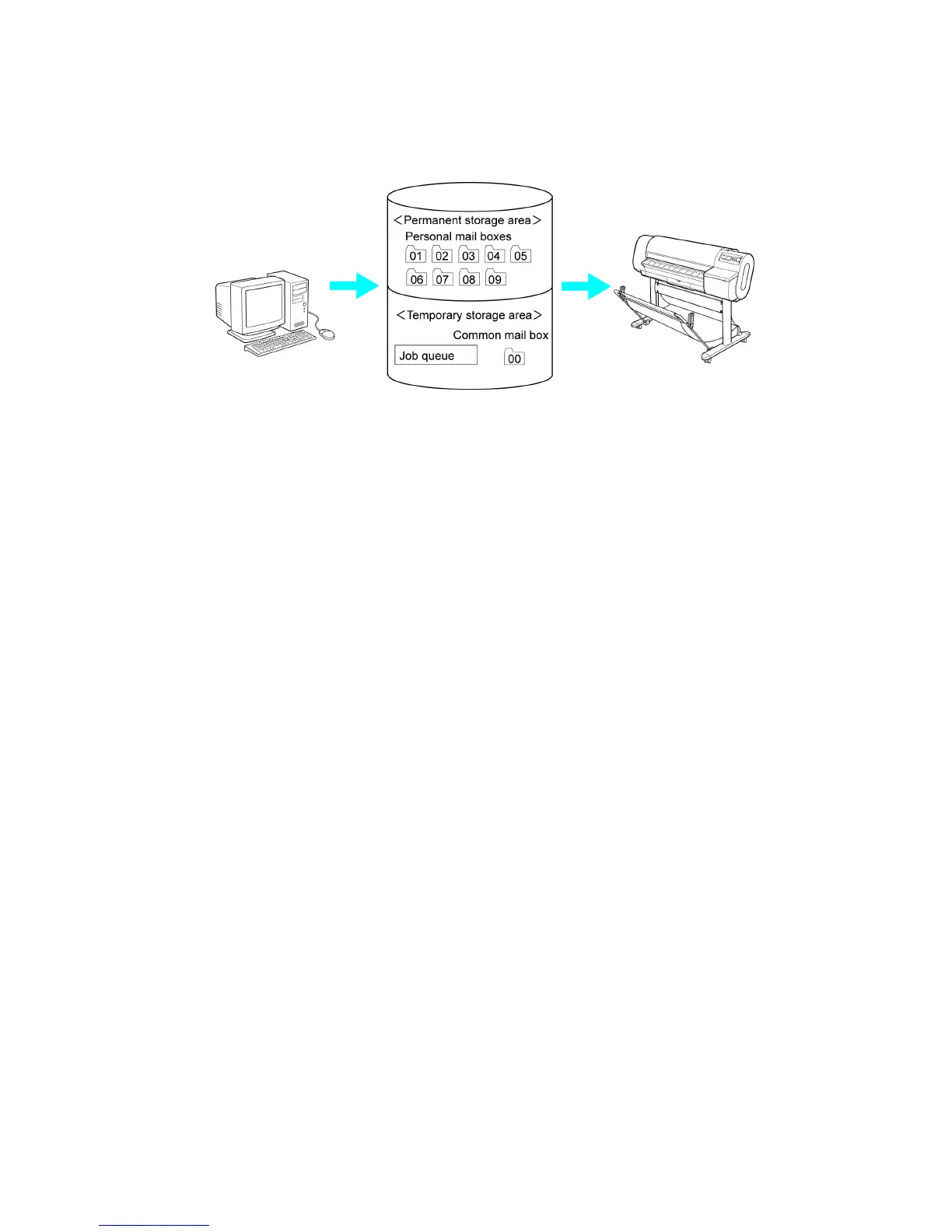

Storage destination
The storage area on the printer ’ s hard disk is divided into a temporary storage area and a permanent storage
area. Print jobs in the “job queue” or “Common Box” are saved in the temporary storage area. Jobs in
“Personal Boxes” are saved in the permanent storage area.
• Job queue
Print jobs in progress(*1) are temporarily saved in the job queue, a storage space where jobs are
saved in the order they will be printed.
Up to ten jobs can be stored in the queue. Subsequent jobs are treated as "standby" jobs, to be
processed when possible.
*1: Jobs that are being saved, received, processed, printed, or deleted, or jobs that have been
interrupted or are waiting to print
• Common Box
If you have selected Print in Output Method (in Windows) or Send job to (in Mac OS X) as the format
for print jobs sent from the computer , the jobs are saved in the common box.
There is one Common Box, numbered “00” . A password cannot be set for the Common Box.
Up to 100 print jobs can be saved here, but they will be deleted one after another starting with the
oldest job in the following situations.
• If there are more than 100 jobs in the Common Box and job queue combined
• If the temporary storage area becomes full during reception of print jobs for which you have
selected Print or Print (auto delete) in Output Method (in Windows) or Send job to (in Mac OS X)
• If there is not enough space in the temporary and permanent storage areas during reception of
print jobs for which you have selected Save in mail box in Output Method (in Windows) or
Send job to (in Mac OS X)
• Personal Boxes
Y ou can store jobs in Personal Boxes in either of the following ways.
• By moving a job stored in the Common Box into a Personal Box
• By selecting Save in mail box in Output Method (in Windows) or Send job to (in Mac OS X)
There are nine Personal Boxes, numbered “01” to “09” . Y ou can specify a name and password for
each Personal Box.
Up to 100 print jobs can be saved in all Personal Boxes combined.
Hard Disk 443

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
