Canon imagePROGRAF IPF720 User Manual

Control Panel
GL2 Settings
Setting Item Description, Instructions
Monochrome Print in monochrome.
Color (CAD) 1 Print in standard colors.
Color Mode
Color (CAD) 2 Print in brighter colors.
Print Quality Choose the print quality .
Input Resolution Choose the printer input resolution, 600dpi or 300dpi .
Media Source Choose the media source for HP-GL/2 printing.
Conserve Paper Conserves paper when printing.

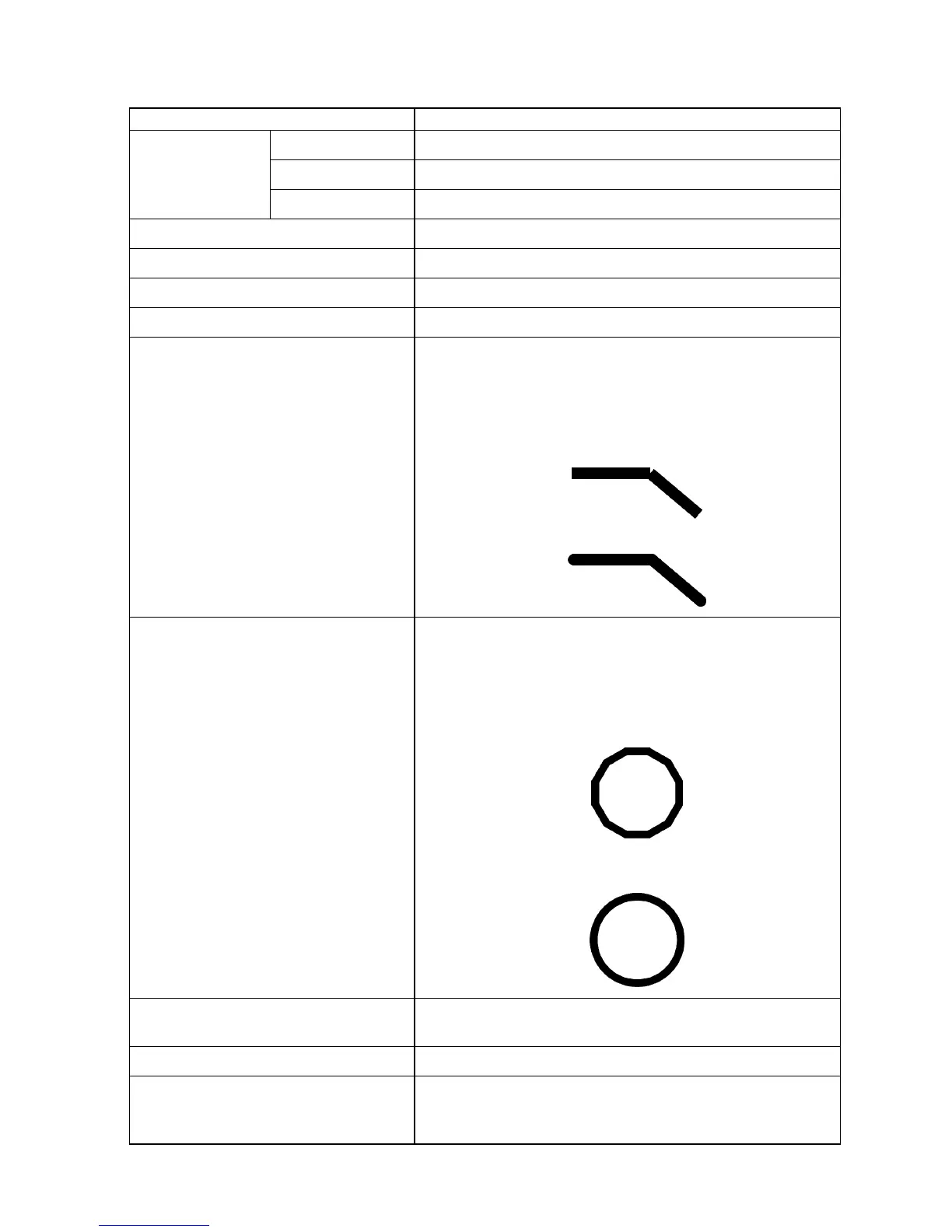

Line Cap Choose the shape of the end point, determined by Software
or Rounded .
• If you choose Software
Operation is determined by the application. If nothing is
specied by the application, the result is as shown in the
gure.
• If you choose Rounded
Smoothing Choose whether to print arcs as smooth curved lines or as
multiple connected line segments.
• If you choose Software
Operation is determined by the application. If nothing is
specied by the application, the result is as shown in the
gure.
Note: By default, this is a 72-sided gure
• If you choose Smooth
Line W idth Choose the width for printing lines if no width is specied in the
data. Dots in the line width are 300 dpi each.
ThickenFineLines Select On to print ne lines more distinctly .
AdjustFaintLines If ne lines are printed in colors that do not match the colors
of other shapes, selecting Off may help produce the expected
results. However , lines in some colors may appear broken.
Printer Parts 55

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
