Canon imagePROGRAF IPF720 User Manual

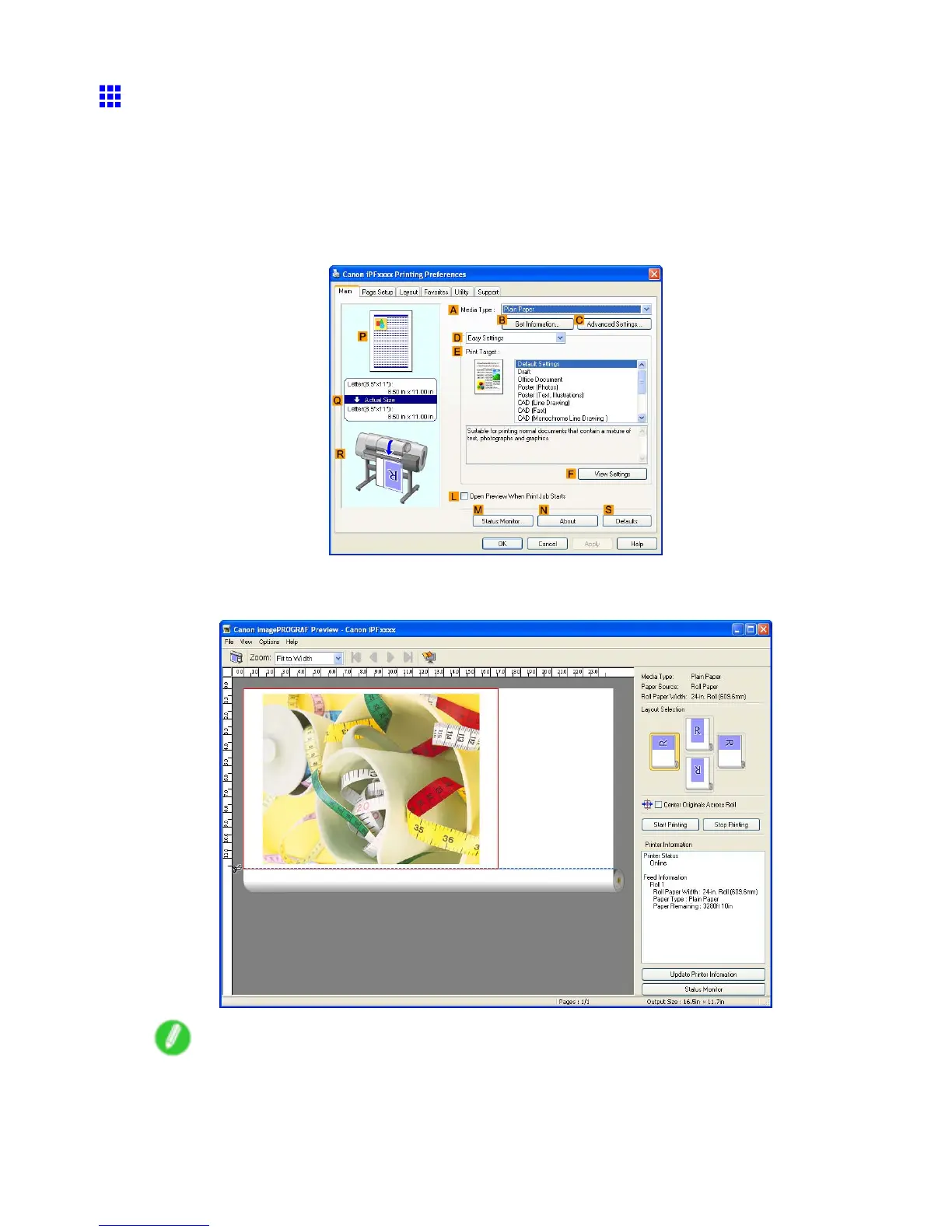

Checking Images Before Printing
Checking the Layout in a Preview Before Printing
(W indows)
This topic describes how to preview images of print jobs before actually printing them.
1. Choose Print in the application menu.
2. Select the printer in the dialog box, and then display the printer driver dialog box. ( → P .343)
3. Make sure the Main sheet is displayed.
4. Select the L Open Preview When Print Job Starts check box.
5. After you click OK , when you print a job, the imagePROGRAF Preview window will be displayed.
Note
• If PageComposer is running, access the Special Settings dialog box from the Layout sheet and
clear Enable Preview Switching .
Enhanced Printing Options 313

Canon imagePROGRAF IPF720 Specifications

Operating Environment

temperature range	59 – 86 F° (15 – 30 C°)
relative humidity	10 – 80% (No Condensation)
acoustic noise operation	52dB (A) or Less

Print Specifications

print resolution max	2400 x 1200 dpi
line accuracy	±0.1% or Less
minimum line weight	0.02mm

Ink and Print-Head

number of nozzles matte black	5, 120 Nozzles
number of nozzles other colors	2, 560 Nozzles per Color
droplet size	4 Picoliter

Media Handling

media width roll feed	10" – 36" (254mm – 914.4mm)
cut sheet width	8" – 36" (203.2mm – 914.4mm)
maximum print length roll feed	59' (18m)

Power

power supply	AC 100–240V (50-60Hz)
power consumption maximum	140W or Less
power off consumption	1W or Less

Weight and Dimensions

printer dimensions	43.1" x 59.3" x 34.3"
dimensions in mm	1507mm x 871mm x 1094mm
weight with stand	Approx. 141 lb (64kg)
